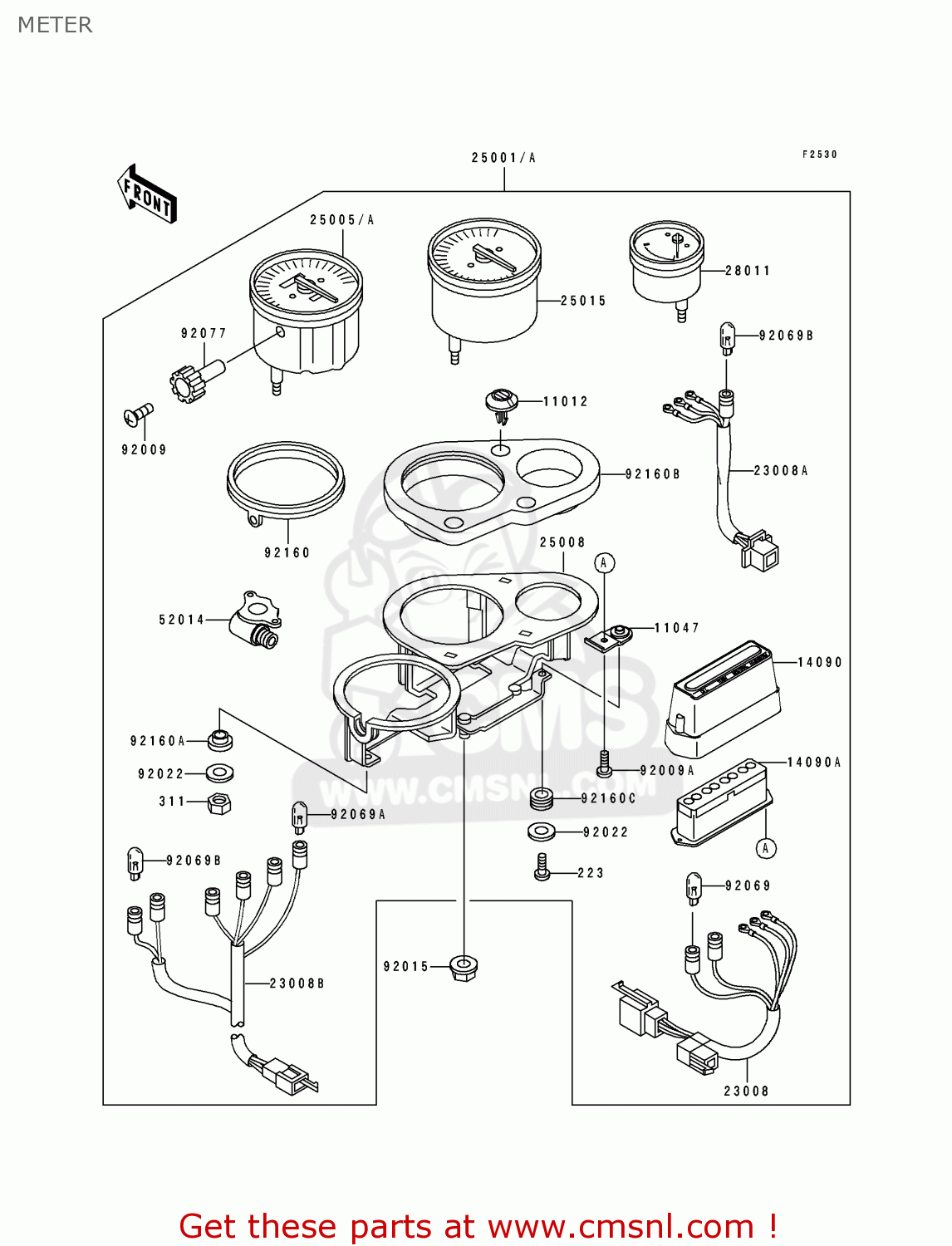

METER

ref

part #

description

quantity

223

223C0406
ref: 223

SCREW-PAN-WS-CROS,4X6

€ 2.50

311

311C0400
ref: 311

NUT-HEX

€ 0.50

11012

110121779
ref: 11012

CAP

€ 4.00

11047

110471557
ref: 11047

BRACKET,PILOT BOX

€ 10.00

14090

140901072
ref: 14090

COVER,PILOT BOX,UPP

€ 25.50

14090A

140901073
ref: 14090A

COVER,PILOT BOX,LWR

€ 30.00

23008

230081386
ref: 23008

SOCKET-ASSY,TACHOMETE

€ 45.00

23008A

230081388
ref: 23008A

SOCKET-ASSY,TEMP METE

€ 29.50

23008B

230081465
ref: 23008B

SOCKET-ASSY,SPEEDOMET

€ 75.00

25001

250011835
ref: 25001
CAUS

METER ASSEMBLY,MPH

€ 715.50

25001A

250011837
ref: 25001A
CN

METER-ASSY,KPH

€ 1,180.50

25005

250051471
ref: 25005
CAUS

SPEEDOMETER,MPH

€ 205.00

25005A

250051473
ref: 25005A
CN

SPEEDOMETER,KPH

€ 205.00

25008

250081175
ref: 25008

BRACKET-METER

€ 86.00

25015

250151300
ref: 25015

TACHOMETER,X1000R/MIN

€ 250.00

28011

280111120
ref: 28011

METER,TEMP

€ 182.50

52014

520141006
ref: 52014

ELBOW,SPEEDOMETER GEA

€ 35.00

92009

920091172
ref: 92009

SCREW,2X6,BLACK

€ 2.00

92009A

920091391
ref: 92009A

SCREW

€ 2.50

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92022

920221949
ref: 92022

WASHER,4.3X12.5X1

€ 2.00

92069

920691020
ref: 92069

BULB,12C3W T-7

€ 3.00

92069A

920691068
ref: 92069A

BULB,14V 3W

€ 2.50

92069B

920691070
ref: 92069B

BULB,12V 1.7W

€ 3.00

92077

920771073
ref: 92077

KNOB,METER

€ 4.00

92160

921601064
ref: 92160

DAMPER,SPEEDOMETER

€ 18.50

92160A

921601068
ref: 92160A

DAMPER

€ 4.50

92160B

921601274
ref: 92160B

DAMPER,TACHO&TEMP MET

€ 30.50

92160C

921601320
ref: 92160C

DAMPER,PILOT BOX

€ 2.50

all assemblies
