GEAR CHANGE MECHANISM

ZX750J2 ZXR750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

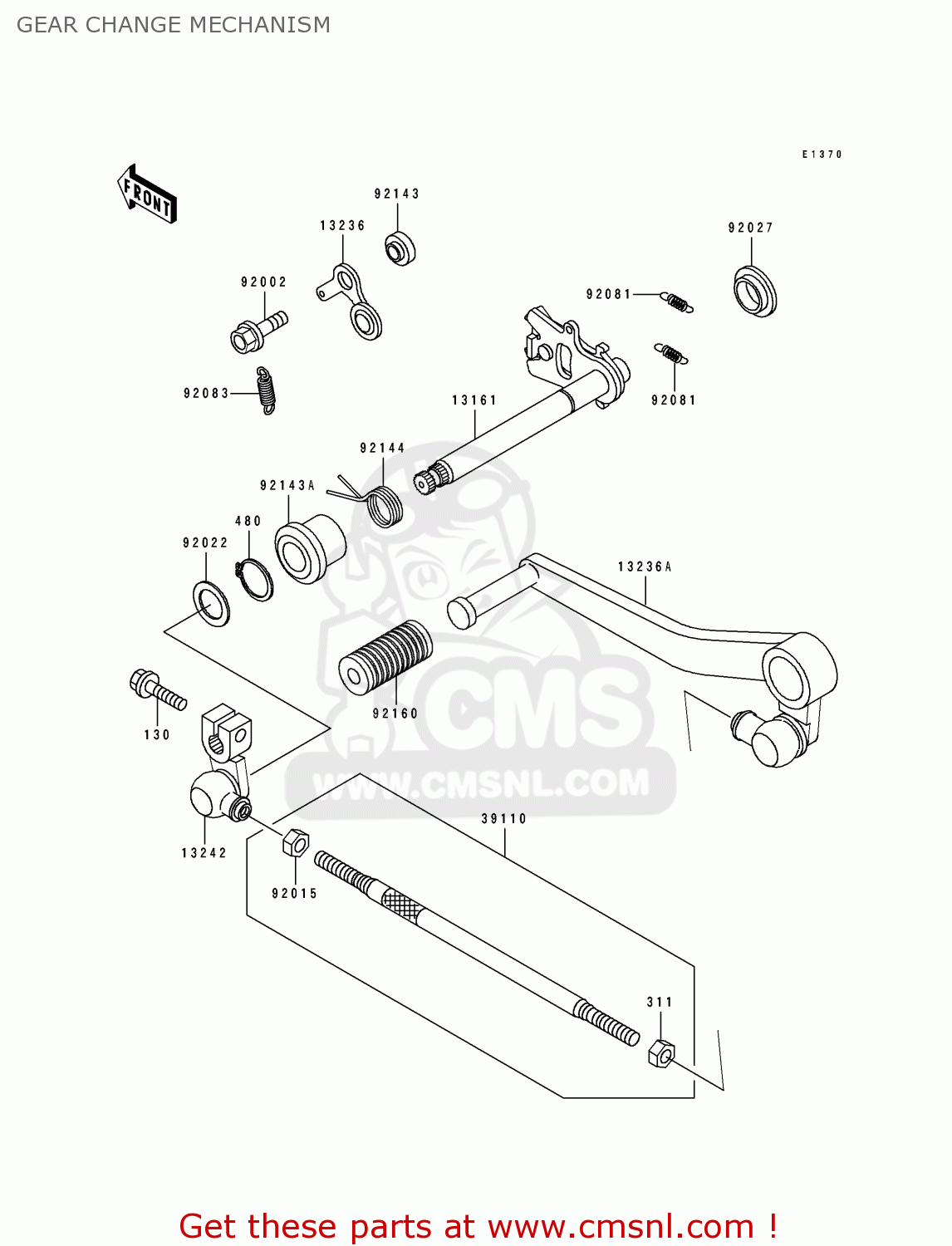

Gear change mechanism diagram ZX750J2 ZXR750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611182
ref: 13161

LEVER-COMP-CHANGE SHA

€ 42.00

13236

132361189
ref: 13236

LEVER-COMP,POSITION

€ 7.50

13236A

132361204
ref: 13236A

LEVER-COMP,CHANGE PED

€ 47.00

13242

132421278
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 26.00

39110

391101097
ref: 39110

ROD-ASSY-TIE

€ 18.50

92002

920021571
ref: 92002

BOLT,6X16

€ 4.00

92015

920151125
ref: 92015

NUT,6MM

€ 2.50

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92027

920271512
ref: 92027

COLLAR,CHANGE SHAFT,L

€ 8.00

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92083

92083012
ref: 92083

SPRING,CHNG DRUM LEV

€ 3.00

92143

921431055
ref: 92143

COLLAR

€ 4.50

92143A

921431498
ref: 92143A

COLLAR,RETURN SPRING

€ 7.00

92144

921441628
ref: 92144

SPRING,CHANGE SHAFT R

€ 6.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
