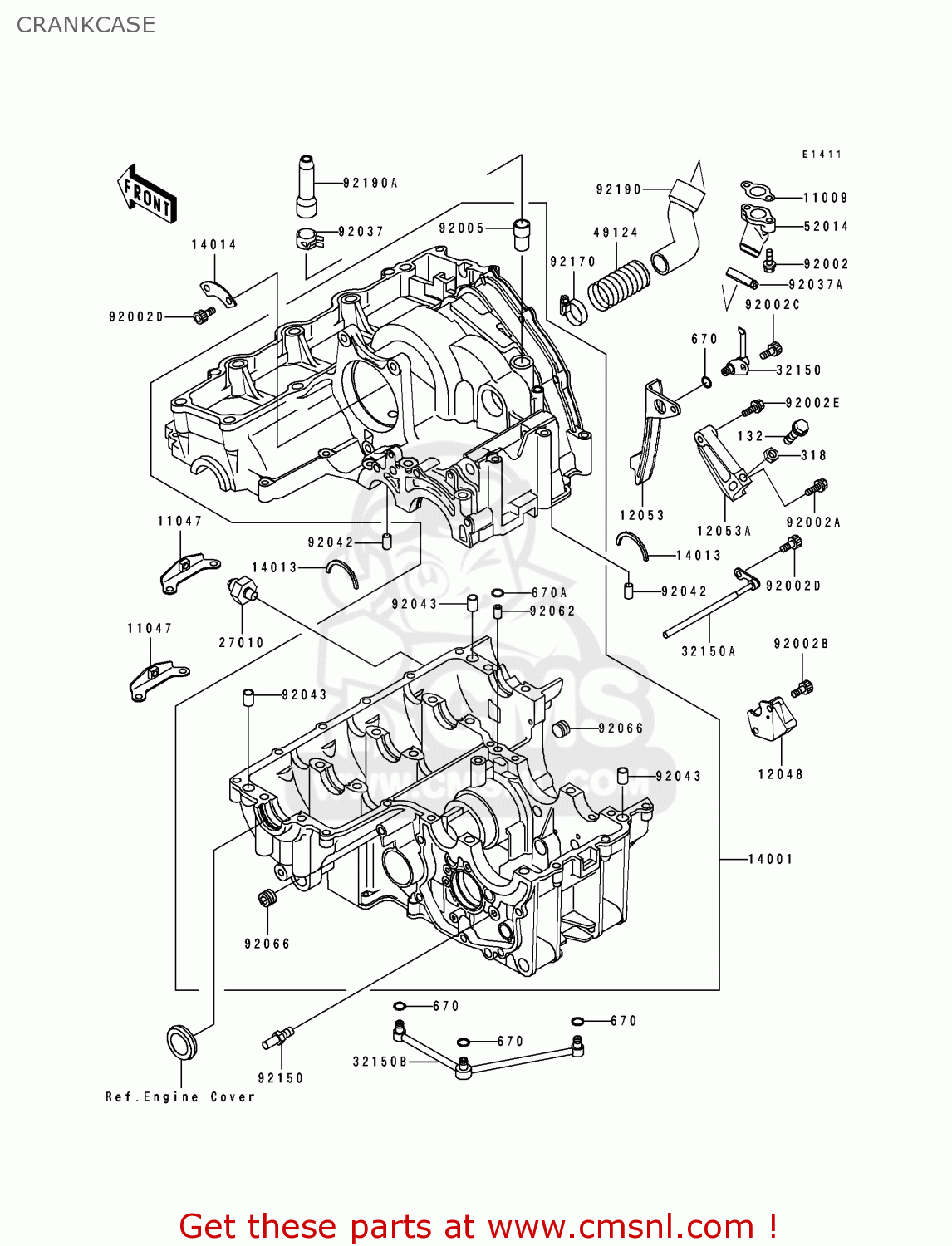

CRANKCASE

ref

part #

description

quantity

132

132G0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

670

670D1505
ref: 670

O RING

€ 2.50

670A

670D1508
ref: 670A

O RING,8MM

€ 2.50

11009

110091935
ref: 11009

GASKET,ELBOW (NAS)

€ 3.00

11047

110471236
ref: 11047

BRACKET,RADIATOR

€ 4.00

12048

120481109
ref: 12048

TENSIONER-ASSY

€ 124.00

12053

120531281
ref: 12053

GUIDE-CHAIN

€ 39.00

12053A

120531285
ref: 12053A

GUIDE-CHAIN

€ 39.00

14001

140011078
ref: 14001

SET-CRANKCASE

€ 1,909.50

14013

140131004
ref: 14013

RING-POSITION,CRANK

€ 3.00

14014

140141056
ref: 14014

PLATE-POSITION

€ 9.50

27010

270101155
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

32150

321501794
ref: 32150

PIPE

€ 34.00

32150A

321501795
ref: 32150A

PIPE

€ 35.50

32150B

321501796
ref: 32150B

PIPE

€ 45.50

49124

491241056
ref: 49124

SPRING-TUBE GUARD

€ 7.00

52014

520141069
ref: 52014

ELBOW

€ 25.00

92002

920021343
ref: 92002

BOLT,6X20

€ 4.00

92002A

920021582
ref: 92002A

BOLT,6X25

€ 3.00

92002B

920021696
ref: 92002B

BOLT,SOCKET,6X25

€ 1.50

92002C

920021778
ref: 92002C

BOLT,SOCKET,6X16

€ 3.00

92002D

920021796
ref: 92002D

BOLT,SOCKET,6X12

€ 3.00

92002E

920021797
ref: 92002E

BOLT,6X30

€ 3.50

92005

920051129
ref: 92005

FITTING,BREATHER

€ 10.50

92037

920371730
ref: 92037

CLAMP

€ 4.50

92037A

920371989
ref: 92037A

CLAMP

€ 13.00

92042

92042016
ref: 92042

PIN,DOWEL,6X16

€ 3.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92062

920621074
ref: 92062

NOZZLE

€ 6.50

92066

920661262
ref: 92066

PLUG

€ 2.50

92150

921501467
ref: 92150

BOLT,RETURN SPRING

€ 5.00

92170

921701033
ref: 92170

CLAMP,COOLING HOSE

€ 10.50

92190

921901244
ref: 92190

TUBE

€ 38.00

92190A

921901245
ref: 92190A

TUBE,BREATHER

€ 7.50
