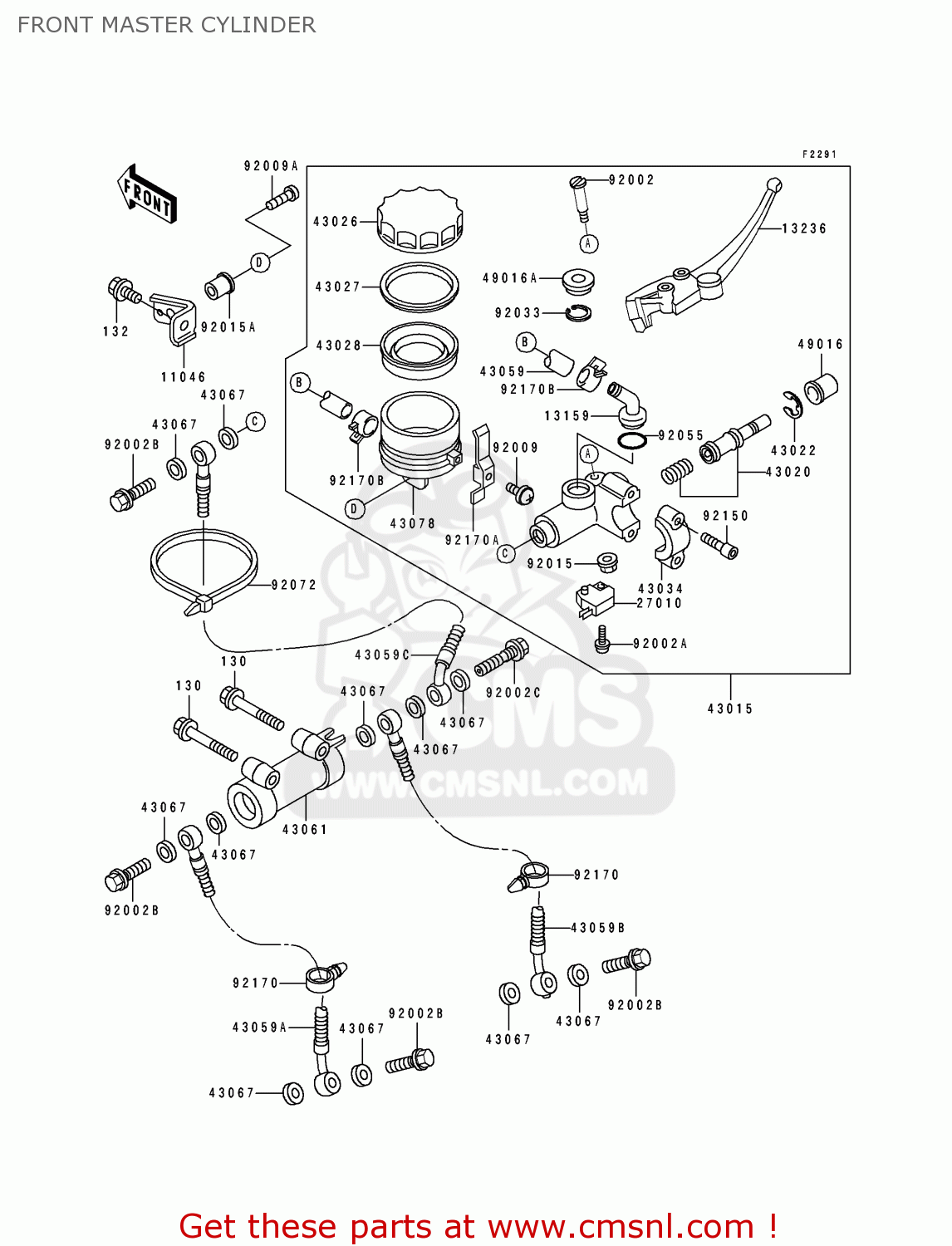

FRONT MASTER CYLINDER

ref

part #

description

quantity

130

130G0660
ref: 130

BOLT-FLANGED,6X60

€ 3.00

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

11046

110461691
ref: 11046

BRACKET,RESERVOIR TAN

€ 6.50

13159

131591061
ref: 13159

CONNECTOR

€ 9.00

13236

132361185
ref: 13236

LEVER-COMP,FRONT BRAK

€ 51.00

27010

270101170
ref: 27010

SWITCH,BRAKE

€ 26.00

43015

430151392
ref: 43015

CYLINDER-ASSY-MASTER,

€ 318.00

43020

430201054
ref: 43020

PISTON-COMP-BRAKE,FR

€ 47.50

43022

430221010
ref: 43022

STOPPER-BRAKE,PISTON

€ 3.00

43026

430261051
ref: 43026

CAP-BRAKE, RR

€ 25.00

43027

430271051
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281057
ref: 43028

DIAPHRAGM

€ 13.00

43034

430341016
ref: 43034

HOLDER-BRAKE,MASTER C

€ 13.50

43059

430591547
ref: 43059

HOSE-BRAKE,FR MASTER

€ 14.50

43059A

430591677
ref: 43059A

HOSE-BRAKE,FR,LH

€ 71.00

43059B

430591678
ref: 43059B

HOSE-BRAKE,FR,RH

€ 58.50

43059C

430591684
ref: 43059C

HOSE-BRAKE,FR

€ 65.00

43061

430611004
ref: 43061

JOINT-BRAKE

€ 51.50

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781099
ref: 43078

RESERVOIR

€ 23.50

49016

490161044
ref: 49016

COVER-SEAL,MASTER CYL

€ 7.00

49016A

490161147
ref: 49016A

COVER-SEAL

€ 5.00

92002

920021322
ref: 92002

BOLT,LEVER SET

€ 8.00

92002A

920021323
ref: 92002A

BOLT

€ 2.50

92002B

920021888
ref: 92002B

BOLT,OIL,L=23

€ 3.50

92002C

920021909
ref: 92002C

BOLT

€ 8.50

92009

920091570
ref: 92009

SCREW

€ 2.00

92009A

920091655
ref: 92009A

SCREW, 5X18 BLACK

€ 2.50

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92015A

920151757A
ref: 92015A

NUT,5MM

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92072

920721197
ref: 92072

BAND

€ 5.00

92150

921501328
ref: 92150

BOLT

€ 3.00

92170

921701067
ref: 92170

CLAMP,HOSE

€ 5.00

92170A

921701090
ref: 92170A

CLAMP

€ 10.00

92170B

921701091
ref: 92170B

CLAMP,HOSE

€ 3.00

all assemblies
