FENDER

ZX750J2 ZXR750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

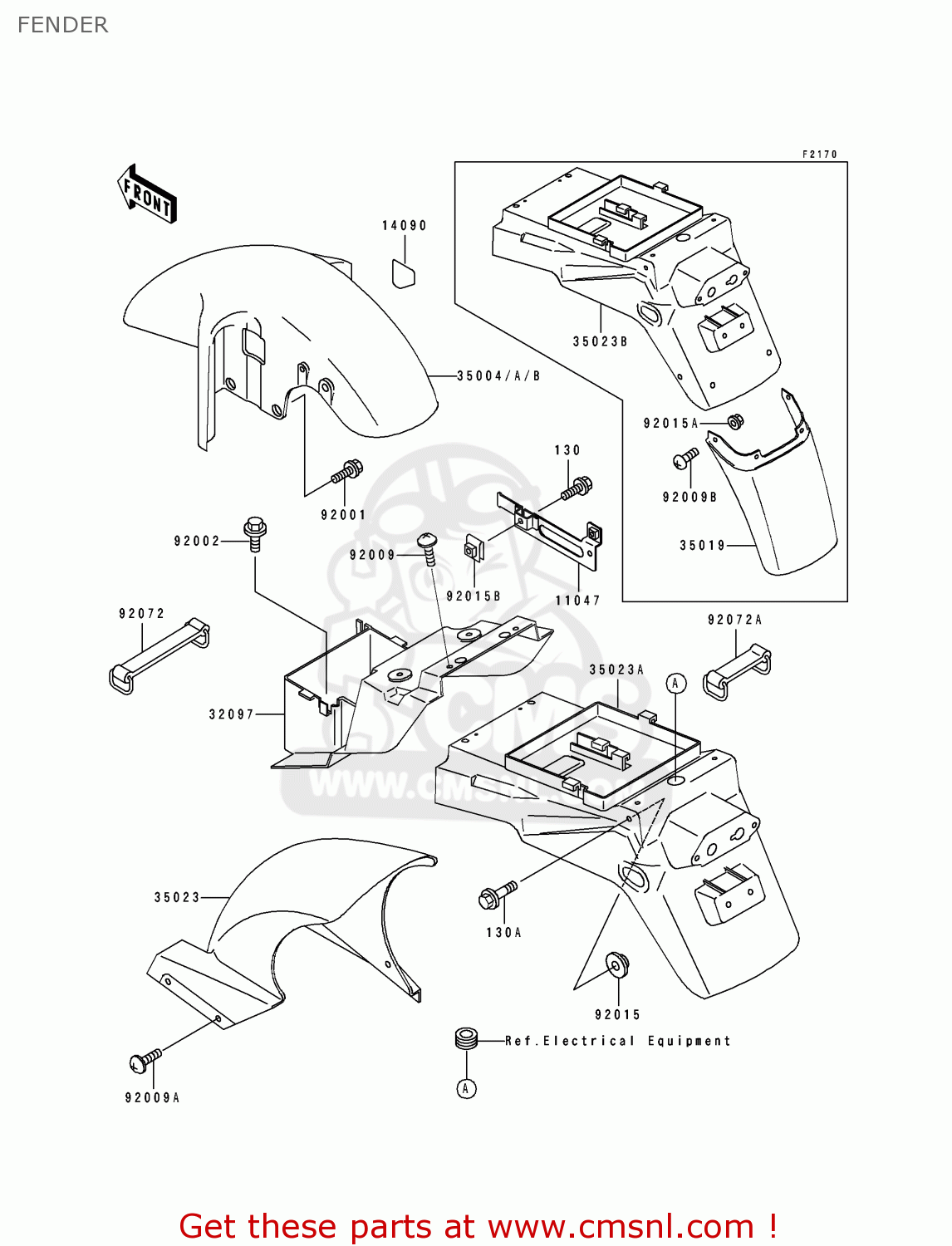

Fender diagram ZX750J2 ZXR750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

FENDER ZX750J2 ZXR750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
FENDER ZX750J2 ZXR750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
FENDER ZX750J2 ZXR750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
130A
130J0640
ref: 130A
BOLT-FLANGED,6X40,BLA
130J0640
€ 3.00
11047
110471272
ref: 11047
BRACKET,ELECTRIC BASE
110471272
€ 16.00
14090
140901151
ref: 14090
COVER,FRONT FENDER
€ 8.00
32097
320971140
ref: 32097
CASE-BATTERY
320971140
€ 62.50
35004
350041281H3
ref: 35004
FENDER-FRONT,C.W.RED
€ 143.00
35004A
350041281KH
ref: 35004A
EUFGNRUK
FENDER-FRONT,M.BLUE G
€ 143.00
35004B
3500412817F
ref: 35004B
FENDER-FRONT,L.GREEN
€ 162.50
35019
350191278
ref: 35019
FGGRNRSDST
FLAP,RR FENDER
350191278
€ 25.50
35023
350231309
ref: 35023
FENDER-REAR,FR
350231309
€ 78.50
35023A
350231314
ref: 35023A
AREUFRITSPUK
FENDER-REAR,RR
350231314
€ 142.50
35023B
350231321
ref: 35023B
FGGRNRSDST
FENDER-REAR,RR
€ 142.50
92001
920011763
ref: 92001
BOLT,W/SP,6X16
920011763
€ 3.00
92002
920021884
ref: 92002
BOLT,6X12
920021884
€ 2.50
92009
920091289
ref: 92009
SCREW,6X20
920091289
€ 2.50
92009A
920091402
ref: 92009A
SCREW,6X10
920091402
€ 1.50
92009B
920091455
ref: 92009B
FGGRNRSDST
SCREW
920091455
€ 1.50
92015
920151321
ref: 92015
NUT,6MM
920151321
€ 7.00
92015A
920151328
ref: 92015A
FGGRNRSDST
NUT,FLANGED,5MM
920151328
€ 2.00
92015B
920151531
ref: 92015B
NUT
920151531
€ 3.50
92072
92072006
ref: 92072
BAND,L=142.1
92072006
€ 8.00
92072A
920721294
ref: 92072A
BAND,TOOL,L=82
920721294
€ 10.00
