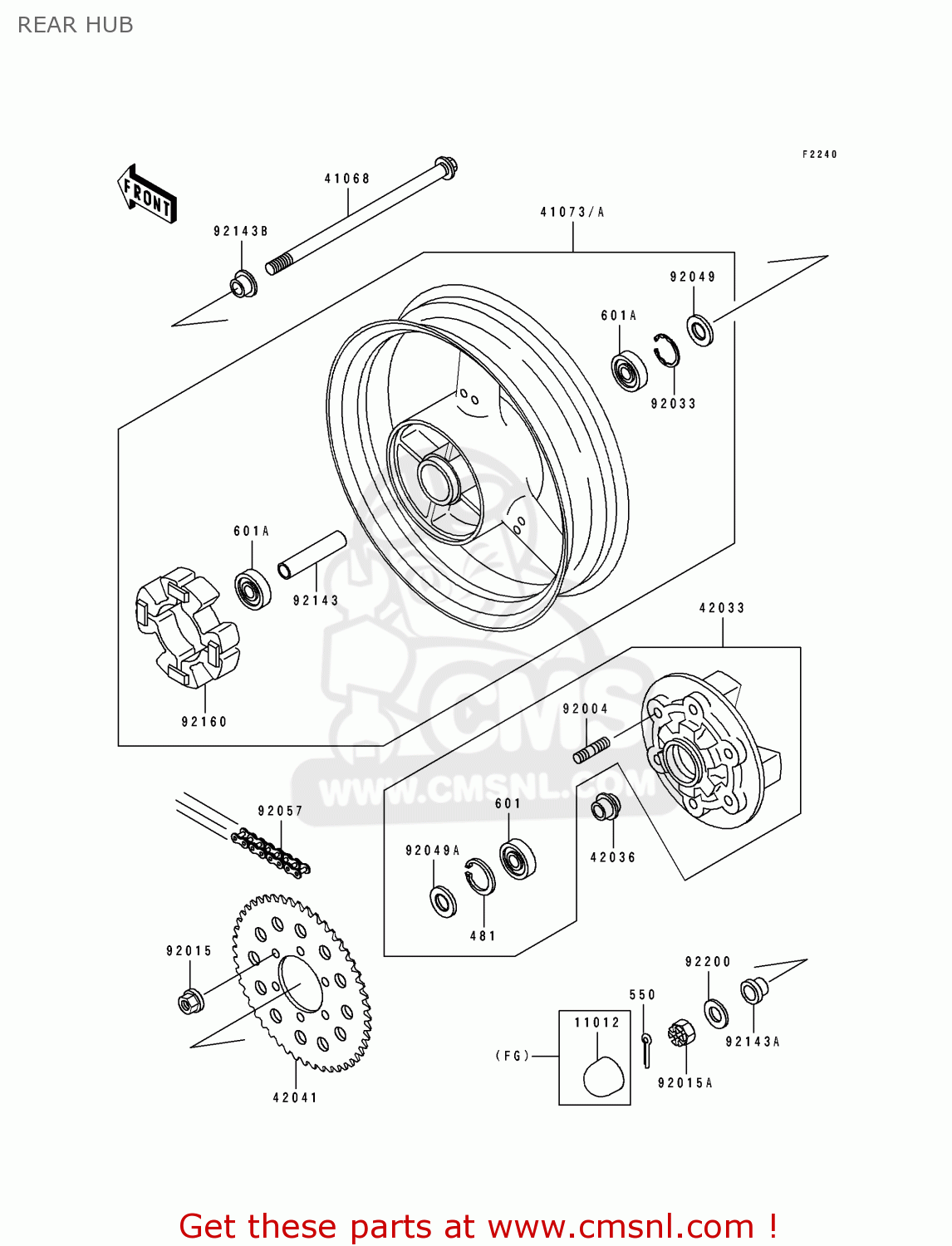

REAR HUB

ref

part #

description

quantity

481

481J5500
ref: 481

CIRCLIP

€ 6.50

550

550D4040
ref: 550

PIN-COTTER,4.0X40

€ 1.00

601

601B6006G
ref: 601

BEARING-BALL,#6006G

€ 27.50

601A

601B6205UG
ref: 601A

BEARING-BALL,#6205UG

€ 27.00

11012

110121785
ref: 11012
FG

CAP,AXLE NUT

€ 6.00

41068

410681326
ref: 41068

AXLE,RR

€ 73.00

41073

410731495CJ
ref: 41073

WHEEL-ASSY,RR,L.GREEN

€ 687.50

41073A

410731495DH
ref: 41073A

WHEEL-ASSY,RR,P.C.GRA

€ 734.50

42033

420331144
ref: 42033

COUPLING-ASSY,RR HUB

€ 208.50

42036

420361279
ref: 42036

SLEEVE,RR HUB,L=22

€ 21.50

42041

420411375
ref: 42041

SPROCKET-HUB,45T

€ 46.50

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92015A

920151844
ref: 92015A

NUT,CASTLE,24MM

€ 10.00

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92049

920491375
ref: 92049

SEAL-OIL,RR HUB

€ 13.00

92049A

920491376
ref: 92049A

SEAL-OIL,PJN 40 55 8

€ 12.50

92057

920571326
ref: 92057

CHAIN,DRIVE,EK50MV-XX

€ 145.00

92143

921431473
ref: 92143

COLLAR,RR HUB,L=133

€ 18.50

92143A

921431474
ref: 92143A

COLLAR,RR AXLE,LH,L=2

€ 23.00

92143B

921431475
ref: 92143B

COLLAR,RR AXLE,RH,L=2

€ 32.50

92160

921601203
ref: 92160

DAMPER,SHOCK,RR HUB

€ 60.00

92200

922001081
ref: 92200

WASHER,25.5X38X4.5

€ 3.50
