AIR FILTER

ZX750J1 ZXR750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

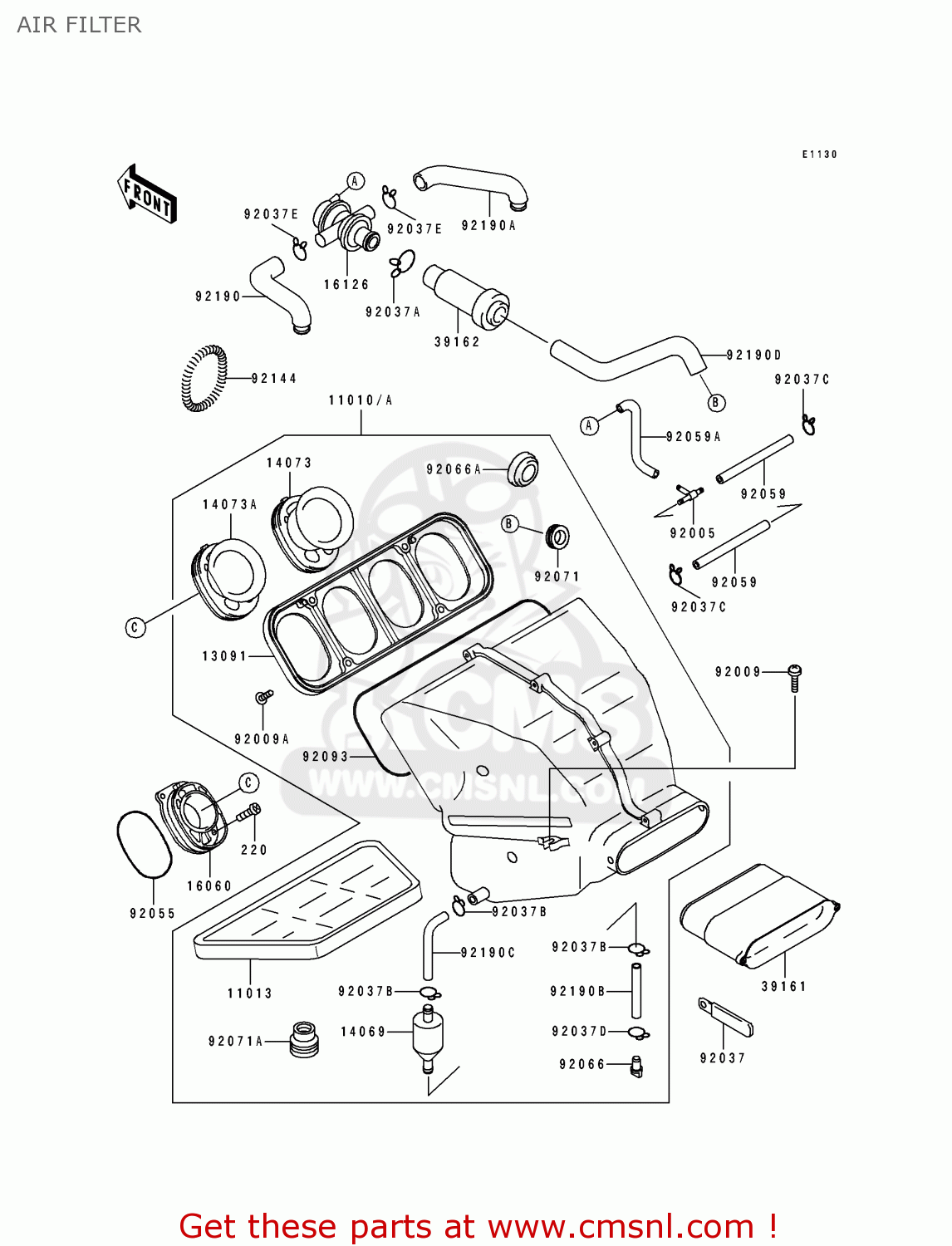

Air filter diagram ZX750J1 ZXR750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

AIR FILTER ZX750J1 ZXR750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR FILTER ZX750J1 ZXR750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR FILTER ZX750J1 ZXR750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11010
110101465
ref: 11010
ARST
FILTER-ASSY-AIR
€ 271.50
11010A
110101467
ref: 11010A
EUFGFRGRITNRSDSPUK
FILTER-ASSY-AIR
€ 271.50
11013
110131210
ref: 11013
ELEMENT-AIR FILTER
110131210
€ 32.50
13091
130911731
ref: 13091
HOLDER,AIR FILTER
130911731
€ 36.50
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
14073
140731502
ref: 14073
DUCT,#2&#3
140731502
€ 14.00
14073A
140731503
ref: 14073A
DUCT,#1&#4
€ 27.50
16060
160601068
ref: 16060
PIPE-INTAKE
160601068
€ 16.00
16126
161261104
ref: 16126
ARST
VALVE,AIR SWITCH
161261104
€ 176.00
39161
391611068
ref: 39161
SILENCER-ASSY-INTAKE
€ 65.00
39162
391621003
ref: 39162
ARST
SILENCER-INTAKE
391621003
€ 59.00
92005
920051017
ref: 92005
ARST
FITTING,TUBE
920051017
€ 6.50
92009
920091511
ref: 92009
SCREW,6X25
€ 2.50
92009A
920091640
ref: 92009A
SCREW,TAPPING,6X25
920091640
€ 3.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371076
ref: 92037A
ARST
CLAMP,TUBE
920371076
€ 4.00
92037B
920371271
ref: 92037B
CLAMP,FUEL TUBE
920371271
€ 2.00
92037C
920371712
ref: 92037C
ARST
CLAMP
920371712
€ 3.00
92037D
920371972
ref: 92037D
CLAMP,TUBE
920371972
€ 2.50
92037E
92037213
ref: 92037E
ARST
CLAMP, BREATHER TUBE
92037213
€ 2.50
92055
920551434
ref: 92055
RING-O,67.7X3.1
920551434
€ 6.50
92059
920591230
ref: 92059
ARST
TUBE,FUEL,4X9X140
920591230
€ 12.50
92059A
920591533
ref: 92059A
ARST
TUBE,4X9X500,WHITE
920591533
€ 12.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92066A
920661321
ref: 92066A
EUFGFRGRITNRSDSPUK
PLUG,25MM
920661321
€ 8.50
92071
920711028
ref: 92071
ARST
GROMMET AIR FILTER
€ 4.50
92071A
920711204
ref: 92071A
GROMMET,AIR FILTER
€ 6.00
92093
920931320
ref: 92093
SEAL,AIR FILTER
€ 7.50
92144
921441563
ref: 92144
SPRING,DUCT
921441563
€ 6.50
92190
921901197
ref: 92190
ARST
TUBE,HEAD-AIR SWITCH,
921901197
€ 13.50
220
220B0512
ref: 220
SCREW-PAN-CROS
220B0512
€ 0.50
92190A
921901198
ref: 92190A
ARST
TUBE,HEAD-AIR SWITCH,
921901198
€ 13.50
92190B
921901200
ref: 92190B
TUBE,7X12X45
€ 8.50
92190C
921901243
ref: 92190C
TUBE,BREATHER
€ 7.00
92190D
921901254
ref: 92190D
ARST
TUBE-AIR
€ 11.50
