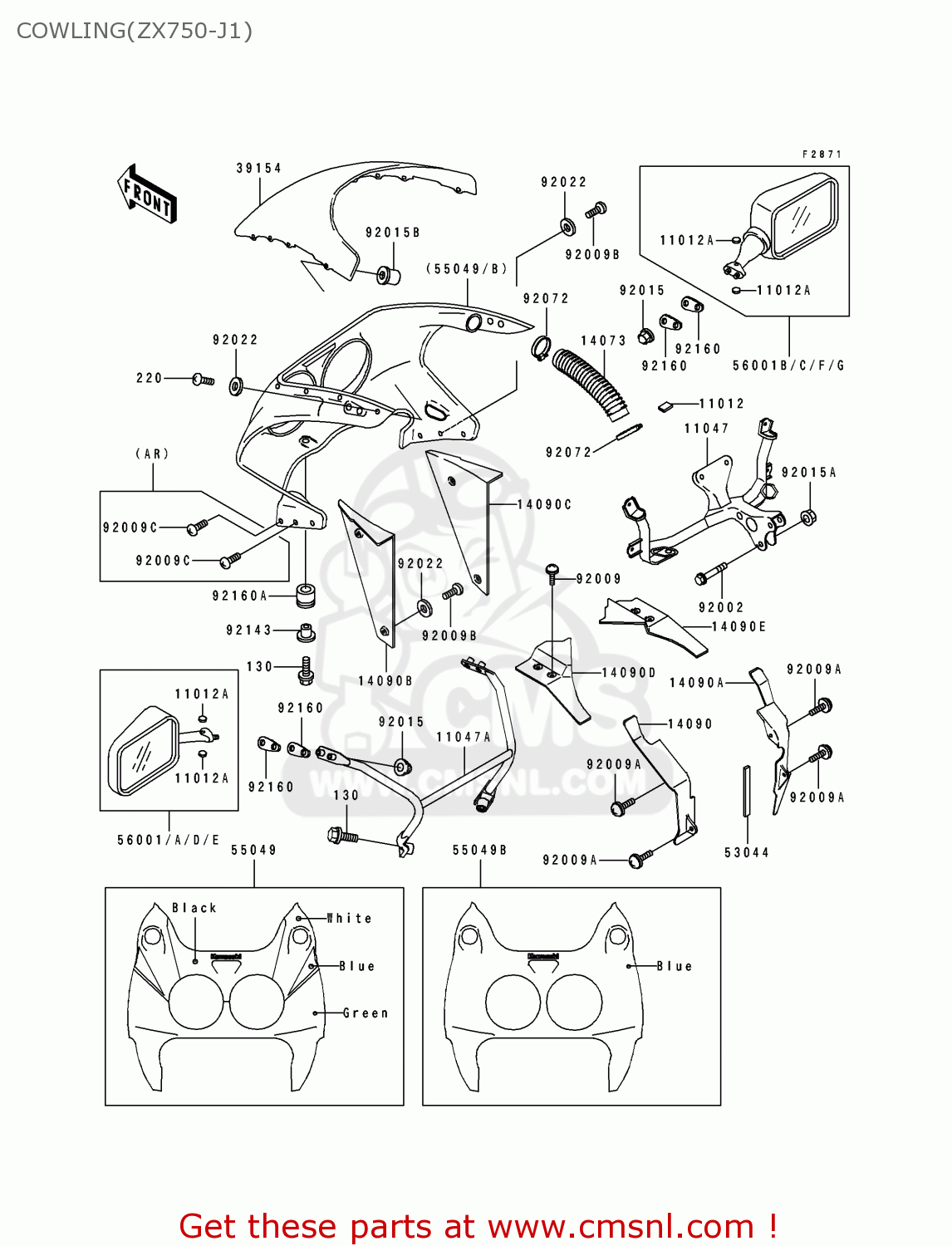

COWLING(ZX750-J1)

ref

part #

description

quantity

11012

110121725
ref: 11012

CAP

€ 2.00

11012A

110121818
ref: 11012A

CAP,MIRROR

€ 2.00

11047

110471270
ref: 11047

BRACKET,UPP COWLING

€ 198.50

11047A

11047127110
ref: 11047A

BRACKET,MIRROR,BLACK

€ 87.50

14073

140731463
ref: 14073

DUCT,AIR INTAKE

€ 27.50

14090

140901060
ref: 14090

COVER,INNER COWLING,L

€ 24.50

14090A

140901061
ref: 14090A

COVER,INNER COWLING,R

€ 25.00

14090B

140901090
ref: 14090B

COVER,RADIATOR,LH

€ 23.50

14090C

140901091
ref: 14090C

COVER,RADIATOR,RH

€ 23.50

14090D

140901094
ref: 14090D

COVER,INNER COWLING,L

€ 18.00

14090E

140901095
ref: 14090E

COVER,INNER COWLING,R

€ 18.00

39154

391541116
ref: 39154

WINDSHIELD

€ 199.50

53044

530441248
ref: 53044

TRIM,L=150

€ 5.50

55049

550495018CK
ref: 55049

COWLING.,UPP,GREEN/WH

€ 753.50

55049B

550495026KH
ref: 55049B

COWLING.,UPP,M.BLUE G

€ 765.50

56001

5600113766C
ref: 56001
EUFRITSPUK

MIRROR-ASSY,LH,EBONY

€ 81.50

56001A

5600113766F
ref: 56001A
EUFRITSPUK

MIRROR-ASSY,LH,P.WHIT

€ 80.00

56001B

5600113776C
ref: 56001B
EUFRITSPUK

MIRROR-ASSY,RH,EBONY

€ 81.50

56001C

5600113776F
ref: 56001C
EUFRITSPUK

MIRROR-ASSY,RH,P.WHIT

€ 80.00

56001D

5600113796C
ref: 56001D
ARFGGRNRSDST

MIRROR-ASSY,LH,EBONY

€ 81.50

56001E

5600113796F
ref: 56001E
ARFGGRNRSDST

MIRROR-ASSY,LH,P.WHIT

€ 80.00

56001F

5600113806C
ref: 56001F
ARFGGRNRSDST

MIRROR-ASSY,RH,EBONY

€ 81.50

56001G

5600113806F
ref: 56001G
ARFGGRNRSDST

MIRROR-ASSY,RH,P.WHIT

€ 80.00

92002

920021198
ref: 92002

BOLT,8X35

€ 3.00

92009

920091402
ref: 92009

SCREW,6X10

€ 1.50

92009A

920091555
ref: 92009A

SCREW

€ 2.50

92009B

920091654
ref: 92009B
AR

SCREW

€ 0.50

92009B

920091654
ref: 92009B
EUFGFRGRITNRSDSPSTUK

SCREW

€ 0.50

92009C

920091656
ref: 92009C
AR

SCREW

€ 2.50

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

220

220C0516
ref: 220

SCREW-PAN-CROS

€ 0.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92015A

920151174
ref: 92015A

NUT,CAP,8MM,BLACK

€ 3.00

92015B

920151757A
ref: 92015B

NUT,5MM

€ 5.00

92022

920221521
ref: 92022
AR

WASHER,NYLON,5.3X11.5

€ 2.50

92022

920221521
ref: 92022
EUFGFRGRITNRSDSPSTUK

WASHER,NYLON,5.3X11.5

€ 2.50

92072

920721091
ref: 92072

BAND

€ 14.50

92143

921431026
ref: 92143

COLLAR

€ 4.00

92160

921601089
ref: 92160

DAMPER,MIRROR

€ 4.50

92160A

921601141
ref: 92160A

DAMPER

€ 3.00
