REAR CALIPER

ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA

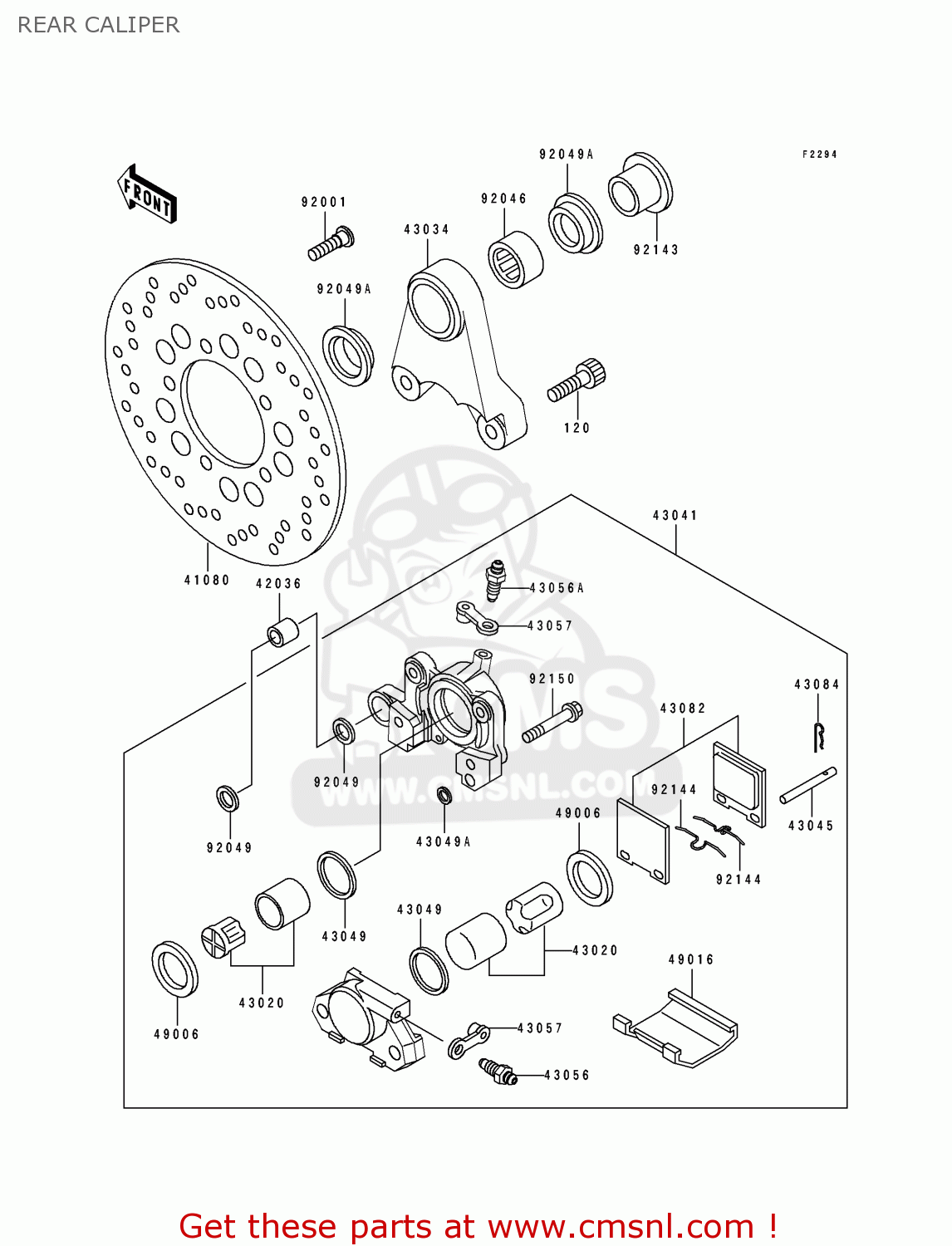

Rear caliper diagram ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA

REAR CALIPER ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA
REAR CALIPER ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA
REAR CALIPER ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0825
ref: 120
BOLT-SOCKET
120S0825
€ 3.00
41080
410801242FB
ref: 41080
DISC,RR,C.GRAY
410801242FB
€ 179.50
42036
420361260
ref: 42036
SLEEVE,8.1X14X17.6
420361260
€ 10.50
43020
430201087
ref: 43020
PISTON-COMP-BRAKE
430201087
€ 38.00
43034
430341115
ref: 43034
HOLDER-BRAKE,REAR CAL
430341115
€ 72.50
43041
430411291FE
ref: 43041
CALIPER-ASSY,RR,M.F.G
430411291FE
€ 465.50
43045
43045007
ref: 43045
PIN CALIPER
43045007
€ 4.00
43049
43049001
ref: 43049
RING-PISTON SEAL
43049001
€ 7.50
43049A
430491004
ref: 43049A
RING SEAL6.5X11.5X2.2
430491004
€ 4.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821098
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821098
€ 42.50
43084
43084003
ref: 43084
CLIP, PAD
43084003
€ 2.50
49006
490061254
ref: 49006
BOOT,PISTON
490061254
€ 14.00
49016
490161145
ref: 49016
COVER-SEAL
490161145
€ 11.50
92001
920011951
ref: 92001
BOLT,SOCKET,8X30
920011951
€ 3.00
92046
920461206
ref: 92046
BEARING-NEEDLE,BM3516
920461206
€ 19.50
92049
920491339
ref: 92049
SEAL-OIL
920491339
€ 3.50
92049A
920491380
ref: 92049A
SEAL-OIL,MHA 35 42 5.
920491380
€ 8.50
92143
921431483
ref: 92143
COLLAR,L=32
921431483
€ 27.50
92144
921441401
ref: 92144
SPRING,PAD
921441401
€ 3.50
92150
921501273
ref: 92150
BOLT
921501273
€ 5.50
