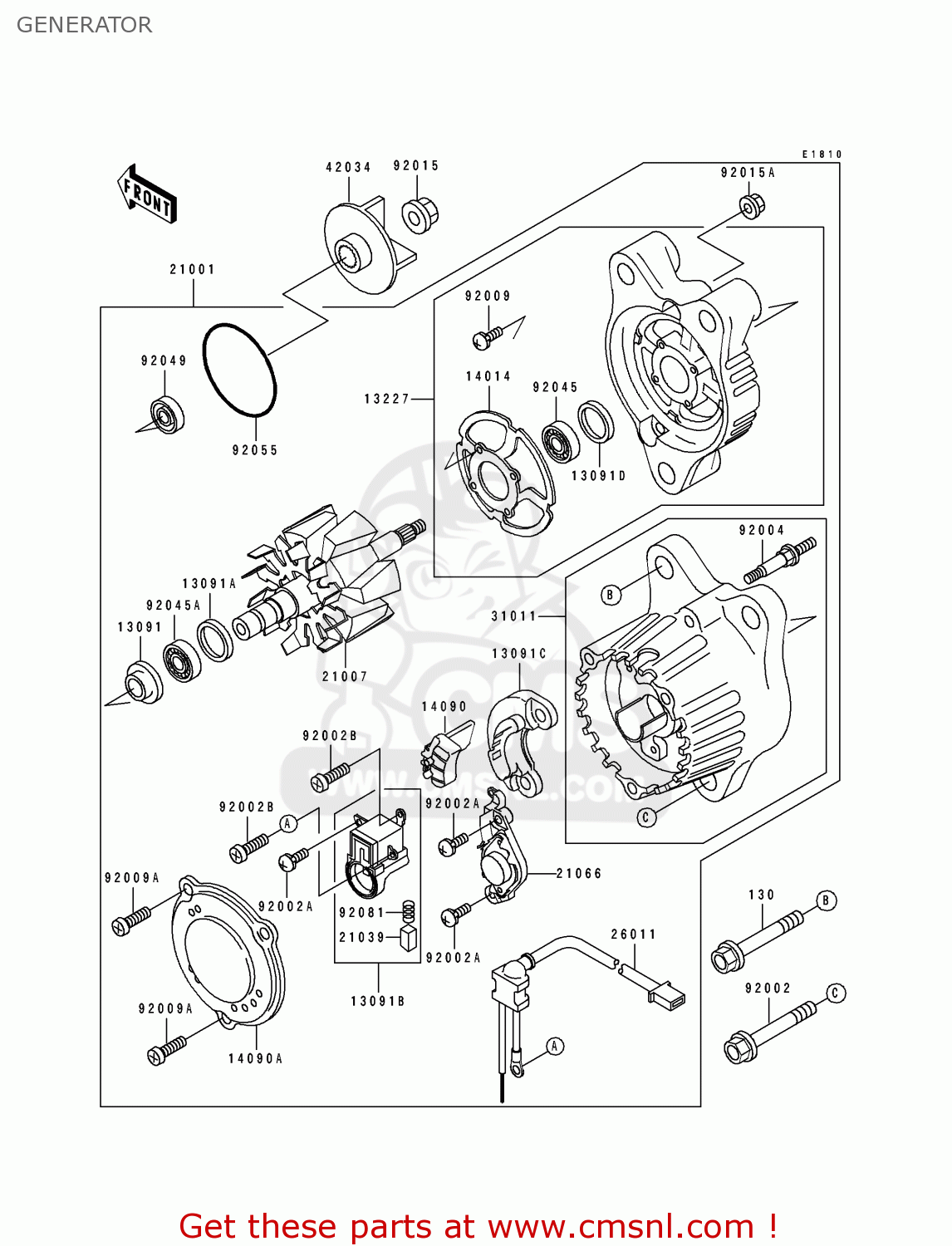

GENERATOR

ref

part #

description

quantity

130

130Z0870
ref: 130

BOLT-FLANGED

€ 6.00

13091

130911327
ref: 13091

HOLDER,COVER

€ 13.00

13091A

130911328
ref: 13091A

HOLDER,BEARING

€ 10.00

13091B

130911465
ref: 13091B

HOLDER,BRUSH

€ 85.50

13091C

130911466
ref: 13091C

RECTIFIER

€ 432.50

13091D

130911748
ref: 13091D

HOLDER,BEARING

€ 10.00

13227

132271106
ref: 13227

HOUSING,GENERATOR

€ 713.50

14014

140141105
ref: 14014

PLATE-POSITION

€ 49.00

14090

140901113
ref: 14090

COVER,RECTIFIER

€ 10.00

14090A

140901114
ref: 14090A

COVER,GENERATOR

€ 76.00

21001

210011115
ref: 21001

GENERATOR

€ 1,308.50

21007

210071229
ref: 21007

ROTOR,GENERATOR

€ 537.00

21039

210391052
ref: 21039

BRUSH,CARBON

€ 19.00

21066

210661076
ref: 21066

REGULATOR-VOLTAGE

€ 313.00

26011

260111497
ref: 26011

WIRE-LEAD,GENERATOR

€ 64.00

31011

310111067
ref: 31011

FRAME,GENERATOR

€ 582.50

42034

420341056
ref: 42034

COUPLING

€ 58.00

92002

920021215
ref: 92002

BOLT,8X63

€ 5.00

92002A

920021380
ref: 92002A

BOLT

€ 3.00

92002B

920021585
ref: 92002B

BOLT,6X105

€ 2.50

92004

920041196
ref: 92004

STUD

€ 17.50

92009

920091645
ref: 92009

ZCREW

€ 5.00

92009A

920091646
ref: 92009A

SCREW

€ 5.50

92015

920151850
ref: 92015

NUT,10MM

€ 4.50

92015A

920151851
ref: 92015A

NUT

€ 2.00

92045

920451248
ref: 92045

BEARING-BALL,#6003

€ 47.00

92045A

920451249
ref: 92045A

BEARING-BALL,#6002NC

€ 56.50

92049

920491390
ref: 92049

SEAL-OIL

€ 11.00

92055

920551496
ref: 92055

RING-O

€ 19.50

92081

920811759
ref: 92081

SPRING,BRUSH

€ 5.00

all assemblies
