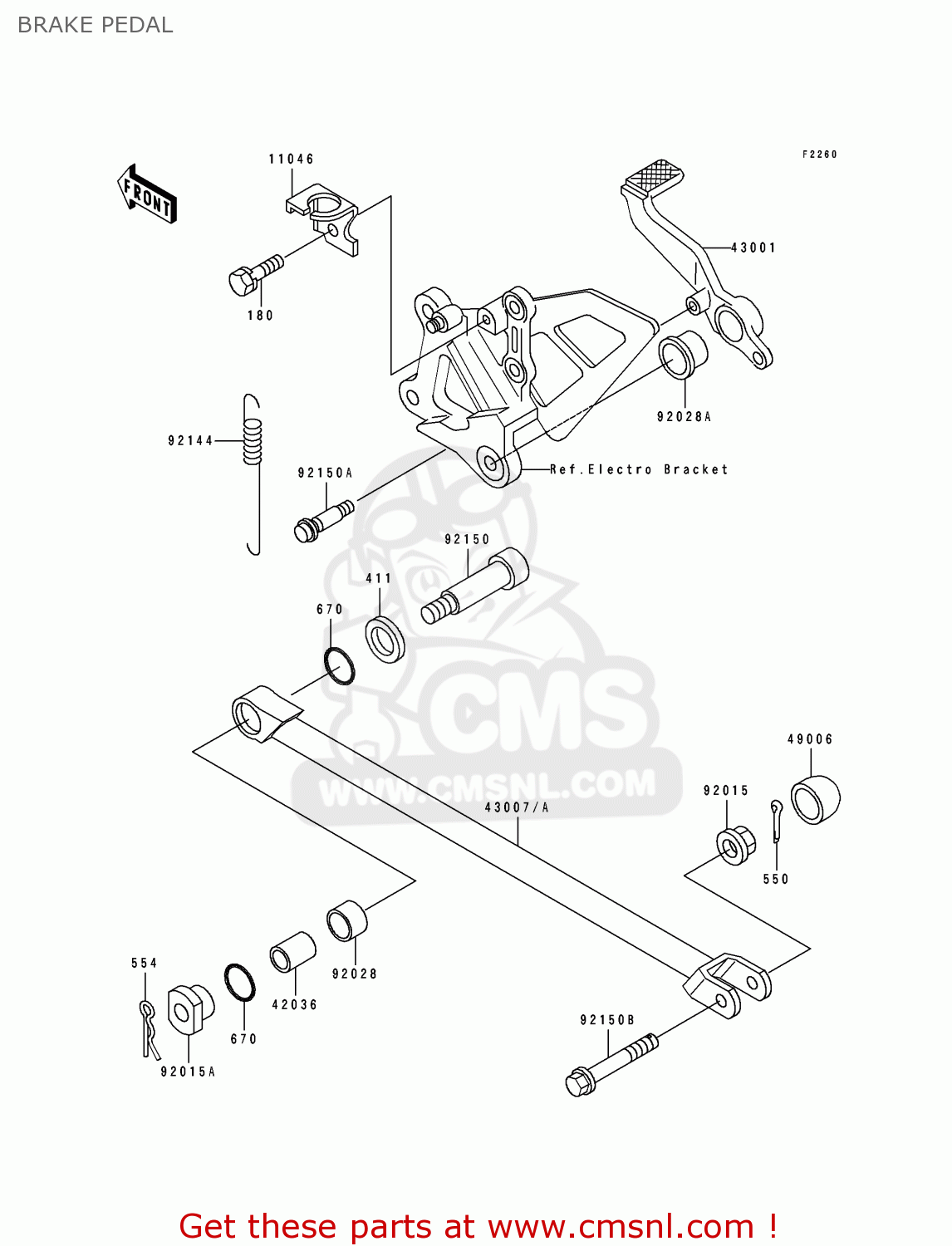

BRAKE PEDAL

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

411

411D1000
ref: 411

WASHER-PLAIN,10MM

€ 3.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

670

670B2016
ref: 670

O RING,16MM

€ 1.00

11046

110461252
ref: 11046

BRACKET,REAR BRAKE SW

€ 5.50

42036

420361242
ref: 42036

SLEEVE,10.1X16X20

€ 9.50

43001

430011274
ref: 43001

LEVER-BRAKE,PEDAL

€ 90.50

43007

430071158KF
ref: 43007

ROD-TORQUE,SILVER NO.

€ 87.50

49006

490061218
ref: 49006

BOOT

€ 3.50

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151747
ref: 92015A

NUT,8MM

€ 12.00

92028

920281468
ref: 92028

BUSHING

€ 6.00

92028A

920281576
ref: 92028A

BUSHING

€ 12.50

92144

921441421
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.50

92150

921501167
ref: 92150

BOLT,SOCKET,8X61

€ 12.00

92150A

921501439
ref: 92150A

BOLT

€ 8.00

92150B

921501539
ref: 92150B

BOLT,FLANGED,8X47

€ 6.50
