ELECTRO BRACKET

ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA

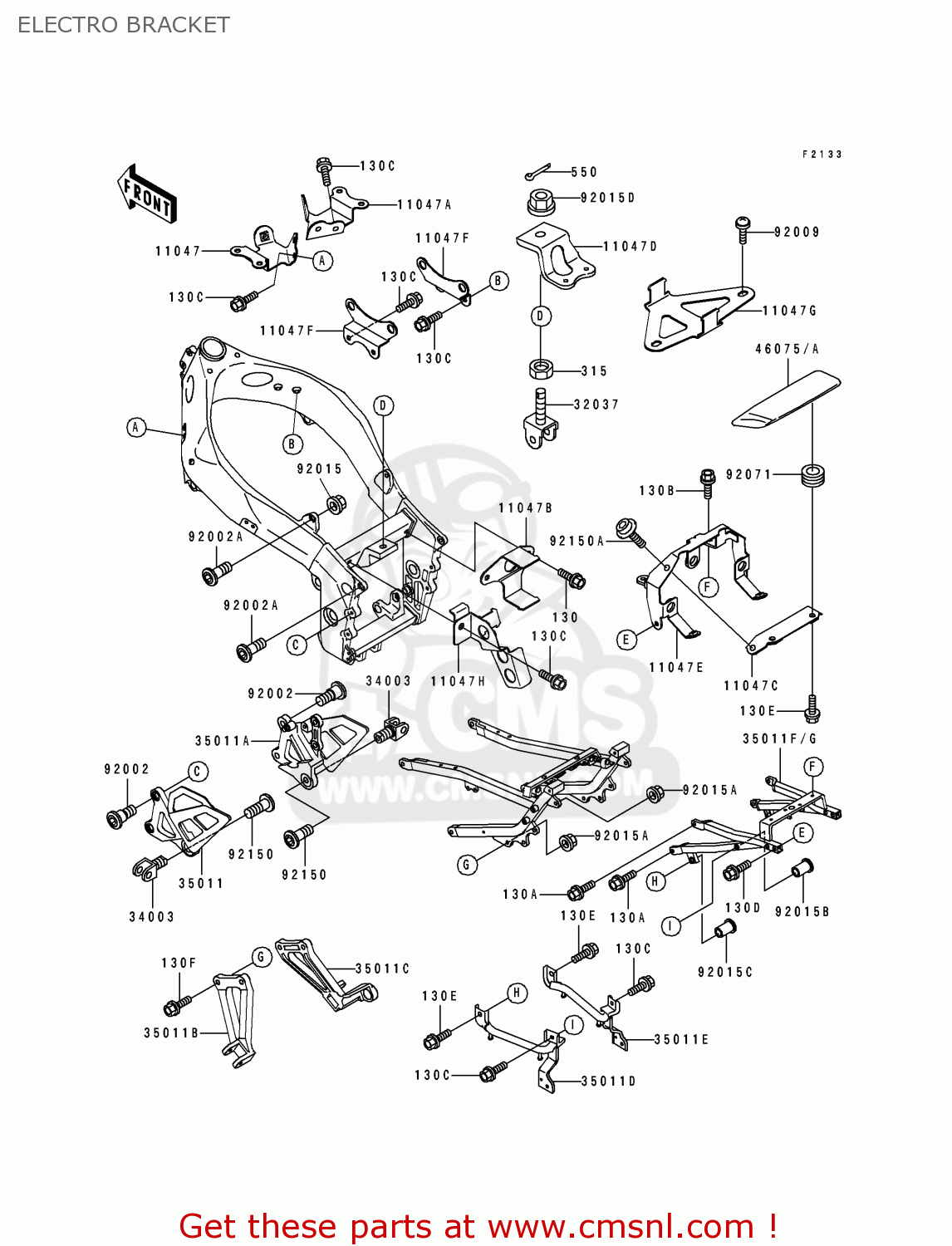

Electro bracket diagram ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA

ELECTRO BRACKET ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA
ELECTRO BRACKET ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA
ELECTRO BRACKET ZX750J1 NINJA ZX7 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0616
ref: 130
BOLT-FLANGED,6X16
130G0616
€ 0.50
130A
130H0825
ref: 130A
BOLT-FLANGED
130H0825
€ 0.50
130B
130J0614
ref: 130B
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
130C
130J0616
ref: 130C
BOLT-FLANGED,6X16
130J0616
€ 1.50
130D
130J0635
ref: 130D
BOLT-FLANGED,6X35
130J0635
€ 3.00
130E
130J0820
ref: 130E
BOLT-FLANGED,8X20
130J0820
€ 0.50
11047
110471263
ref: 11047
BRACKET,RADIATOR,UPP,
€ 11.50
11047A
110471264
ref: 11047A
BRACKET,RADIATOR,UPP,
110471264
€ 10.50
11047B
110471265
ref: 11047B
BRACKET,FUEL PUMP
110471265
€ 8.50
11047C
110471266
ref: 11047C
BRACKET,GRIP
110471266
€ 16.00
11047D
110471267
ref: 11047D
BRACKET,BATTERY
110471267
€ 22.00
11047E
110471343
ref: 11047E
BRACKET,TAIL LAMP
110471343
€ 85.00
11047F
110471345
ref: 11047F
BRACKET,IGNITION COIL
110471345
€ 6.50
11047G
110471502
ref: 11047G
BRACKET,IGNITER
110471502
€ 8.50
11047H
110471522
ref: 11047H
BRACKET,FUEL FILTER
110471522
€ 9.50
32037
320371564
ref: 32037
BRACKET-SHOCKABSORBER
320371564
€ 28.00
34003
340031327
ref: 34003
HOLDER-STEP,FR,RH
340031327
€ 22.50
35011
350111552
ref: 35011
STAY,FR,LH
350111552
€ 116.00
35011A
350111553
ref: 35011A
STAY,FR,RH
350111553
€ 116.00
35011B
350111554
ref: 35011B
STAY,RR,LH
350111554
€ 119.50
35011C
350111555
ref: 35011C
STAY,RR,RH
350111555
€ 119.50
35011D
350111559
ref: 35011D
STAY,REAR GRIP,LH
€ 23.00
35011E
350111560
ref: 35011E
STAY,REAR GRIP,RH
€ 23.00
35011F
350111577KF
ref: 35011F
STAY,REAR FRAME,SILVE
€ 373.00
46075A
460751094KD
ref: 46075A
GRIP,GRABRAIL,BLUE 36
460751094KD
€ 123.50
92002
920021493
ref: 92002
BOLT,SOCKET,8X20
920021493
€ 1.50
92002A
920021928
ref: 92002A
BOLT,SOCKET,10X25
920021928
€ 5.00
92009
920091662
ref: 92009
SCREW
920091662
€ 2.50
92015
920151387
ref: 92015
NUT,FLANGED,10MM
920151387
€ 2.50
92015A
920151406
ref: 92015A
NUT,8MM
920151406
€ 3.00
92015B
920151791
ref: 92015B
NUT,POP,6MM
920151791
€ 3.00
92015C
920151794
ref: 92015C
NUT,POP,8MM
920151794
€ 3.00
92015D
920151881
ref: 92015D
NUT,FLANGED,16MM
920151881
€ 16.50
92071
920711027
ref: 92071
GROMMET,AIR CLEANER
920711027
€ 3.00
92150
921501268
ref: 92150
BOLT,10X25
921501268
€ 4.00
92150A
921501542
ref: 92150A
BOLT,SOCKET,8X14
921501542
€ 3.00
130F
130J0830
ref: 130F
BOLT-FLANGED,8X30
130J0830
€ 2.50
315
315B1600
ref: 315
NUT-HEX-FINE,16MM
315B1600
€ 2.50
550
550D4025
ref: 550
PIN,COTTER,4X25
550D4025
€ 0.50
