Genuine ZX Kawasaki Parts delivered quickly!


STARTER MOTOR

ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

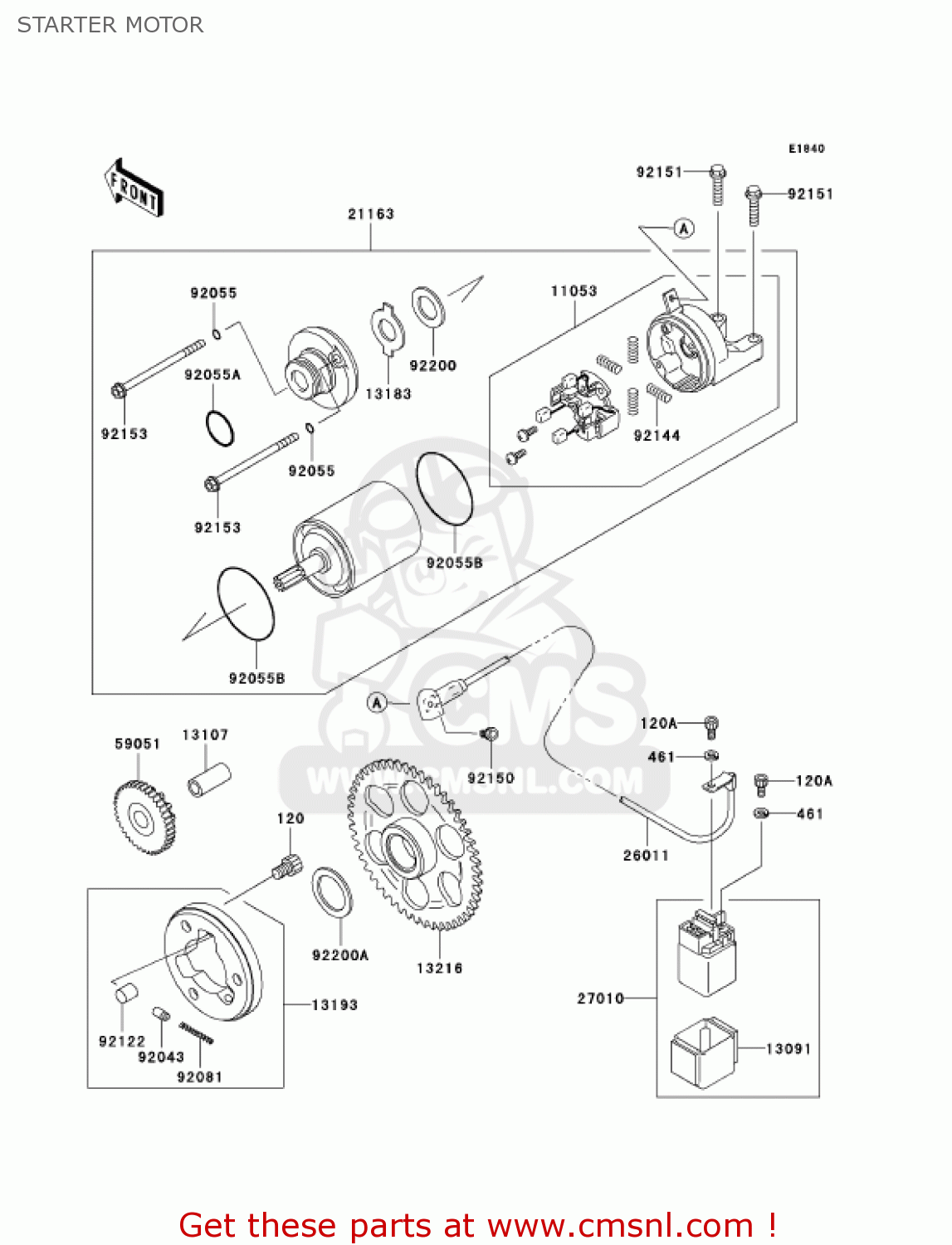

Starter motor diagram ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

STARTER MOTOR ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
STARTER MOTOR ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
STARTER MOTOR ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0812
ref: 120
BOLT,SOCKET,8X12
120P0812
€ 2.50
120A
120S0510
ref: 120A
BOLT-SOCKET
120S0510
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
11053
110530224
ref: 11053
BRACKET,STARTER
110530224
€ 148.00
13091
130911884
ref: 13091
HOLDER,MAGNETIC SWITC
130911884
€ 8.00
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
131071176
€ 6.50
13183
131831460
ref: 13183
PLATE
€ 9.00
13193
131931066
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 129.50
13216
132160004
ref: 13216
GEAR-COMP,ONEWAY CLUT
132160004
€ 134.50
21163
211630006
ref: 21163
STARTER-ELECTRIC
€ 667.50
26011
260110014
ref: 26011
WIRE-LEAD,STARTER
€ 61.00
27010
270101327
ref: 27010
SWITCH,MAGNETIC
270101327
€ 116.00
59051
590511413
ref: 59051
GEAR-SPUR,IDLE
€ 51.00
92043
92043132
ref: 92043
PIN
92043132
€ 4.00
92055
920550013
ref: 92055
RING-O,STARTER
€ 8.50
92055A
920551262
ref: 92055A
RING-O,24.4X3.1
920551262
€ 8.50
92055B
920551455
ref: 92055B
RING-O
€ 9.50
92081
92081159
ref: 92081
SPRING, COIL
92081159
€ 2.50
92122
92122006
ref: 92122
ROLLER
92122006
€ 4.00
92144
921441423
ref: 92144
SPRING,BRUSH
921441423
€ 3.00
92150
921501305
ref: 92150
BOLT
€ 3.00
92151
921511930
ref: 92151
BOLT,6X25
921511930
€ 2.00
92153
921530405
ref: 92153
BOLT
€ 15.50
92200
922001019
ref: 92200
WASHER
922001019
€ 5.00
92200A
922001393
ref: 92200A
WASHER,27.5X38X1.0
922001393
€ 2.50
