CHASSIS ELECTRICAL EQUIPMENT

ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

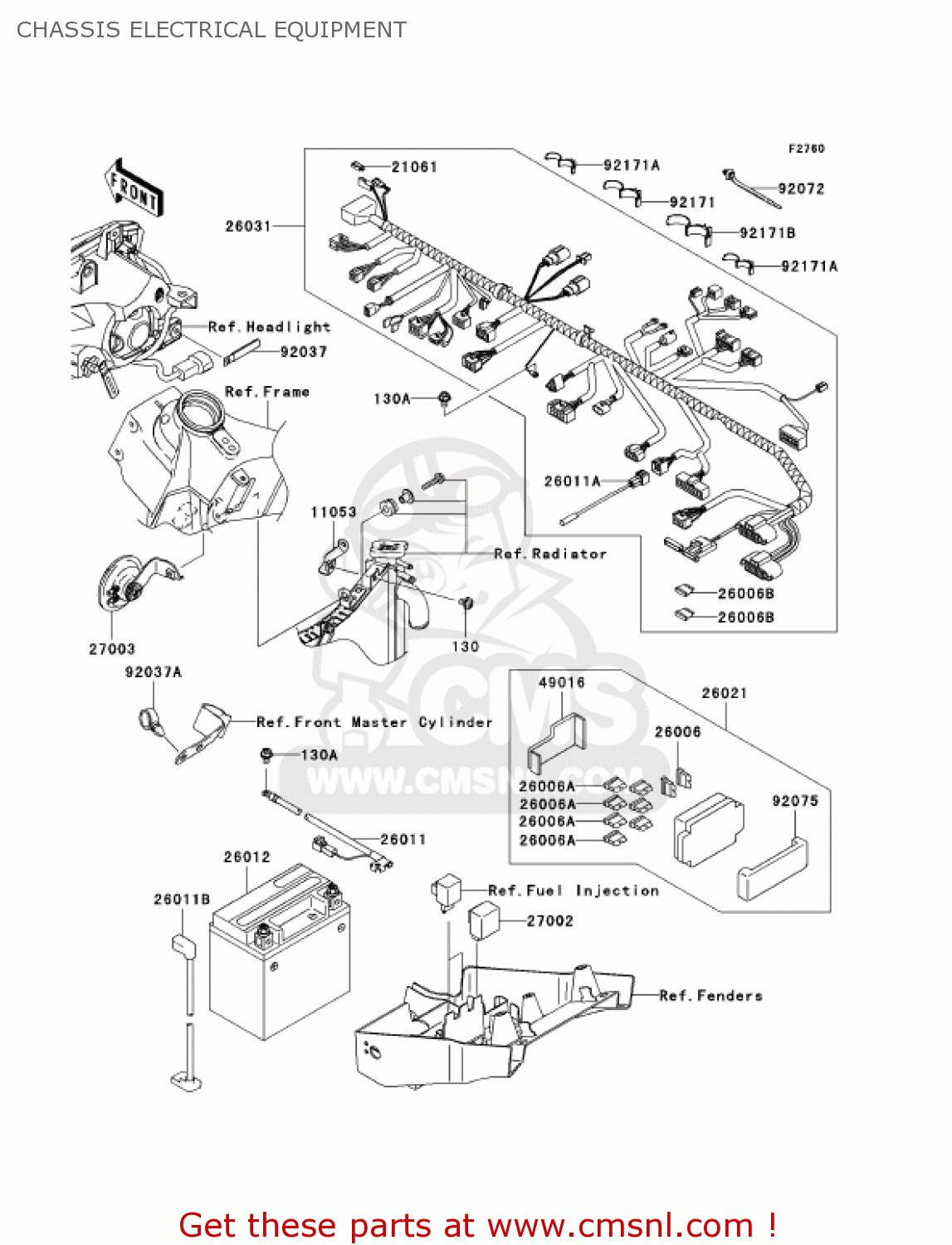

Chassis electrical equipment diagram ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
11053
110531228
ref: 11053
BRACKET,RADIATOR
€ 5.00
21061
210610001
ref: 21061
RECTIFIER
210610001
€ 24.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26006B
260061075
ref: 26006B
FUSE,15A
€ 3.50
26011
260110004
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 30.00
26011A
260111774
ref: 26011A
WIRE-LEAD,DIAGNOSIS
260111774
€ 12.50
26011B
260111843
ref: 26011B
WIRE-LEAD,BATTERY(+)
€ 30.00
26012
260121326
ref: 26012
BATTERY,YTX9BS,12V8AH
€ 100.00
26021
260211089
ref: 26021
JUNCTION BOX
260211089
€ 126.00
26031
260311058
ref: 26031
HARNESS,MAIN
260311058
€ 314.00
27002
270021101
ref: 27002
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031433
ref: 27003
HORN
€ 62.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371827
ref: 92037A
CLAMP,HOSE
920371827
€ 5.00
92072
920721414
ref: 92072
BAND
920721414
€ 2.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92171
921710081
ref: 92171
CLAMP
921710081
€ 3.00
92171A
921711424
ref: 92171A
CLAMP,DIA=15
921711424
€ 3.00
92171B
921711559
ref: 92171B
CLAMP,25MM DIA.
921711559
€ 4.00
