IGNITION SWITCH/LOCKS/REFLECTORS

ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

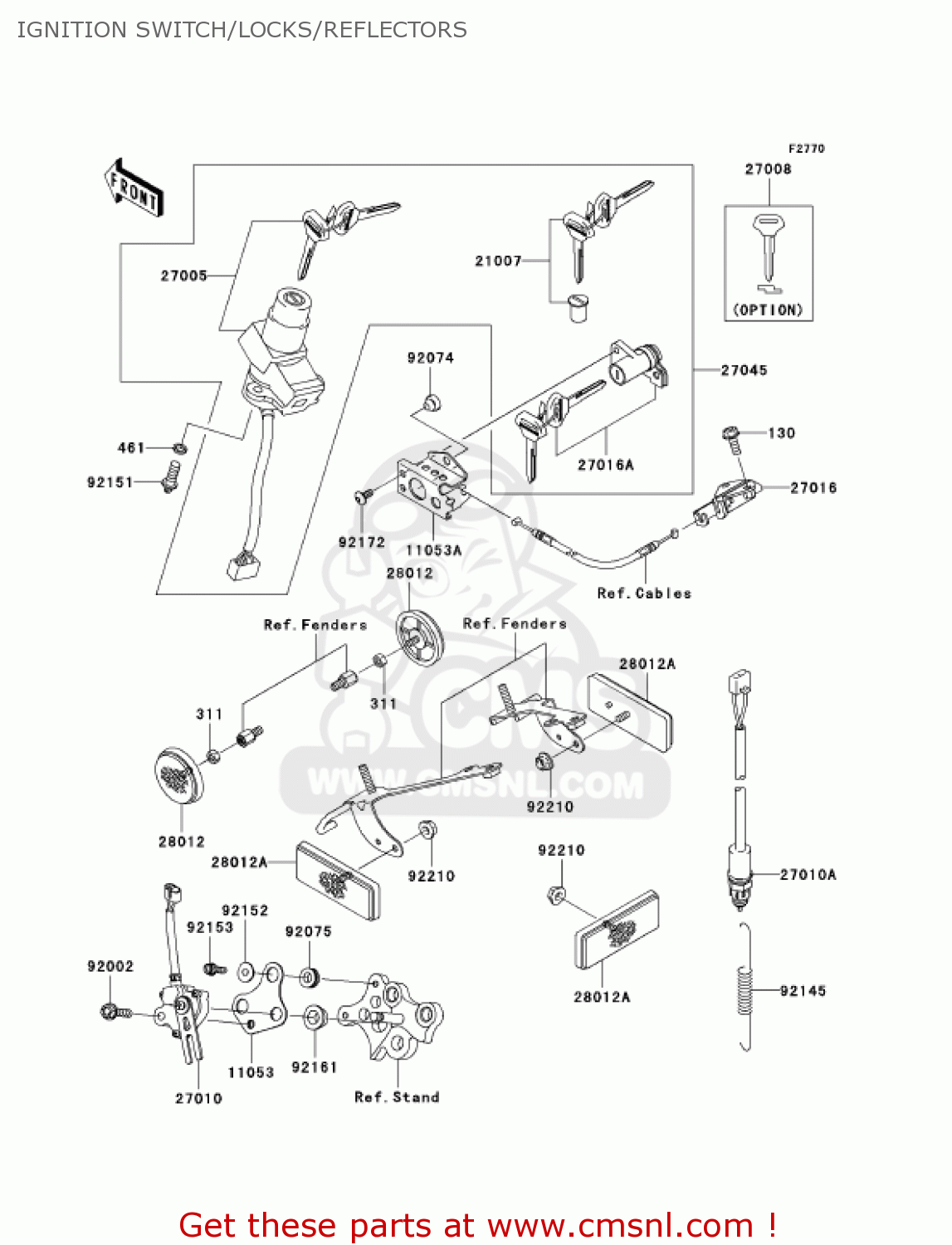

Ignition switch/locks/reflectors diagram ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130L0616
ref: 130
BOLT-FLANGED
130L0616
€ 1.50
311
311L0500
ref: 311
NUT-HEX
€ 1.00
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11053
110530056
ref: 11053
BRACKET,SIDE STAND SW
€ 3.50
11053A
110531132
ref: 11053A
BRACKET,SEAT LOCK
110531132
€ 3.50
21007
210075042
ref: 21007
ROTOR,LOCK,TANK CAP
€ 65.50
27005
270055126
ref: 27005
SWITCH-ASSY-IGNITION
270055126
€ 273.50
27008
270081189
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081189
€ 12.50
27010
270101463
ref: 27010
SWITCH,SIDE STAND
270101463
€ 99.50
27010A
270101479
ref: 27010A
SWITCH,REAR BRAKE
270101479
€ 20.00
27016
270161115
ref: 27016
LOCK-ASSY,SEAT STRIKE
270161115
€ 27.00
27016A
270165261
ref: 27016A
LOCK-ASSY,SEAT
€ 76.50
27045
270455199
ref: 27045
SWITCH-ASSY
€ 507.50
28012
28012016
ref: 28012
REFLECTOR REFLEX
28012016
€ 16.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
92002
920021582
ref: 92002
BOLT,6X25
920021582
€ 3.00
92074
92074028
ref: 92074
PLUG,RUBBER
92074028
€ 2.50
92075
92075161
ref: 92075
DAMPER RUBBER-BATTERY
92075161
€ 3.00
92145
921450057
ref: 92145
SPRING,REAR BRAKE SWI
€ 4.00
92151
921511911
ref: 92151
BOLT,TORX,6X16
921511911
€ 1.50
92152
921520017
ref: 92152
COLLAR
921520017
€ 2.00
92153
921530414
ref: 92153
BOLT,SOCKET,5X18
€ 1.50
92161
921610016
ref: 92161
DAMPER
€ 2.00
92172
921721084
ref: 92172
SCREW,5X12
921721084
€ 1.50
92210
922100007
ref: 92210
NUT,FLANGED,5MM
922100007
€ 2.00
