GEAR CHANGE MECHANISM

ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

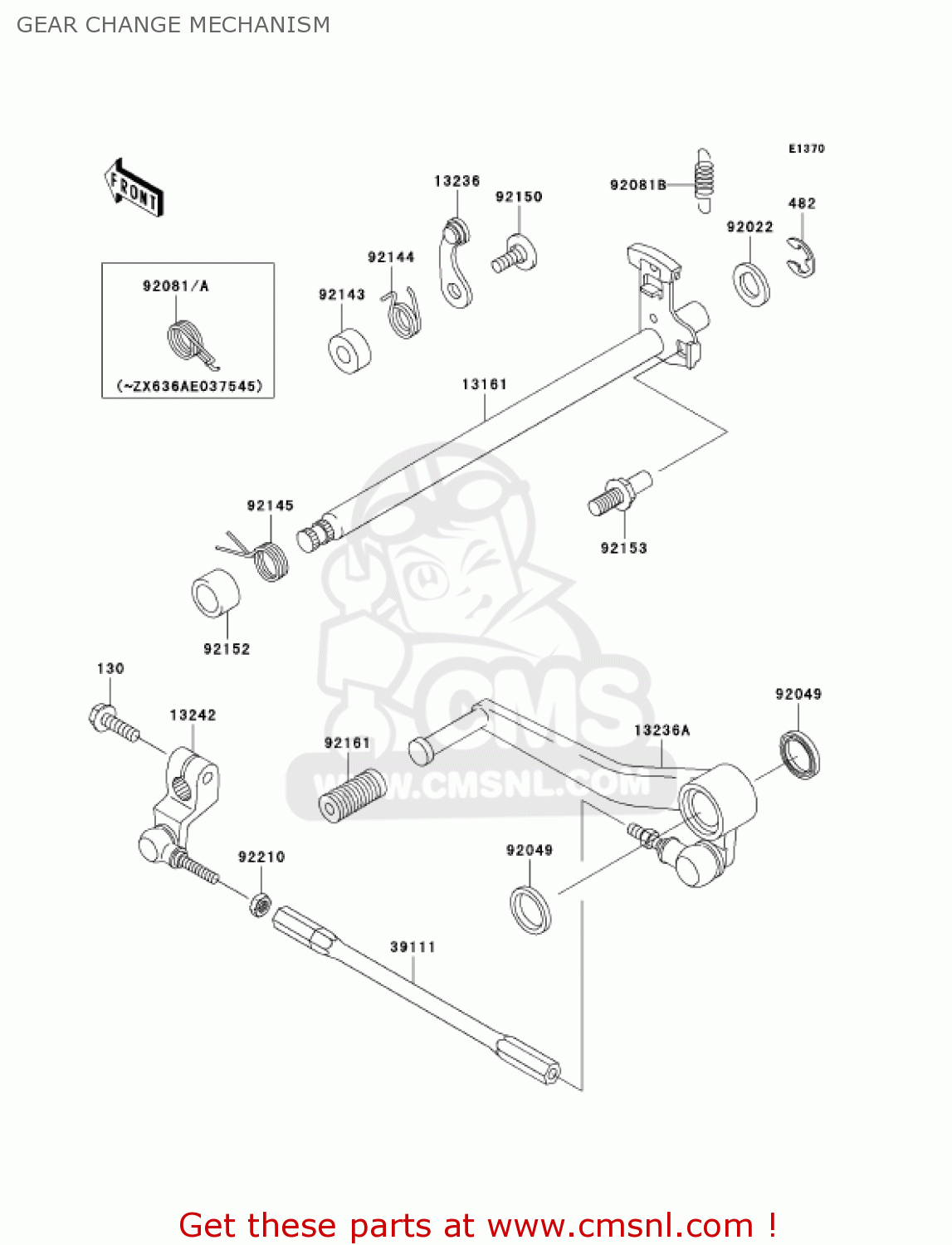

Gear change mechanism diagram ZX636B2 NINJA ZX6R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130Z0620
ref: 130

BOLT-FLANGED,6X20

€ 1.00

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

13161

131611284
ref: 13161

LEVER-COMP-CHANGE SHA

€ 78.00

13236

132361243
ref: 13236

LEVER-COMP

€ 13.00

13236A

132361317
ref: 13236A

LEVER-COMP,CHANGE PED

€ 81.00

13242

132421348
ref: 13242

LEVER-ASSY-CHANGE,BOS

€ 37.50

39111

391111181
ref: 39111

ROD-TIE

€ 73.00

92022

920221628
ref: 92022

WASHER,CHANGE SHAFT

€ 4.50

92049

920491492
ref: 92049

SEAL-OIL

€ 6.00

92081

920811645
ref: 92081

SPRING

€ 9.00

92081B

920811708
ref: 92081B

SPRING,PAWL RETURN

€ 4.00

92143

921431595
ref: 92143

COLLAR

€ 6.50

92145

921451122
ref: 92145

SPRING

€ 6.50

92150

921501737
ref: 92150

BOLT

€ 7.00

92152

921521383
ref: 92152

COLLAR

€ 2.50

92153

921530421
ref: 92153

BOLT,RETURN SPRING

€ 6.50

92161

921611300
ref: 92161

DAMPER,CHANGE PEDAL

€ 4.00

92210

922101101
ref: 92210

NUT

€ 1.50
