TAILLIGHT(S)

ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA

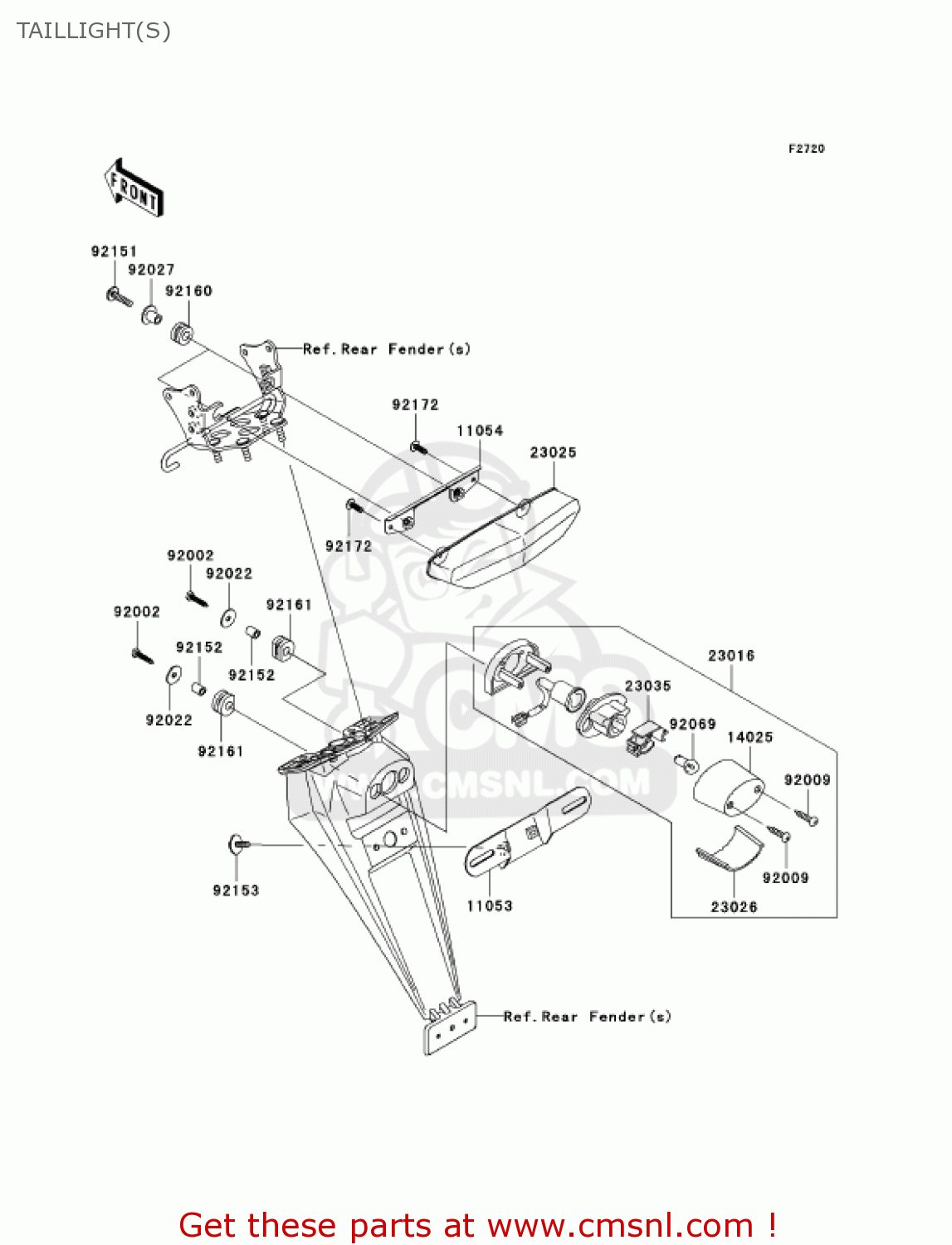

Taillight(s) diagram ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA

TAILLIGHT(S) ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
TAILLIGHT(S) ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
TAILLIGHT(S) ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11053
110530400
ref: 11053
BRACKET,LICENSE
110530400
€ 9.50
11054
110540883
ref: 11054
BRACKET,TAIL LAMP
110540883
€ 6.50
14025
140251725
ref: 14025
COVER,LICENSE LAMP
140251725
€ 12.50
23016
230160014
ref: 23016
LAMP-ASSY,LICENSE
230160014
€ 52.50
23025
230250035
ref: 23025
LAMP-TAIL
230250035
€ 258.00
23026
230261064
ref: 23026
LENS,LICENSE LAMP
230261064
€ 24.00
23035
230351066
ref: 23035
REFLECTOR-LAMP,LICENS
230351066
€ 13.00
92002
920021831
ref: 92002
BOLT
920021831
€ 0.50
92009
920091378
ref: 92009
SCREW,TAPPING,4X20
920091378
€ 2.50
92022
920221581
ref: 92022
WASHER,5.5X20X1.2
920221581
€ 1.50
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
920271183
€ 3.50
92069
920691055
ref: 92069
BULB,12V 5W
920691055
€ 4.00
92151
921511611
ref: 92151
BOLT,SOCKET,6X25
921511611
€ 2.50
92152
921521458
ref: 92152
COLLAR,5.8X9X11.5
921521458
€ 1.50
92153
921530684
ref: 92153
BOLT,6X16
921530684
€ 3.00
92160
921601167
ref: 92160
DAMPER,10X20X12
921601167
€ 3.00
92161
921611313
ref: 92161
DAMPER
921611313
€ 3.50
92172
921720175
ref: 92172
SCREW,TAPPING,5X16
921720175
€ 1.00
