Genuine ZX Kawasaki Parts delivered quickly!


CRANKSHAFT/PISTON(S)

ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA

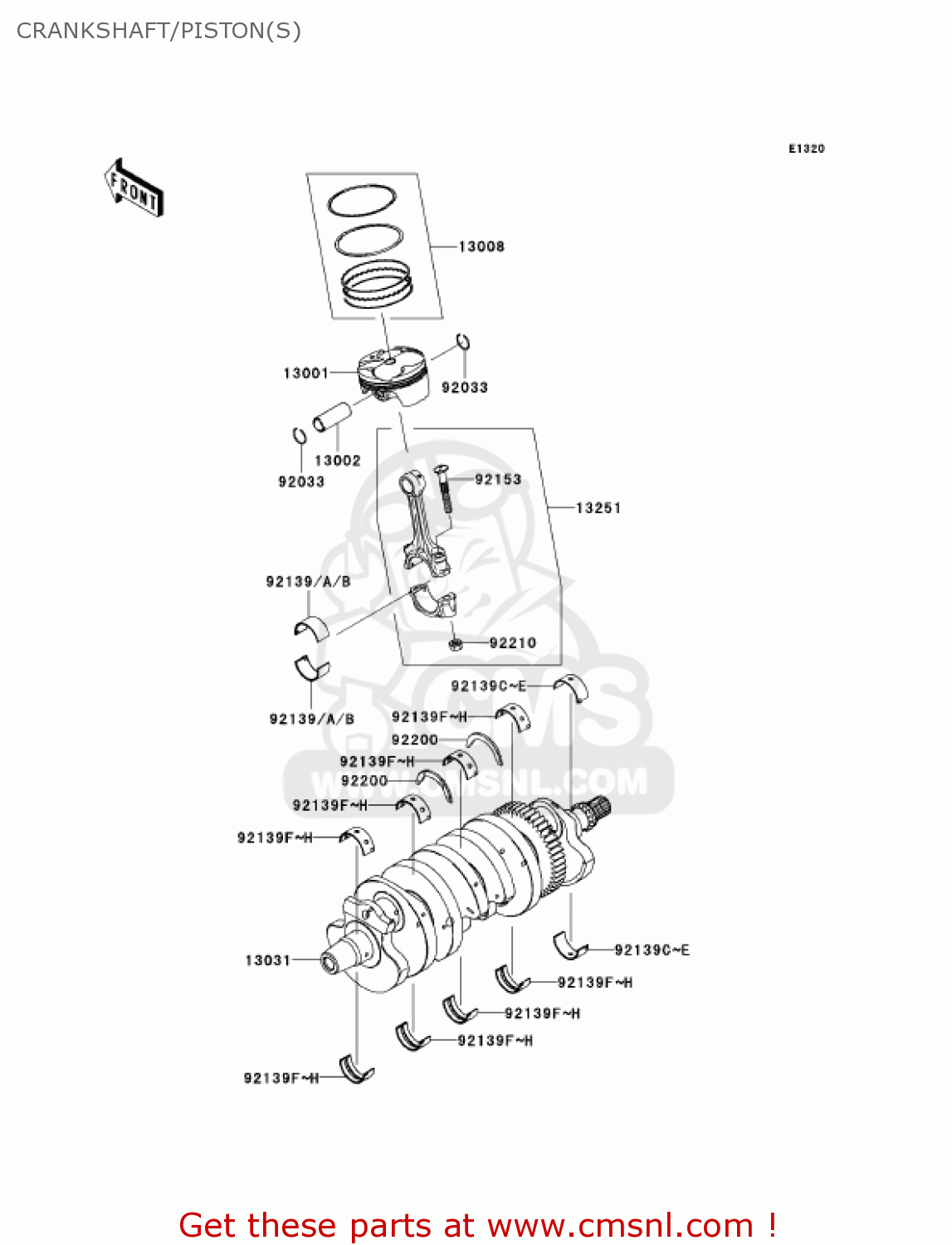

Crankshaft/piston(s) diagram ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA

CRANKSHAFT/PISTON(S) ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
CRANKSHAFT/PISTON(S) ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
CRANKSHAFT/PISTON(S) ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13001
130010081
ref: 13001
PISTON-ENGINE
€ 97.50
13002
130020015
ref: 13002
PIN-PISTON
€ 26.00
13008
130080023
ref: 13008
RING-SET-PISTON
130080023
€ 49.00
13031
130310099
ref: 13031
CRANKSHAFT-COMP
€ 1,152.50
13251
132510018JJ
ref: 13251
ROD-ASSY-CONNECTING,J
132510018JJ
€ 190.50
92033
920331151
ref: 92033
RING-SNAP,PISTON PIN
920331151
€ 2.50
92139
921390165
ref: 92139
BUSHING,CRANK PIN,BLU
921390165
€ 12.00
92139A
921390166
ref: 92139A
BUSHING,CRANK PIN,BLA
921390166
€ 12.00
92139B
921390167
ref: 92139B
BUSHING,CRANK PIN,BRO
921390167
€ 12.00
92139C
921390171
ref: 92139C
BUSHING,CRANK #5,BLUE
921390171
€ 12.50
92139D
921390172
ref: 92139D
BUSHING,CRANK #5,BLAC
921390172
€ 12.50
92139E
921390173
ref: 92139E
BUSHING,CRANK #5,BROW
921390173
€ 11.00
92139F
921390189
ref: 92139F
BUSHING,CRANK #1&#2&#
921390189
€ 12.50
92139G
921390190
ref: 92139G
BUSHING,CRANK #1&#2&#
921390190
€ 12.50
92139H
921390191
ref: 92139H
BUSHING,CRANK #1&#2&#
€ 12.50
92153
921531172
ref: 92153
BOLT,12.9N
921531172
€ 2.50
92200
922000383
ref: 92200
WASHER,T=2.5
922000383
€ 7.50
92210
922100384
ref: 92210
NUT,CONNECTING ROD,7M
922100384
€ 4.50
