Genuine ZX Kawasaki Parts delivered quickly!


FRONT FORK

ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA

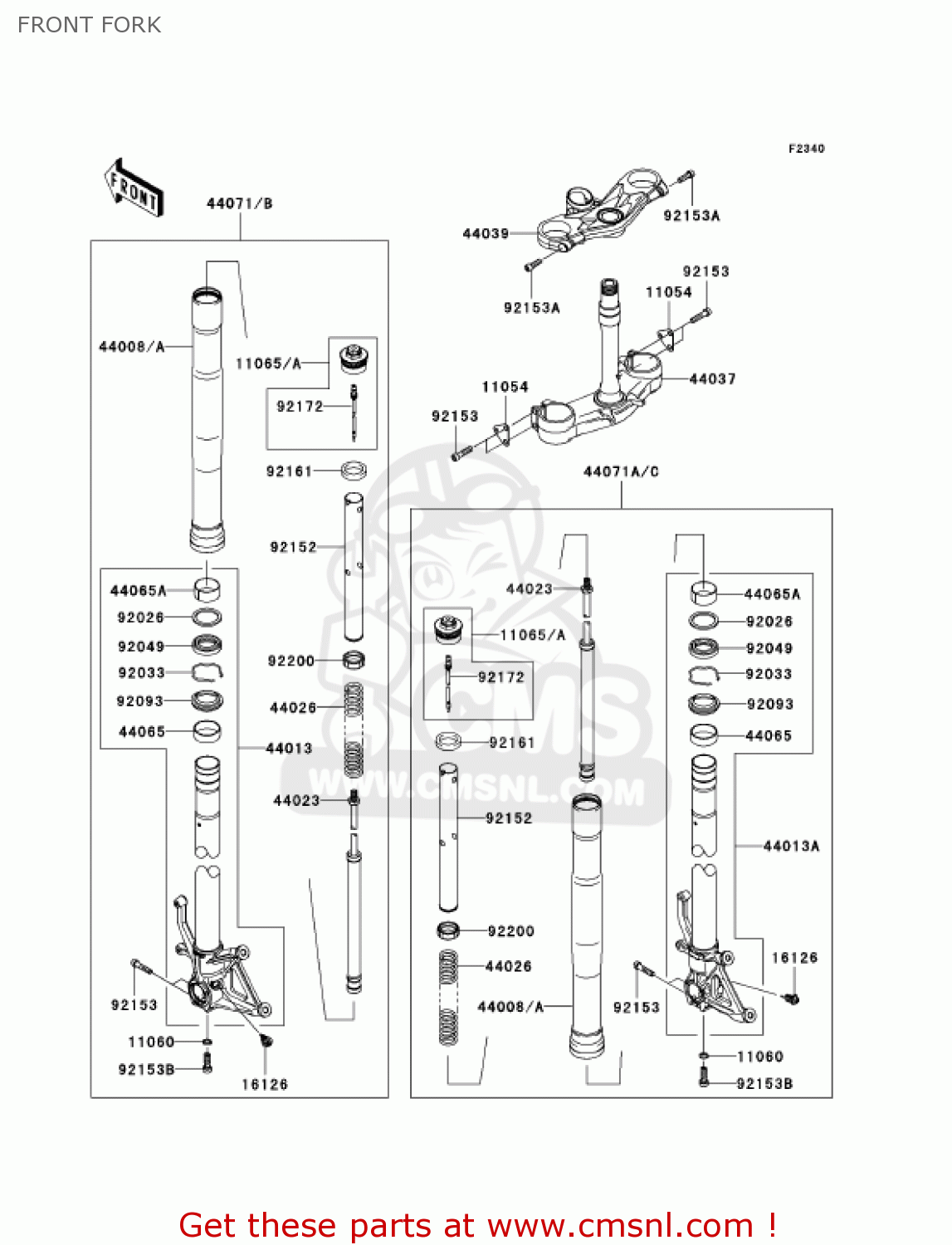

Front fork diagram ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA

FRONT FORK ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
FRONT FORK ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
FRONT FORK ZX636B1 NINJA ZX6R 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11054
110540880
ref: 11054
BRACKET
€ 6.50
11060
110601180
ref: 11060
GASKET,FORK CYLINDER (NAS)
110601180
€ 2.50
11065
110650184KX
ref: 11065
CAP,FORK,SILVER
110650184KX
€ 66.00
11065
11065018410B
ref: 11065
CAP,FORK,P.RED
€ 51.00
16126
161260031
ref: 16126
VALVE,FORK
€ 163.50
44008
440080028KX
ref: 44008
PIPE-FORK OUTER,SILVE
440080028KX
€ 333.00
44008
44008002810B
ref: 44008
PIPE-FORK OUTER,P.RED
€ 577.00
44013
44013007118R
ref: 44013
PIPE-FORK INNER,LH,BL
44013007118R
€ 417.00
44013
44013007218R
ref: 44013
PIPE-FORK INNER,RH,BL
€ 438.00
44023
440230051
ref: 44023
CYLINDER-SET-FORK
440230051
€ 374.00
44026
440260100
ref: 44026
SPRING-FRONT FORK
€ 54.50
44037
440370074
ref: 44037
HOLDER-FORK UNDER
€ 588.00
44039
440390068829
ref: 44039
HOLDER-FORK UPPER,GOL
€ 213.00
44065
440650001
ref: 44065
BUSHING-FRONT FORK
440650001
€ 14.00
44065
440650002
ref: 44065
BUSHING-FRONT FORK
440650002
€ 14.00
44071
440715038
ref: 44071
DAMPER-ASSY,FORK,LH
440715038
€ 1,271.50
44071
440715039
ref: 44071
DAMPER-ASSY,FORK,RH
440715039
€ 1,271.50
44071
440715040
ref: 44071
DAMPER-ASSY,FORK,LH
€ 1,335.50
44071
440715041
ref: 44071
DAMPER-ASSY,FORK,RH
€ 1,335.50
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92049
920490058
ref: 92049
SEAL-OIL
920490058
€ 17.50
92093
920930035
ref: 92093
SEAL,DUST
920930035
€ 19.00
92152
921520522
ref: 92152
COLLAR,FORK,L=432
€ 11.50
92153
921530854
ref: 92153
BOLT
921530854
€ 5.00
92153
921530855
ref: 92153
BOLT
921530855
€ 4.00
92153
921531771
ref: 92153
BOLT
921531771
€ 5.00
92161
921610440
ref: 92161
DAMPER
921610440
€ 5.50
92172
921720290
ref: 92172
SCREW
€ 3.50
92200
922000343
ref: 92200
WASHER
€ 4.50
