Genuine ZX Kawasaki Parts delivered quickly!
home
TRANSMISSION
ZX600N6F NINJA ZX6RR 2006 CALIFORNIA

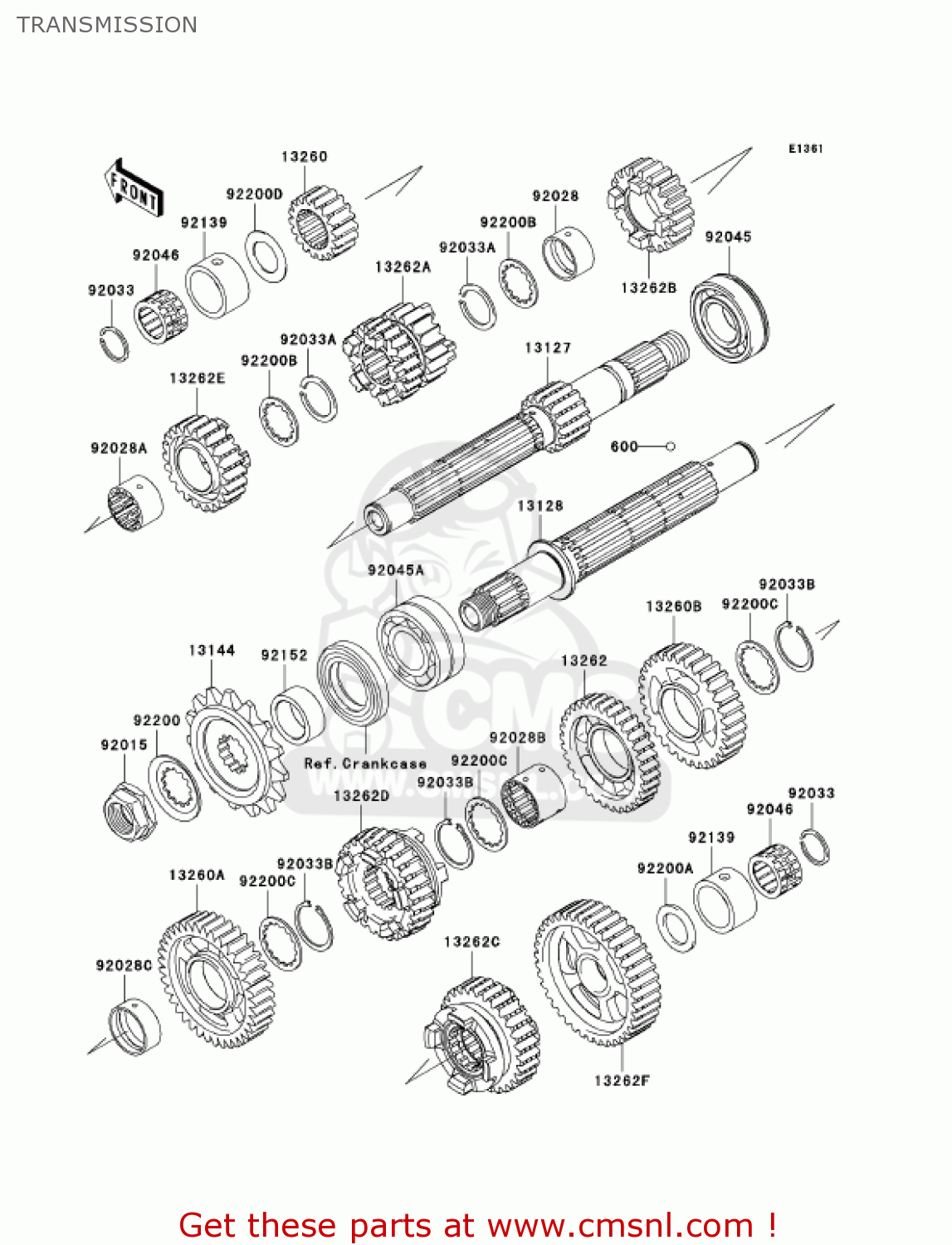

Transmission diagram ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
TRANSMISSION ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131270033
ref: 13127
SHAFT-TRANSMISSION IN
€ 240.00
13128
131280018
ref: 13128
SHAFT-TRANSMISSION OU
€ 220.00
13144
131441324
ref: 13144
SPROCKET-OUTPUT,15T
€ 40.00
13260
132601987
ref: 13260
GEAR,INPUT 2ND,18T
€ 99.50
13260A
132601992
ref: 13260A
GEAR,OUTPUT 2ND,37T
€ 168.00
13260B
132601993
ref: 13260B
GEAR,OUTPUT 3RD,31T
€ 133.00
13262
132620044
ref: 13262
GEAR,OUTPUT 4TH,33T
€ 333.50
13262A
132620143
ref: 13262A
GEAR,INPUT,3RD&4TH,18
€ 120.00
13262B
132620144
ref: 13262B
GEAR,INPUT,5TH,21T
€ 133.00
13262C
132620150
ref: 13262C
GEAR,OUTPUT 5TH,28T
€ 133.00
13262D
132620187
ref: 13262D
GEAR,OUTPUT 6TH,27T
€ 133.00
13262E
132620188
ref: 13262E
GEAR,INPUT 6TH,22T
€ 155.00
13262F
132620297
ref: 13262F
GEAR,OUTPUT,LOW,39T
€ 171.00
92015
920151963
ref: 92015
NUT,20MM
€ 10.50
92028
920281735
ref: 92028
BUSHING,INPUT 5TH GEA
€ 17.00
92028A
920281736
ref: 92028A
BUSHING,INPUT TOP GEA
€ 26.50
92028B
920281738
ref: 92028B
BUSHING,OUTPUT,3RD&4T
€ 26.50
92028C
920281739
ref: 92028C
BUSHING,OUTPUT,2ND
€ 17.00
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
920331037
ref: 92033B
SNAP RING,25.9X1.2T
€ 3.00
92045
920450009
ref: 92045
BEARING-BALL,HR6205C3
€ 28.00
92045A
92045035
ref: 92045A
BEARING-BALL,83993SH2
€ 66.50
92046
920460014
ref: 92046
BEARING-NEEDLE,BN5020
€ 17.50
92139
921391090
ref: 92139
BUSHING,27X34X18.6
€ 24.00
92152
921520280
ref: 92152
COLLAR,23X32X15
€ 11.00
92200
922001065
ref: 92200
WASHER
€ 4.50
92200A
922001238
ref: 92200A
WASHER,20.3X30X2.3
€ 3.50
92200B
922001239
ref: 92200B
WASHER,INPUT TOP&5TH
€ 5.00
92200C
922001240
ref: 92200C
WASHER,2ND,3RD,4TH
€ 7.00
92200D
922001613
ref: 92200D
WASHER,20.3X33X1.0
€ 4.00
