HANDLEBAR
ZX600N6F NINJA ZX6RR 2006 CALIFORNIA

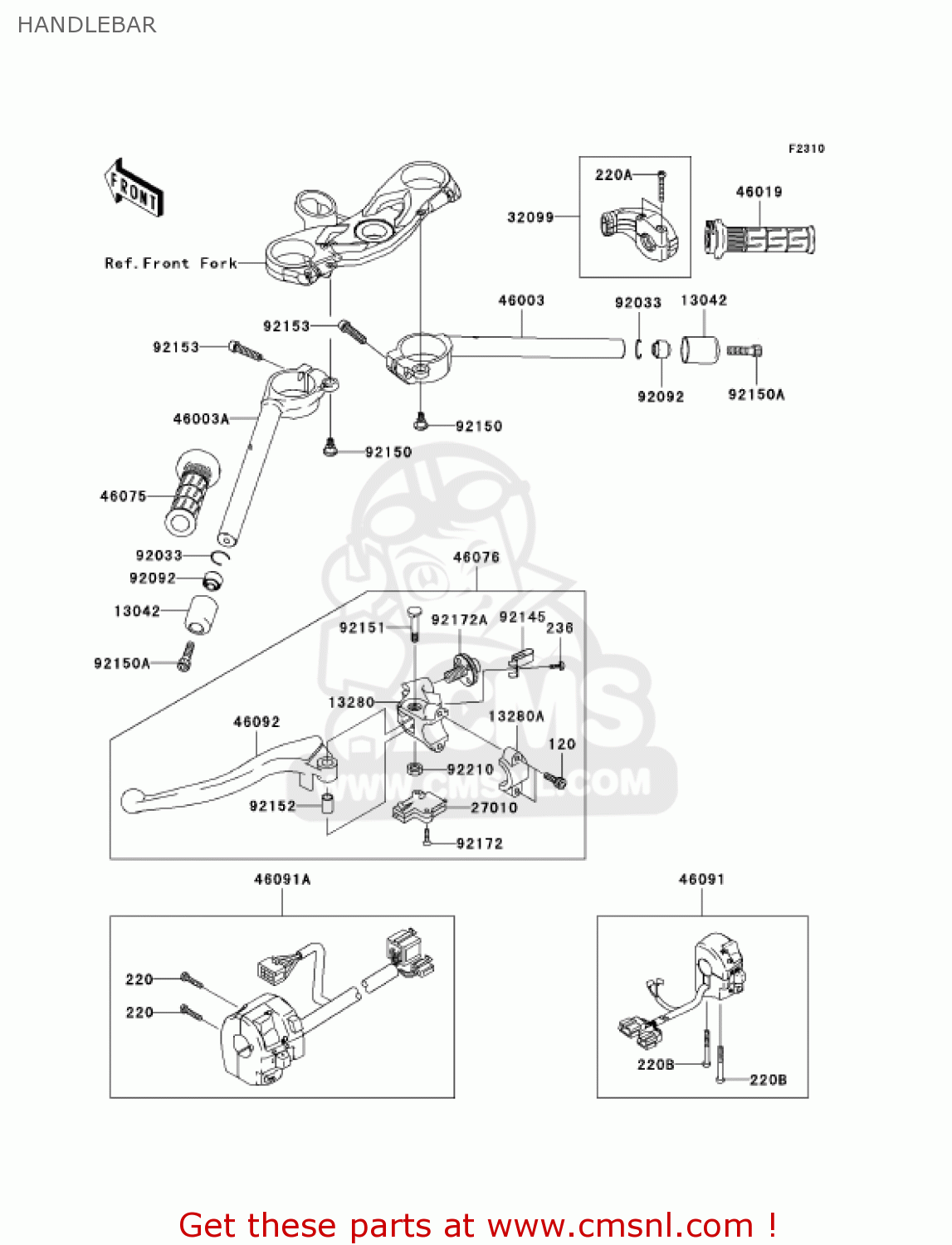

Handlebar diagram ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
HANDLEBAR ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120T0620
ref: 120
BOLT-SOCKET,6X20
€ 0.50
220
220C0525
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220C0535
ref: 220A
SCREW-PAN-CROS
€ 1.50
220B
220C0545
ref: 220B
SCREW-PAN-CROS
€ 1.50
236
236C0410
ref: 236
SCREW-PAN-WSP-CROS,4X
€ 1.00
13042
130421133
ref: 13042
WEIGHT, HANDLE
€ 40.50
13280
132800034
ref: 13280
HOLDER,CLUTCH LEVER
€ 38.00
13280A
132800035
ref: 13280A
HOLDER,CLUTCH LEVER
€ 30.00
27010
270101492
ref: 27010
SWITCH,CLUTCH
€ 25.00
32099
320991193
ref: 32099
CASE
€ 30.00
46003
460030068
ref: 46003
HANDLE,RH
€ 92.50
46003A
460031590
ref: 46003A
HANDLE,LH
€ 178.00
46019
460190001
ref: 46019
GRIP-ASSY,THROTTLE
€ 26.00
46075
460751144
ref: 46075
GRIP,LH
€ 11.50
46076
460760024
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 116.50
46091
460910040
ref: 46091
HOUSING-ASSY-CONTROL,
€ 131.50
46091A
460910054
ref: 46091A
HOUSING-ASSY-CONTROL,LH
€ 106.50
46092
460920006
ref: 46092
LEVER-GRIP,CLUTCH
€ 14.50
92033
920331102
ref: 92033
RING-SNAP,OD=22.2
€ 2.50
92092
920921075
ref: 92092
BUSHING-RUBBER,HANDLE
€ 7.50
92145
921451286
ref: 92145
SPRING
€ 4.50
92150
921501090
ref: 92150
BOLT,6MM
€ 5.00
92150A
921501604
ref: 92150A
BOLT,SOCKET,8X30
€ 3.50
92151
921511523
ref: 92151
BOLT
€ 5.00
92152
921520103
ref: 92152
COLLAR
€ 13.00
92153
921530907
ref: 92153
BOLT,SOCKET,8X35
€ 3.50
92172
921720183
ref: 92172
SCREW,3X16
€ 1.50
92172A
921721060
ref: 92172A
SCREW,ADJUST NUT
€ 29.50
92210
922100006
ref: 92210
NUT,LOCK,6MM
€ 2.00
