THROTTLE
ZX600N6F NINJA ZX6RR 2006 CALIFORNIA

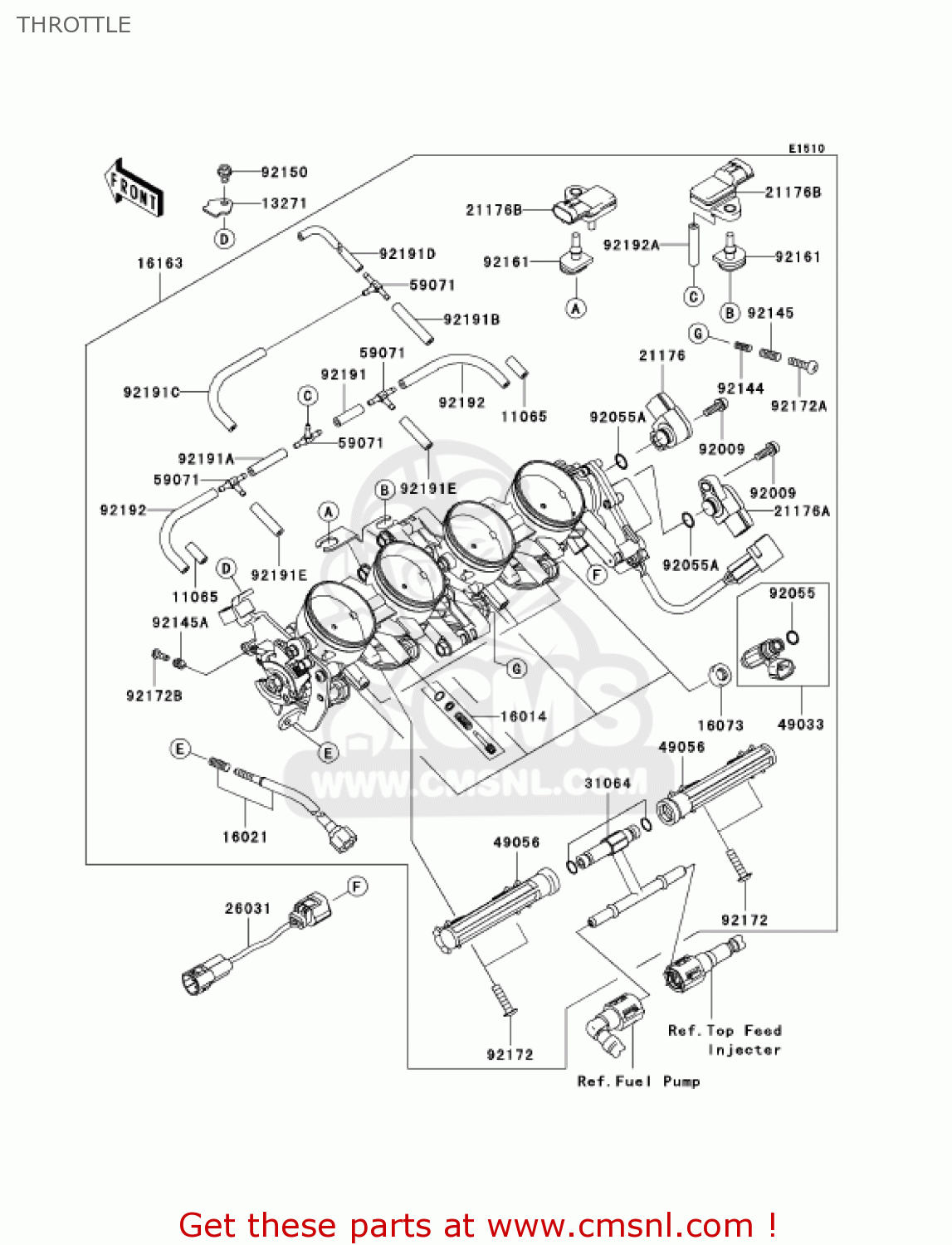

Throttle diagram ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
THROTTLE ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11065
110650018
ref: 11065
CAP
€ 4.00
13271
132710559
ref: 13271
PLATE
€ 2.00
16014
160140002
ref: 16014
SCREW-PILOT AIR
€ 17.50
16021
160210010
ref: 16021
SCREW-THROTTLE STOP
€ 95.50
16073
160733707
ref: 16073
INSULATOR
€ 4.00
16163
161630056
ref: 16163
THROTTLE-ASSY
€ 2,464.50
21176
211760001
ref: 21176
SENSOR,TPS,SUB
€ 192.50
21176A
211760002
ref: 21176A
SENSOR,TPS,MAIN
€ 188.00
21176B
211760058
ref: 21176B
SENSOR IAPS
€ 123.50
26031
260310288
ref: 26031
HARNESS
€ 25.50
31064
310640023
ref: 31064
PIPE-COMP,FUEL
€ 62.50
49033
490330006
ref: 49033
NOZZLE-INJECTION
€ 132.50
49056
490560001
ref: 49056
PIPE-INJECTION
€ 82.00
59071
590713752
ref: 59071
JOINT,3WAY,T
€ 6.00
92009
920091981
ref: 92009
SCREW,THROTTLE SENSOR
€ 1.50
92055
920551622
ref: 92055
RING-O,INJECTION NOZZ
€ 1.50
92055A
920551671
ref: 92055A
RING-O,THROTTLE SENSO
€ 2.50
92144
921441451
ref: 92144
SPRING
€ 7.00
92145
921450055
ref: 92145
SPRING,THROTTLE SYNCR
€ 8.00
92145A
921450294
ref: 92145A
SPRING
€ 13.00
92150
921501406
ref: 92150
BOLT
€ 2.00
92161
921610041
ref: 92161
DAMPER
€ 3.00
92172
921720064
ref: 92172
SCREW,PIPE INJECTION
€ 2.00
92172A
921720065
ref: 92172A
SCREW,THROTTLE SYNCRO
€ 2.00
92172B
921720129
ref: 92172B
SCREW
€ 3.50
92191
921910020
ref: 92191
TUBE
€ 1.50
92191A
921910021
ref: 92191A
TUBE
€ 2.00
92191B
921910022
ref: 92191B
TUBE
€ 2.00
92191C
921910023
ref: 92191C
TUBE
€ 2.50
92191D
921910024
ref: 92191D
TUBE,3X7X153
€ 4.00
92191E
921910025
ref: 92191E
TUBE
€ 1.50
92192
921920018
ref: 92192
TUBE,3X7X95
€ 2.50
92192A
921920192
ref: 92192A
TUBE,(3X7,3.5X7.5)X35
€ 1.50
