STARTER MOTOR
ZX600N6F NINJA ZX6RR 2006 CALIFORNIA

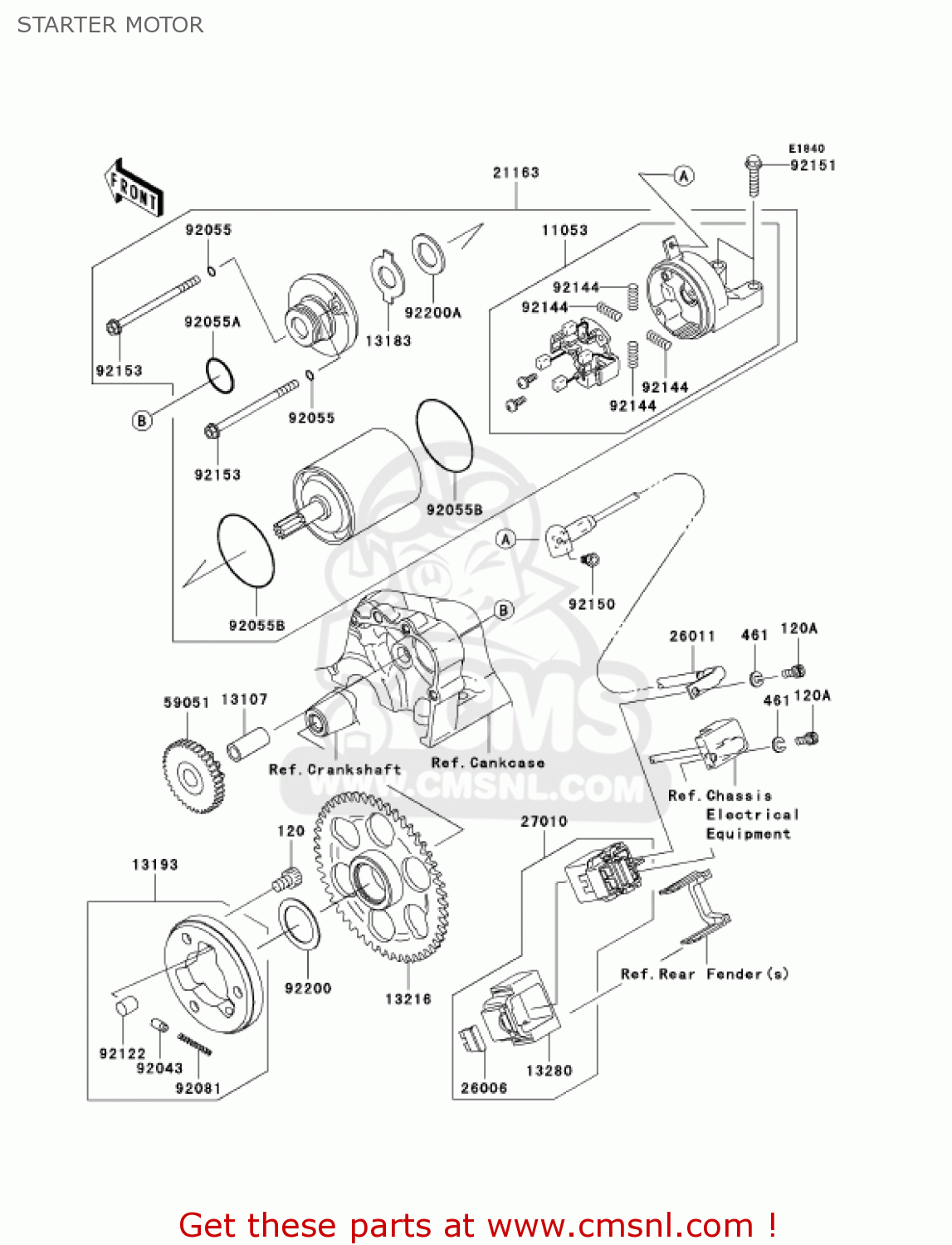

Starter motor diagram ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
STARTER MOTOR ZX600N6F NINJA ZX6RR 2006 CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120P0812
ref: 120
BOLT,SOCKET,8X12
€ 2.50
120A
120S0510
ref: 120A
BOLT-SOCKET
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
11053
110530224
ref: 11053
BRACKET,STARTER
€ 148.00
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
€ 6.50
13183
131831460
ref: 13183
PLATE
€ 9.00
13193
131930001
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 129.50
13216
132160011
ref: 13216
GEAR-COMP,ONEWAY CLUT
€ 149.50
13280
132800109
ref: 13280
HOLDER,SWITCH
€ 9.00
21163
211630006
ref: 21163
STARTER-ELECTRIC
€ 667.50
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26011
260110065
ref: 26011
WIRE-LEAD
€ 58.00
27010
270100030
ref: 27010
SWITCH,MAGNETIC
€ 119.00
59051
590511413
ref: 59051
GEAR-SPUR,IDLE
€ 51.00
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920550013
ref: 92055
RING-O,STARTER
€ 8.50
92055A
920551262
ref: 92055A
RING-O,24.4X3.1
€ 8.50
92055B
920551455
ref: 92055B
RING-O
€ 9.50
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
92144
921441423
ref: 92144
SPRING,BRUSH
€ 3.00
92150
921501305
ref: 92150
BOLT
€ 3.00
92151
921511930
ref: 92151
BOLT,6X25
€ 2.00
92153
921530405
ref: 92153
BOLT
€ 15.50
92200
922000168
ref: 92200
WASHER,28.5X40.0X1.0
€ 2.50
92200A
922001019
ref: 92200A
WASHER
€ 5.00
