SWINGARM
ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP

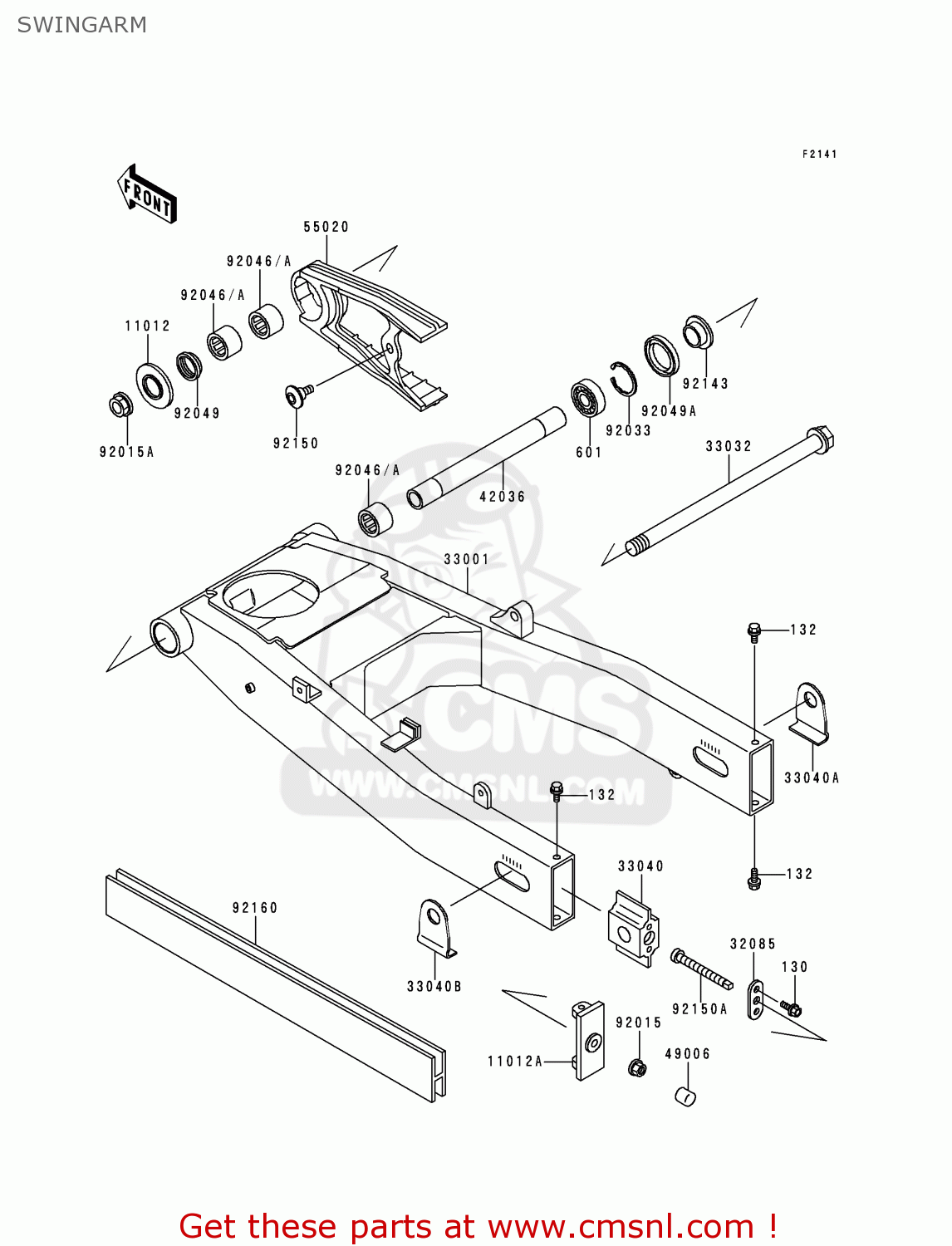

Swingarm diagram ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
SWINGARM ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
×
prices are in EUR
ref
part #
description
quantity
130
130H0614
ref: 130
BOLT-FLANGED,6X14
€ 0.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
601
601A6004
ref: 601
BEARING-BALL,#6004
€ 13.00
11012
110121658
ref: 11012
CAP
€ 5.50
11012A
110121704
ref: 11012A
CAP,CHAIN ADJUSTER
€ 26.00
32085
320851351
ref: 32085
STOPPER,CHAIN ADJUSTE
€ 3.50
33001
330011488TX
ref: 33001
ARM-COMP-SWING,SILVER
€ 959.00
33032
330321165
ref: 33032
SHAFT-SWING ARM
€ 75.00
33040
330401133
ref: 33040
ADJUSTER-CHAIN,INSIDE
€ 29.50
33040A
330401135
ref: 33040A
ADJUSTER-CHAIN,OUTSID
€ 4.50
33040B
330401141
ref: 33040B
ADJUSTER-CHAIN,OUTSID
€ 5.50
42036
420361283
ref: 42036
SLEEVE,SWING ARM,L=21
€ 62.00
49006
490061218
ref: 49006
FG
BOOT
€ 3.50
55020
550201524
ref: 55020
GUARD,CHAIN
€ 48.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151724
ref: 92015A
NUT,FLANGED,20MM
€ 10.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
€ 7.50
92049A
920491314
ref: 92049A
SEAL-OIL,MHSA25 42 6
€ 9.00
92143
921431227
ref: 92143
COLLAR,SWING ARM,L=12
€ 7.50
92150
921501154
ref: 92150
BOLT,SOCKET,6MM
€ 5.00
92150A
921501285
ref: 92150A
BOLT,CHAIN ADJUSTER
€ 6.00
92160
921601174
ref: 92160
DAMPER,SWING ARM
€ 20.00
