METER(S)(ZX600-E4)

ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP

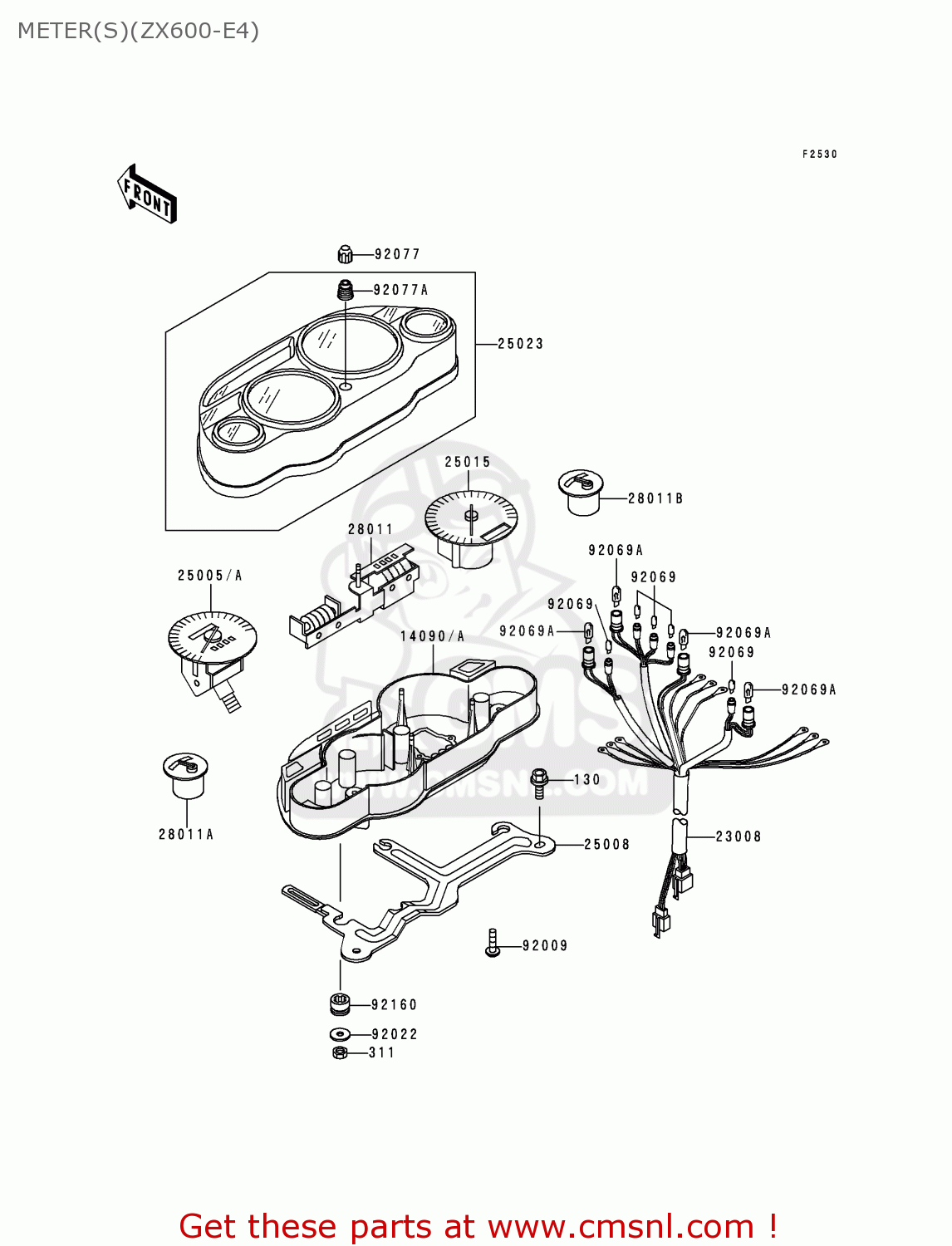

Meter(s)(zx600-e4) diagram ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP

METER(S)(ZX600-E4) ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
METER(S)(ZX600-E4) ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
METER(S)(ZX600-E4) ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
14090
140901286
ref: 14090
EUFGNLSPUK
COVER,METER HOUSING
140901286
€ 122.50
14090A
140901287
ref: 14090A
FR
COVER,METER HOUSING
€ 123.50
23008
230081504
ref: 23008
SOCKET-ASSY,METER
€ 88.50
25005
250051529
ref: 25005
EUFGFRNLSP
SPEEDOMETER,KPH
€ 205.50
25005A
250051530
ref: 25005A
UK
SPEEDOMETER,MPH
€ 205.50
25008
250081195
ref: 25008
BRACKET-METER
250081195
€ 59.50
25015
250151318
ref: 25015
TACHOMETER,X1000R/MIN
250151318
€ 166.50
25023
250231201
ref: 25023
COVER-METER CASE,UPP
€ 104.50
28011
280111130
ref: 28011
METER,TRIP
€ 91.50
28011A
280111131
ref: 28011A
METER,FUEL
280111131
€ 91.00
28011B
280111132
ref: 28011B
METER,TEMP
280111132
€ 108.00
92009
920091503
ref: 92009
SCREW,TAPPING,4X14
920091503
€ 2.50
92022
920221369
ref: 92022
WASHER,6.2X18X1.2
€ 0.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
920691059
€ 2.50
92077
920771094
ref: 92077
KNOB,TRIP RESET
920771094
€ 5.00
92077A
920771112
ref: 92077A
KNOB,TRIP RESET
920771112
€ 4.00
92160
921601436
ref: 92160
DAMPER
921601436
€ 4.50
