FRAME FITTINGS

ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP

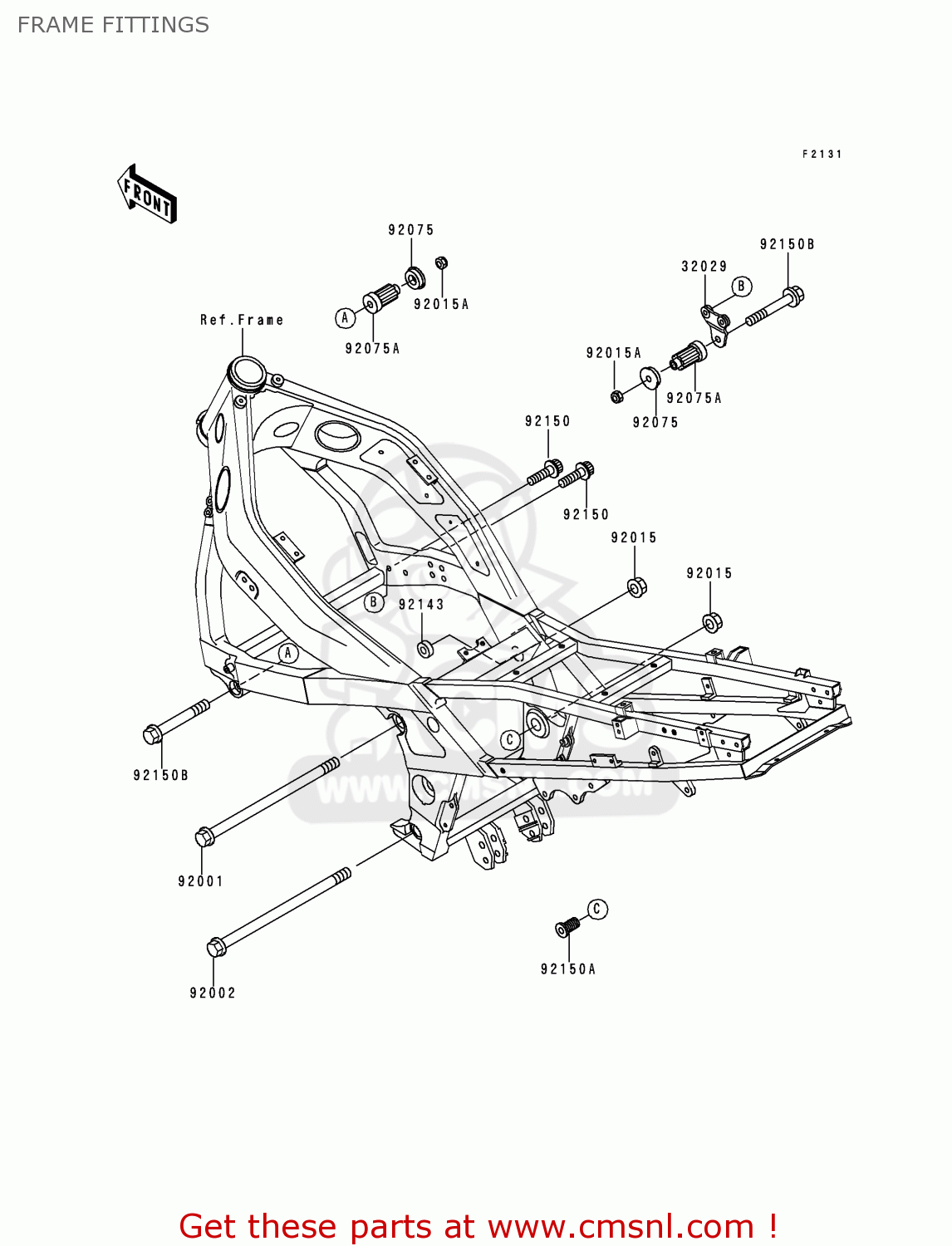

Frame fittings diagram ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP

prices are in EUR

ref

part #

description

quantity

32029

320291888
ref: 32029

BRACKET-ENGINE,FR,RH

€ 17.50

92001

920011835
ref: 92001

BOLT,FLANGED,10X145

€ 11.50

92002

920021197
ref: 92002

BOLT,10X220

€ 14.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151189
ref: 92015A

NUT,LOCK,10MM,BLACK

€ 4.50

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751739
ref: 92075A

DAMPER,ENGINE MOUNT,M

€ 32.50

92143

921431664
ref: 92143

COLLAR,ENGINE MOUNT

€ 5.50

92150

921501155
ref: 92150

BOLT,SOCKET,8X20

€ 3.50

92150A

921501264
ref: 92150A

BOLT,20X30

€ 13.50

92150B

921501804
ref: 92150B

BOLT,FLANGED,10X87

€ 7.50
