Genuine ZX Kawasaki Parts delivered quickly!


REAR MASTER CYLINDER

ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP

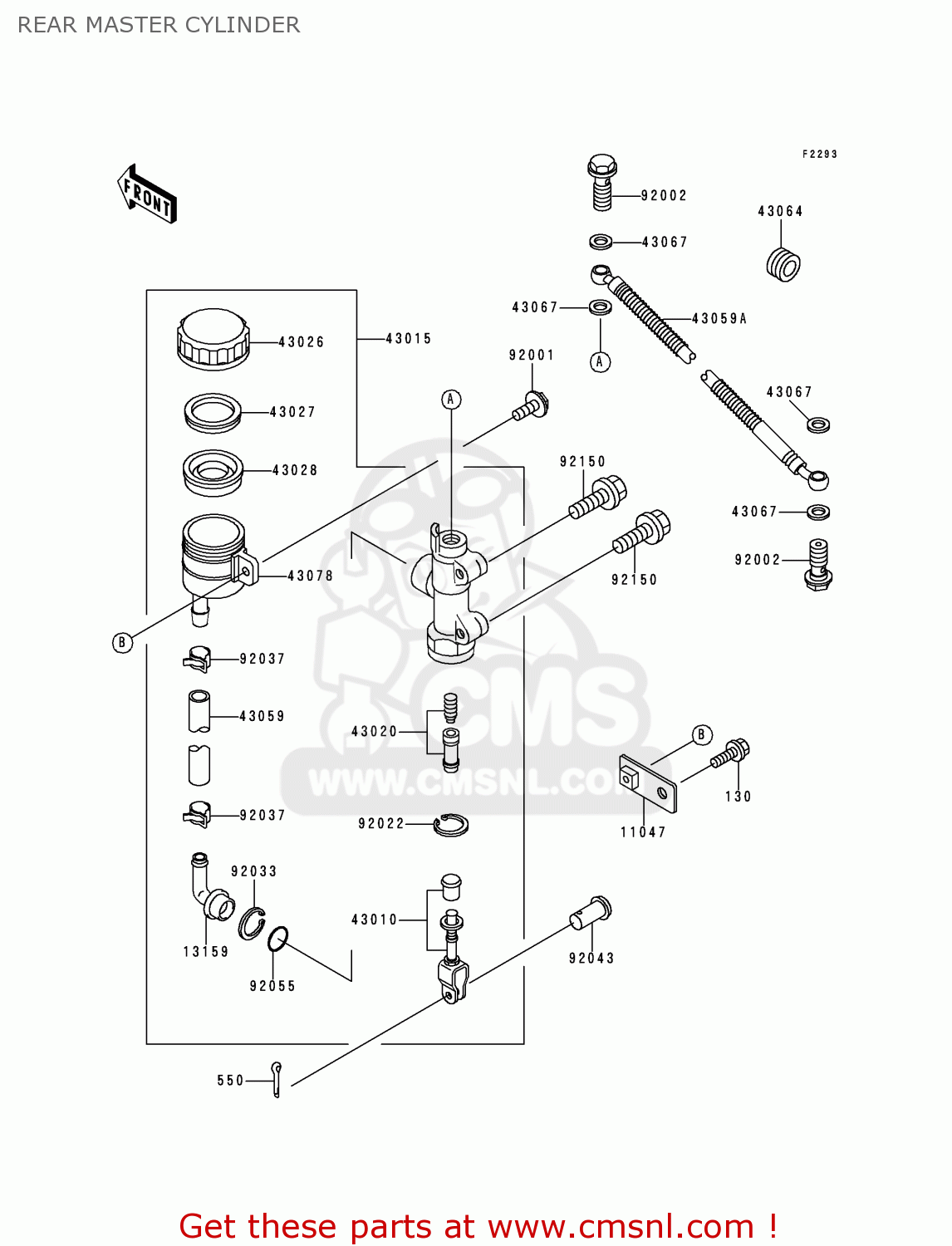

Rear master cylinder diagram ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP

REAR MASTER CYLINDER ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
REAR MASTER CYLINDER ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
REAR MASTER CYLINDER ZX600E4 ZZR600 1996 EUROPE UK FR NL FG SP
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
11047
110471940
ref: 11047
BRACKET,RESERVOIR TAN
110471940
€ 5.50
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43015
430151510
ref: 43015
CYLINDER-ASSY-MASTER,
€ 353.00
43020
430201073
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591566
ref: 43059
HOSE-BRAKE,RR MASTER
430591566
€ 30.00
43059A
430591819
ref: 43059A
HOSE-BRAKE,RR
€ 64.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
43064006
€ 2.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781082
ref: 43078
RESERVOIR, RR MASTER
430781082
€ 19.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501843
ref: 92150
BOLT
921501843
€ 2.50
