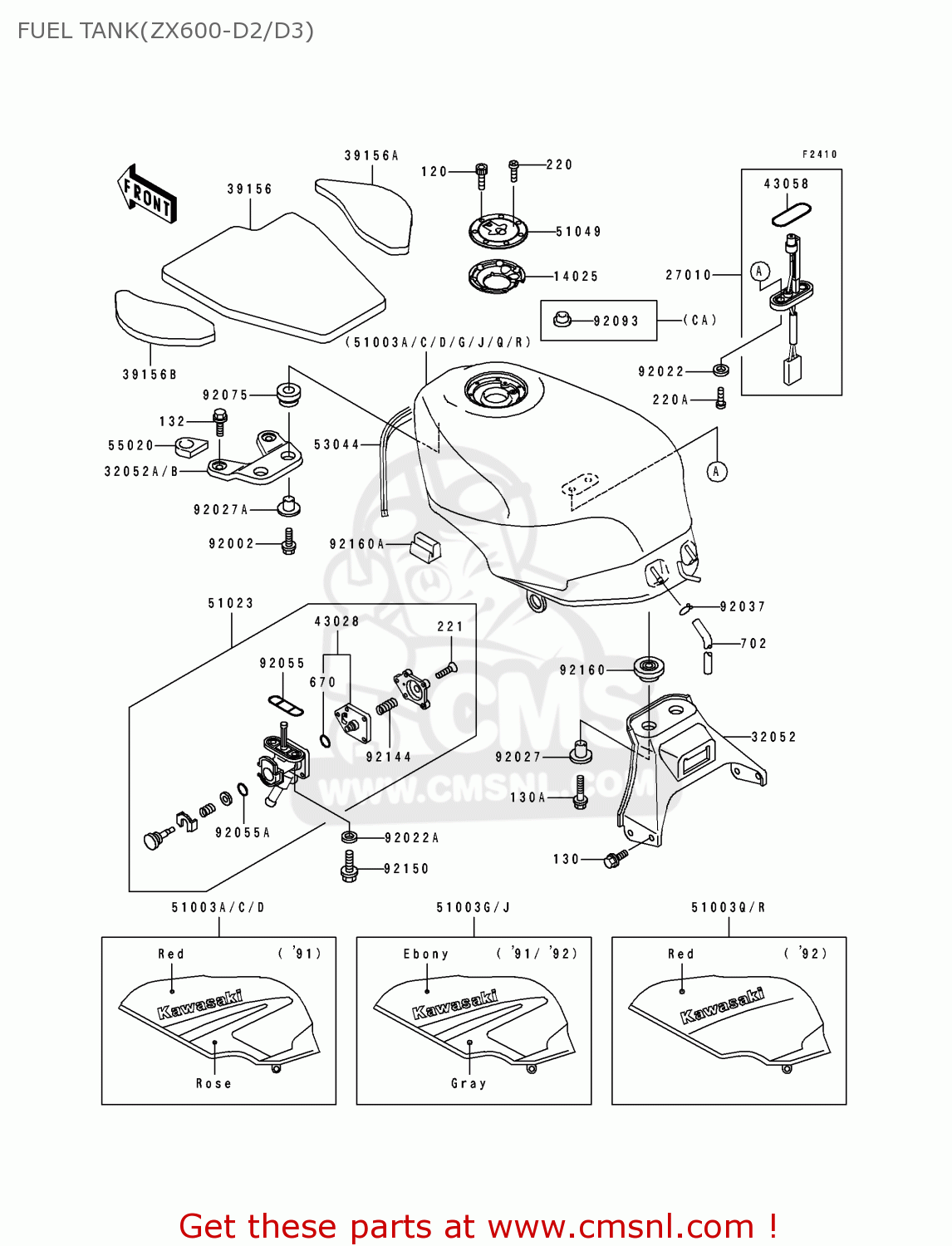

FUEL TANK(ZX600-D2/D3)

ref

part #

description

quantity

14025

140251913
ref: 14025

COVER,TANK CAP

€ 13.50

27010

270101096
ref: 27010

SWITCH,FUEL LEVEL

€ 109.50

32052

320521302
ref: 32052

BRACKET-TANK,RR

€ 22.50

32052A

320521303GD
ref: 32052A
CN

BRACKET-TANK,FR,G.GRA

€ 9.00

32052B

320521303HN
ref: 32052B
CAUS

TANK BRACKET,FRONT,GRAY

€ 9.00

39156

391561204
ref: 39156

PAD,FUEL TANK,CNT

€ 17.50

39156A

391561205
ref: 39156A

PAD,FUEL TANK,RH

€ 8.50

39156B

391561206
ref: 39156B

PAD,FUEL TANK,LH

€ 8.50

43028

430281068
ref: 43028

DIAPHRAGM,TAP

€ 32.50

43058

430581004
ref: 43058

O RING,FUEL LEVL SW

€ 5.50

51003G

510035188H8
ref: 51003G
CNUS

TANK-COMP-FUEL,EBONY

€ 712.50

51003J

510035226H8
ref: 51003J
CA

FUEL TANK,COMPLETE,EBONY

€ 400.50

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

220

220C0508
ref: 220

SCREW-PAN-CROS

€ 1.00

220A

220X0514
ref: 220A

SCREW-PAN-CROS

€ 1.50

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

702

702A07400
ref: 702

TUBE,RUBBER

€ 9.50

51003Q

510035425TF
ref: 51003Q
US

TANK-COMP-FUEL,C.W.RE

€ 696.00

51003R

510035426TF
ref: 51003R
CA

FUEL TANK,COMPLETE,CANDY WINE RED

€ 400.50

51023

510231171
ref: 51023

TAP-ASSY,FUEL

€ 75.50

51049

510491079
ref: 51049

CAP-TANK,FUEL

€ 106.50

53044

530441203
ref: 53044

TRIM,L=720

€ 19.00

55020

550201402
ref: 55020

GUARD,FUEL TANK BRACK

€ 4.50

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92022

920221023
ref: 92022

WASHER,5.2X10X1.5

€ 2.50

92022A

92022183
ref: 92022A

WASHER,6.2X11X1.5

€ 2.50

92027

920271847
ref: 92027

COLLAR,6=16.1

€ 4.00

92027A

92027251
ref: 92027A

COLLAR,L=13.1

€ 1.00

92037

92037010
ref: 92037

CLAMP-FUEL PIPE

€ 2.50

92055

920551112
ref: 92055

RING-/,FUEL TAP PACKI

€ 3.00

92055A

920551377
ref: 92055A

RING-O,TAP BOTTOM

€ 2.50

92075

920751690
ref: 92075

DAMPER,10X24X12

€ 3.00

92093

920931030
ref: 92093
CA

OIL SEAL,FUEL TANK CA

€ 5.00

92144

921441119
ref: 92144

SPRING,TAP DIAPHRAGM

€ 2.00

92150

921501358
ref: 92150

BOLT,FLANGED,6X16

€ 2.50

92160

921601046
ref: 92160

DAMPER

€ 3.50

92160A

921601197
ref: 92160A

DAMPER

€ 4.50

all assemblies
