FENDER

ZX600D3 NINJA ZX6 1992 USA CALIFORNIA CANADA

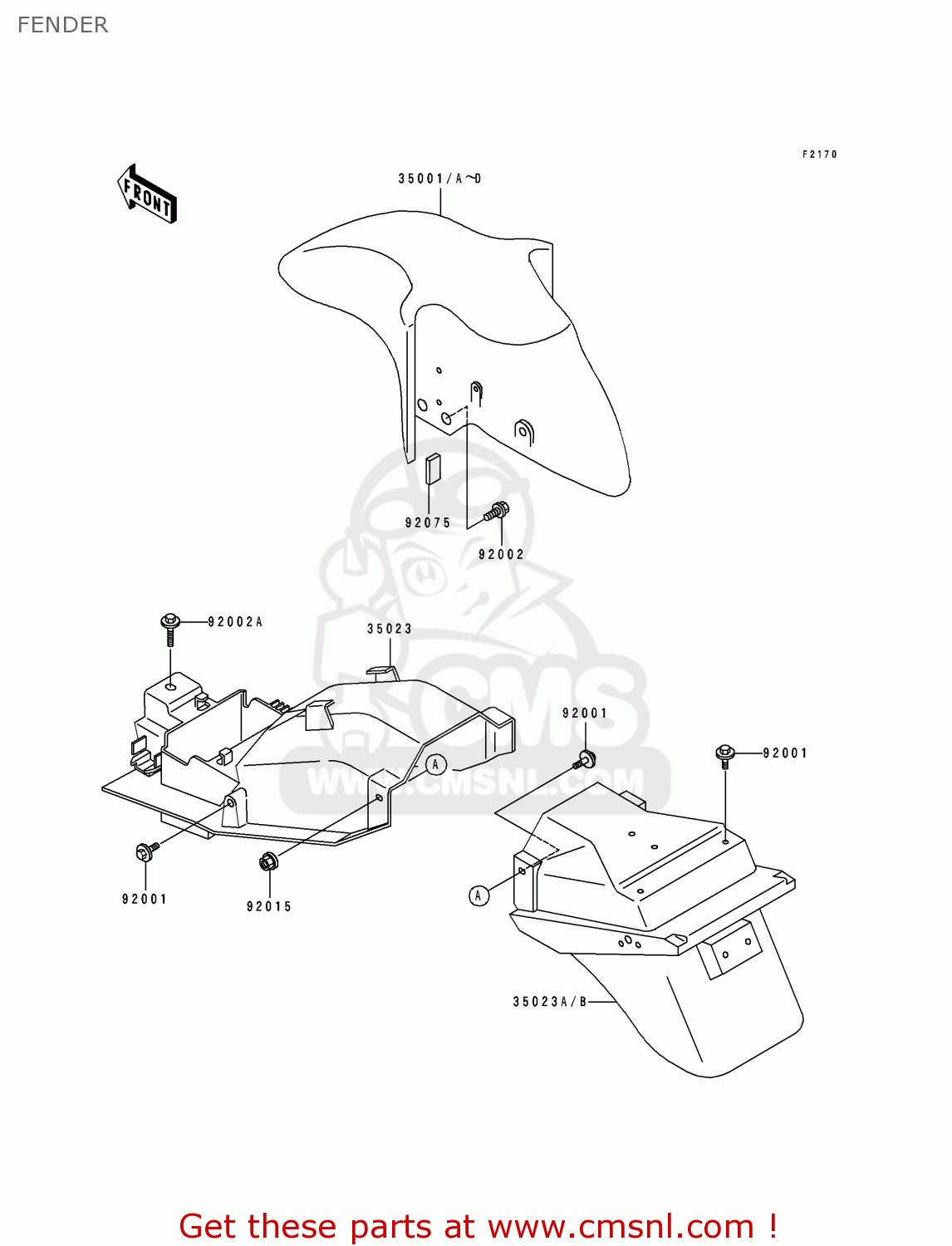

Fender diagram ZX600D3 NINJA ZX6 1992 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

35001A

350011147H8
ref: 35001A

FENDER-ASSY-FRONT,EBO

€ 125.00

35001C

350011147TF
ref: 35001C
CAUS

FRONT FENDER ASSEMBLY,CANDY WINE RED

€ 67.50

35023

350231266
ref: 35023

FENDER-REAR,FR

€ 59.00

35023A

350231268
ref: 35023A
CNUS

REAR FENDER,REAR

€ 81.50

35023B

350231271
ref: 35023B
CA

REAR FENDER,REAR

€ 81.50

92001

920011950
ref: 92001

BOLT,6X16

€ 2.50

92002

920021200
ref: 92002

BOLT,FLANGED,8X16

€ 3.00

92002A

920021407
ref: 92002A

BOLT,6X25

€ 2.00

92015

920151237
ref: 92015

NUT,FLANGED,6MM,BLACK

€ 3.50

92075

920751902
ref: 92075

DAMPER

€ 3.00
