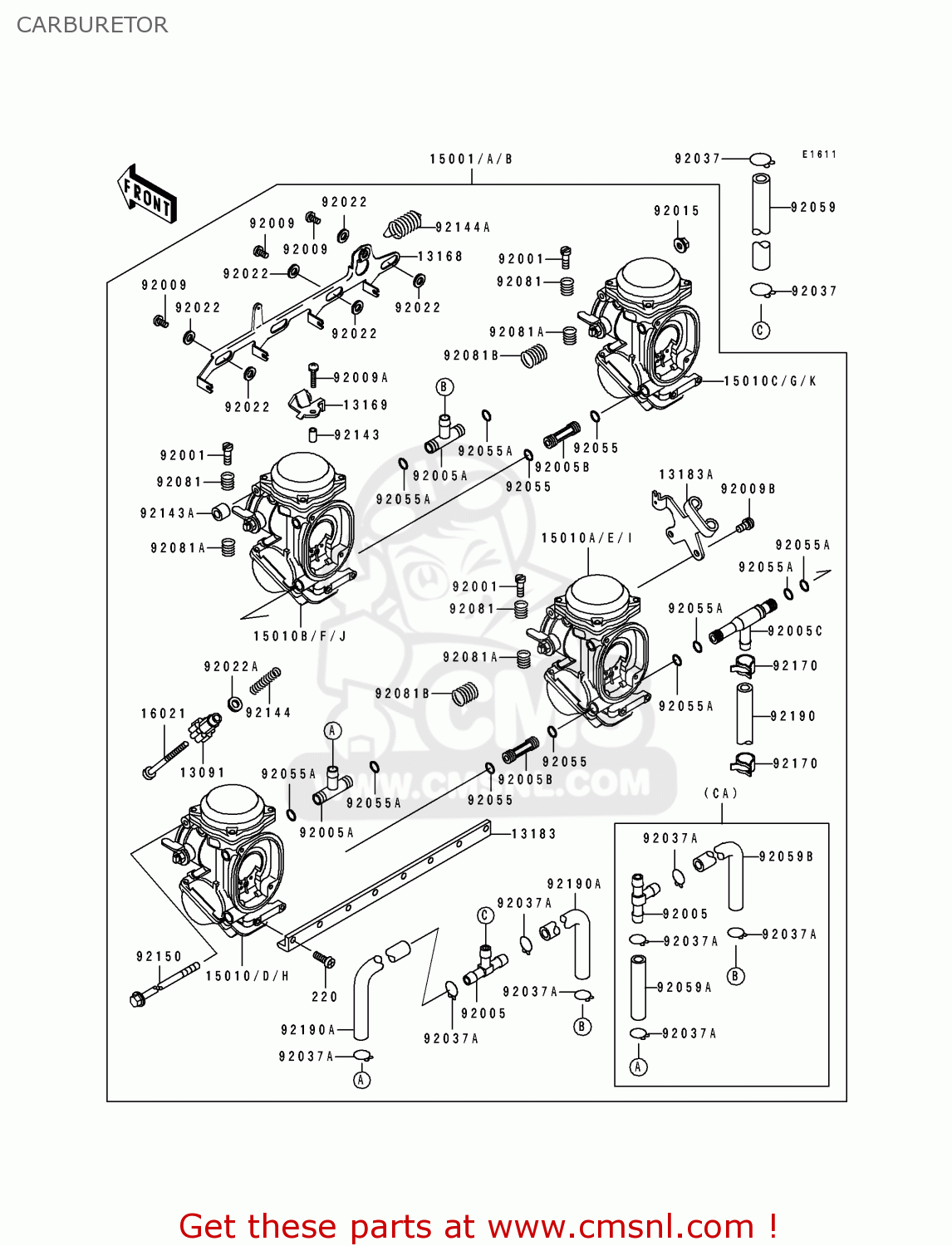

CARBURETOR

ref

part #

description

quantity

13091

130911382
ref: 13091

HOLDER,THROTTLE STOP

€ 11.00

13168

131681405
ref: 13168

LEVER,STARTER

€ 87.00

13169

131691965
ref: 13169

PLATE,STARTER CABLE

€ 26.50

13183

131831608
ref: 13183

PLATE,CARBURETOR STAY

€ 61.50

13183A

131831610
ref: 13183A

PLATE,THROTTLE CABLE

€ 56.00

15001

150011591
ref: 15001
US

CARBURETOR ASSEMBLY

€ 1,027.50

15001A

150011593
ref: 15001A
CA

CARBURETOR ASSEMBLY

€ 1,027.50

15001B

150011594
ref: 15001B
CN

CARBURETOR-ASSY

€ 1,684.50

15010

150101113
ref: 15010
CN

CARBURETOR,LH,OUTSIDE

€ 513.00

15010A

150101114
ref: 15010A
CN

CARBURETOR,LH,INSIDE

€ 513.00

15010B

150101115
ref: 15010B
CN

CARBURETOR,RH,INSIDE

€ 513.00

15010C

150101116
ref: 15010C
CN

CARBURETOR,RH,OUTSIDE

€ 513.00

15010D

150101117
ref: 15010D
US

CARBURETOR,OUTSIDE,LH

€ 269.50

15010E

150101118
ref: 15010E
US

CARBURETOR,INSIDE,LH

€ 331.50

15010F

150101119
ref: 15010F
US

CARBURETOR,INSIDE,RH

€ 331.50

15010G

150101120
ref: 15010G
US

CARBURETOR,OUTSIDE,RH

€ 354.00

15010H

150101121
ref: 15010H
CA

CARBURETOR,OUTSIDE,LH

€ 331.50

15010I

150101122
ref: 15010I
CA

CARBURETOR,INSIDE,LH

€ 331.50

15010J

150101123
ref: 15010J
CA

CARBURETOR,INSIDE,RH

€ 331.50

15010K

150101124
ref: 15010K
CA

CARBURETOR,OUTSIDE,RH

€ 331.50

16021

160211122
ref: 16021

SCREW-THROTTLE STOP

€ 4.00

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051119
ref: 92005

FITTING,T-TYPE

€ 17.50

92005A

920051125
ref: 92005A

FITTING,T-TYPE

€ 18.00

92005B

920051157
ref: 92005B

FITTING

€ 25.00

92005C

920051214
ref: 92005C

FITTING,T-TYPE

€ 19.00

92009

920091262
ref: 92009

SCREW

€ 4.00

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

92009A

920091446
ref: 92009A

SCREW,4X18

€ 4.00

92009B

920091597
ref: 92009B

SCREW

€ 4.50

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371104
ref: 92037
CNUS

CLAMP,HOSE

€ 1.00

92037A

920371194
ref: 92037A

CLAMP,TUBE,TAP DIAPRM

€ 4.00

92055

920551004
ref: 92055

O RING

€ 2.50

92055A

920551223
ref: 92055A

RING-O,FUEL FITTING

€ 3.50

92059

920591406
ref: 92059
CNUS

TUBE 7X12X390 GREEN

€ 28.00

92059A

920591612
ref: 92059A
CA

TUBE,11X7X55

€ 17.00

92059B

920591863
ref: 92059B
CA

TUBE,7X11X220

€ 17.00

92081

920811620
ref: 92081

SPRING,THROTTLE ADJUS

€ 3.00

92081A

920811621
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811622
ref: 92081B

SPRING,THROTTLE ADJUS

€ 6.50

92143

921431265
ref: 92143

COLLAR,4X5.2X9.6

€ 3.00

92143A

921431438
ref: 92143A

COLLAR

€ 6.50

92144

921441539
ref: 92144

SPRING,THROTTLE ADJUS

€ 3.00

92144A

921441540
ref: 92144A

SPRING,STATER LEVER

€ 13.00

92150

921501416
ref: 92150

BOLT

€ 22.00

92170

921701054
ref: 92170

CLAMP,TUBE

€ 5.00

92190

921901063
ref: 92190

TUBE,7.3X12.5X380

€ 25.00

92190A

921901069
ref: 92190A
CNUS

TUBE,7X11X127

€ 22.00

all assemblies
