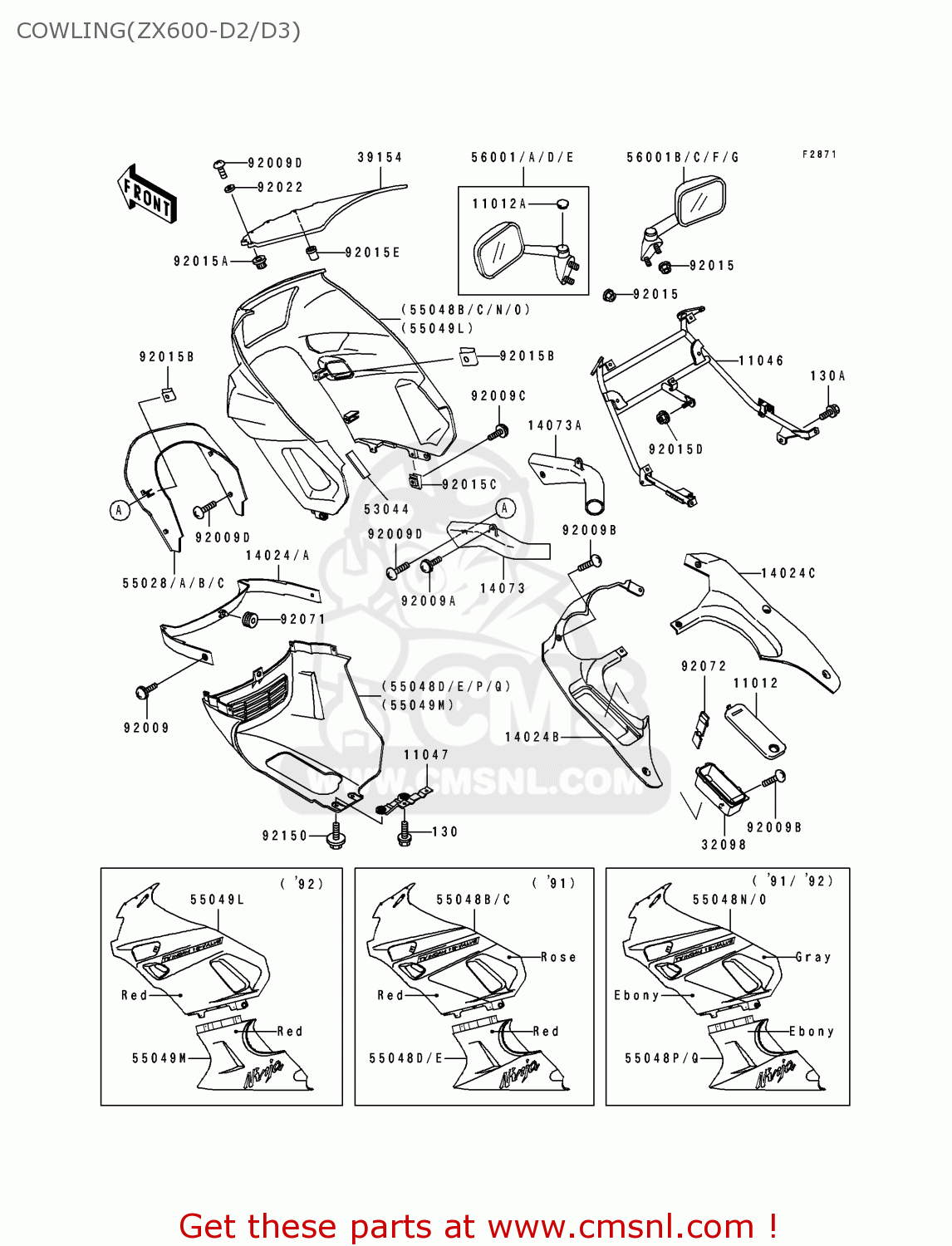

COWLING(ZX600-D2/D3)

ref

part #

description

quantity

11012

110121735
ref: 11012

CAP,INNER COWLING,LH

€ 18.50

11012A

1101217516Z
ref: 11012A

CAP,MIRROR,BLACK

€ 2.50

11046

110461962
ref: 11046

BRACKET,COWLING

€ 223.50

11047

110471091
ref: 11047

BRACKET,LWR COWLING

€ 17.00

14024

140241877GD
ref: 14024
CN

COVER,COWLING,CNT,G.G

€ 79.00

14024A

140241877HN
ref: 14024A
CAUS

COVERCOWLING CNTGGRAY

€ 76.50

14024B

140241901
ref: 14024B

COVER,INNER COWLING,L

€ 67.00

14024C

140241902
ref: 14024C

COVER,INNER COWLING,R

€ 64.00

14073

140731426
ref: 14073

DUCT,AIR INTAKE,LH

€ 25.50

14073A

140731427
ref: 14073A

DUCT,AIR INTAKE,RH

€ 12.50

32098

320981093
ref: 32098

CASE-TOOL

€ 24.00

39154

391541109
ref: 39154

WINDSHIELD

€ 167.00

53044

530441218
ref: 53044

TRIM,L=80

€ 3.00

55028A

550281244H8
ref: 55028A

COWLING,FR,EBONY

€ 113.00

55028C

550281244TF
ref: 55028C
CAUS

COWLING,FRONT,CANDY WINE RED

€ 62.50

55048N

550485482JP
ref: 55048N
CAUS

COWLING.,UPP,EBONY/GR

€ 721.00

55048O

550485482T4
ref: 55048O
CN

COWLING.,UPP,EBONY/GR

€ 765.50

55048P

550485483JP
ref: 55048P
CAUS

COWLING.,LWR,EBONY/GR

€ 328.50

55048Q

550485483T4
ref: 55048Q
CN

COWLING.,LWR,EBONY/GR

€ 356.00

55049L

550495096TF
ref: 55049L
CAUS

COWLING.,UPP,C.W.RED

€ 891.00

55049M

550495097TF
ref: 55049M
CAUS

COWLING,LWR,C.W.RED

€ 423.50

56001D

560011394H3
ref: 56001D
CAUS

MIRROR-ASSY,LH,C.W.RE

€ 123.50

56001E

560011394H8
ref: 56001E

MIRROR-ASSY,LH,EBONY

€ 115.50

56001F

560011395H3
ref: 56001F
CAUS

MIRROR-ASSY,RH,C.W.RE

€ 115.00

56001G

560011395H8
ref: 56001G

MIRROR-ASSY,RH,EBONY

€ 115.50

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0812
ref: 130A

BOLT-FLANGED

€ 0.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92009A

920091288
ref: 92009A

SCREW,6X14

€ 2.00

92009B

920091611
ref: 92009B

SCREW,6X14

€ 2.50

92009C

920091621
ref: 92009C

SCREW

€ 1.50

92009D

920091654
ref: 92009D

SCREW

€ 0.50

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92015A

920151343
ref: 92015A

NUT,5MM,COWLING

€ 3.00

92015B

920151573
ref: 92015B

NUT,5MM

€ 4.50

92015C

920151602
ref: 92015C

NUT,6MM

€ 4.50

92015D

920151696
ref: 92015D

NUT,FLANGED,LOCK,8MM

€ 3.00

92015E

920151757A
ref: 92015E

NUT,5MM

€ 5.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92072

920721235
ref: 92072

BAND,L=300

€ 12.00

92150

921501133
ref: 92150

BOLT,6X14

€ 2.50
