TURN SIGNAL

ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

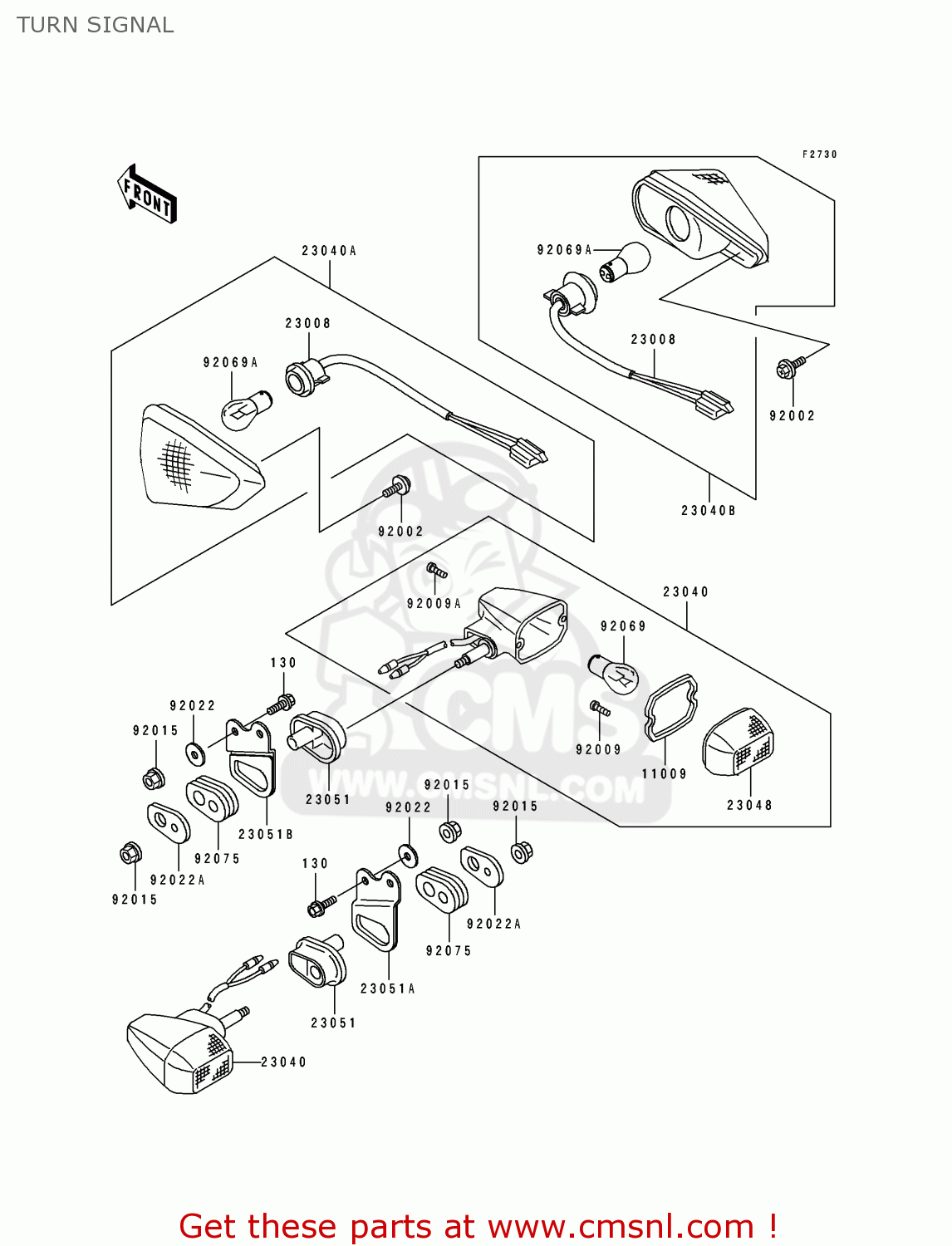

Turn signal diagram ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

TURN SIGNAL ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA
TURN SIGNAL ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA
TURN SIGNAL ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
11009
110091402
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091402
€ 3.50
23008
230081464
ref: 23008
SOCKET-ASSY,SIGNAL LA
€ 17.00
23040
230401116
ref: 23040
LAMP-SIGNAL
230401116
€ 42.50
23040A
230401213
ref: 23040A
LAMP-SIGNAL,FR,LH
230401213
€ 59.50
23040B
230401214
ref: 23040B
LAMP-SIGNAL,FR,RH
230401214
€ 59.50
23048
230481054
ref: 23048
LENS-SIGNAL LAMP
230481054
€ 12.00
23051
230511168
ref: 23051
BRACKET-SIGNAL LAMP,R
230511168
€ 16.00
23051A
230511211
ref: 23051A
BRACKET-SIGNAL LAMP,R
230511211
€ 9.00
23051B
230511212
ref: 23051B
BRACKET-SIGNAL LAMP,R
€ 9.50
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92009
920091115
ref: 92009
SCREW,TAPPING,3X16
920091115
€ 2.00
92009A
920091304
ref: 92009A
SCREW,4X20
920091304
€ 3.00
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
920151237
€ 3.50
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022A
920221672
ref: 92022A
WASHER,SIGNAL LAMP
920221672
€ 3.50
92069
92069055
ref: 92069
BULB 12V 32CP
92069055
€ 4.50
92069A
92069060
ref: 92069A
BULB.12V 23/8W
92069060
€ 5.00
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
920751698
€ 6.00
