Genuine ZX Kawasaki Parts delivered quickly!


CYLINDER HEAD

ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

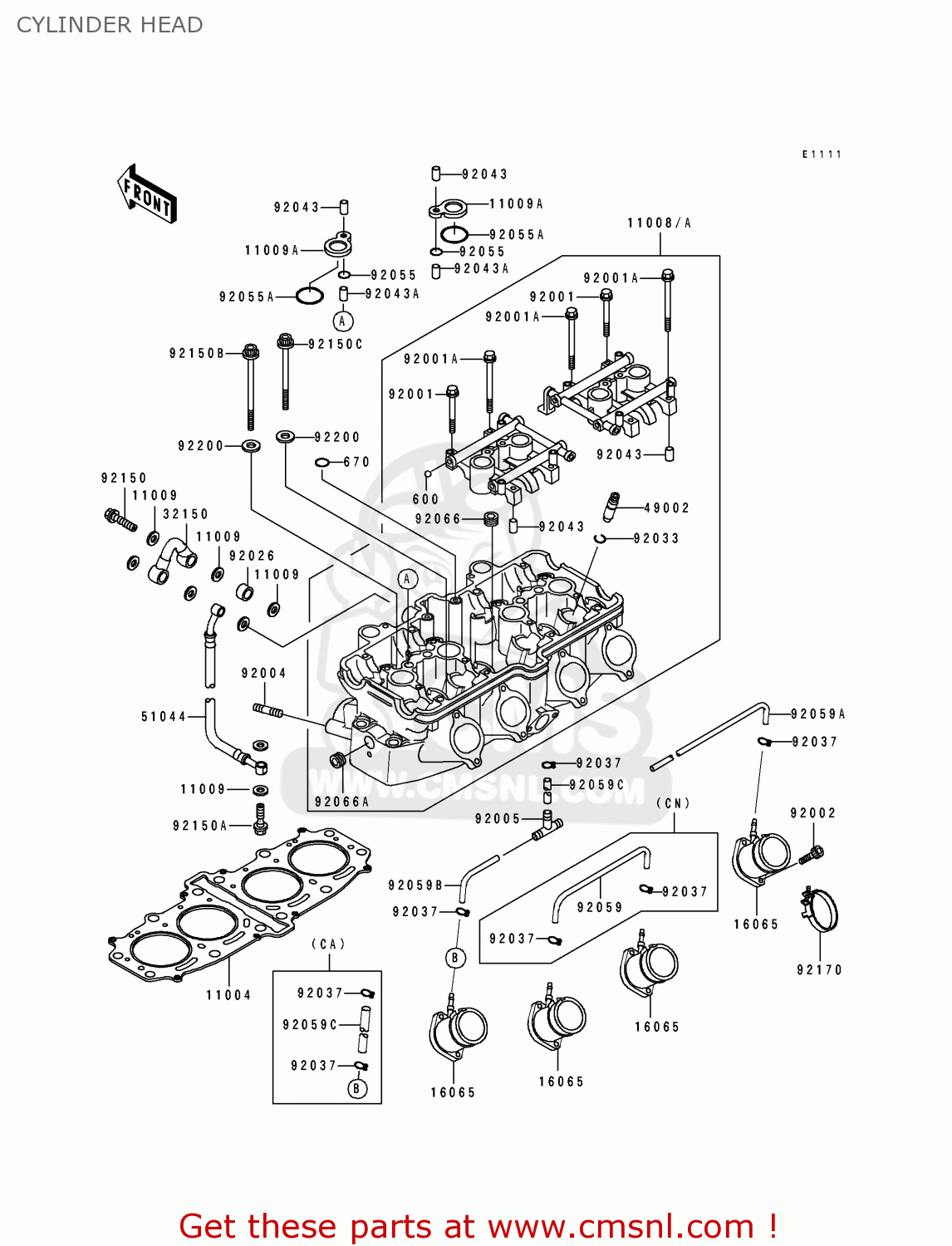

Cylinder head diagram ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

CYLINDER HEAD ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA
CYLINDER HEAD ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA
CYLINDER HEAD ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11004
110041206
ref: 11004
GASKET-HEAD (NAS)
110041206
€ 73.00
11008
110081241
ref: 11008
CAUS
HEAD-COMP-CYLINDER
€ 1,577.00
11008A
110081242
ref: 11008A
CN
HEAD-COMP-CYLINDER
€ 1,475.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
110091990
ref: 11009A
GASKET,SPARK PLUG (NAS)
110091990
€ 5.00
16065
160651213
ref: 16065
HOLDER-CARBURETOR
160651213
€ 22.00
32150
321501621
ref: 32150
PIPE,HEAD
€ 34.50
49002
490021109
ref: 49002
GUIDE-VALVE
490021109
€ 14.00
51044
510441121
ref: 51044
TUBE-ASSY,HEAD-OIL PA
€ 83.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92001A
920011872
ref: 92001A
BOLT,6X46
920011872
€ 2.50
92002
920021143
ref: 92002
BOLT,6X16
920021143
€ 2.50
92004
920041186
ref: 92004
STUD,8X18
920041186
€ 3.50
92005
920051017
ref: 92005
CNUS
FITTING,TUBE
920051017
€ 6.50
92026
920261393
ref: 92026
SPACER,10.5X15.1X10
920261393
€ 3.50
92033
920331247
ref: 92033
RING-SNAP
920331247
€ 2.00
92037
920371712
ref: 92037
CA
CLAMP
920371712
€ 3.00
92037
920371712
ref: 92037
US
CLAMP
920371712
€ 3.00
92037
920371712
ref: 92037
CN
CLAMP
920371712
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431264
ref: 92043A
CAUS
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92055
920551469
ref: 92055
CAUS
RING-O,11.5X1.5
920551469
€ 2.00
92055A
920551470
ref: 92055A
RING-O,27.5X2
920551470
€ 2.50
92059
920591033
ref: 92059
CN
TUBE,4X9X155
€ 12.50
92059A
920591068
ref: 92059A
CNUS
TUBE,4 X9 X230M/M
€ 12.50
92059B
920591365
ref: 92059B
CNUS
TUBE,4X9X80
€ 9.50
92059C
920591533
ref: 92059C
TUBE,4X9X500,WHITE
920591533
€ 12.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
92066A
920661346
ref: 92066A
PLUG,PT3/8X10
920661346
€ 3.50
92150
921501122
ref: 92150
BOLT
921501122
€ 8.00
600
600A0900
ref: 600
BALL-STEEL,9/32
600A0900
€ 2.50
670
670D1508
ref: 670
O RING,8MM
670D1508
€ 2.50
92150A
921501123
ref: 92150A
BOLT
921501123
€ 3.00
92150B
921501368
ref: 92150B
BOLT,10X165
921501368
€ 13.00
92150C
921501369
ref: 92150C
BOLT,10X151
921501369
€ 12.50
92170
921701146
ref: 92170
CLAMP
€ 6.50
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
922001042
€ 2.50
