CRANKCASE BOLT PATTERN

ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

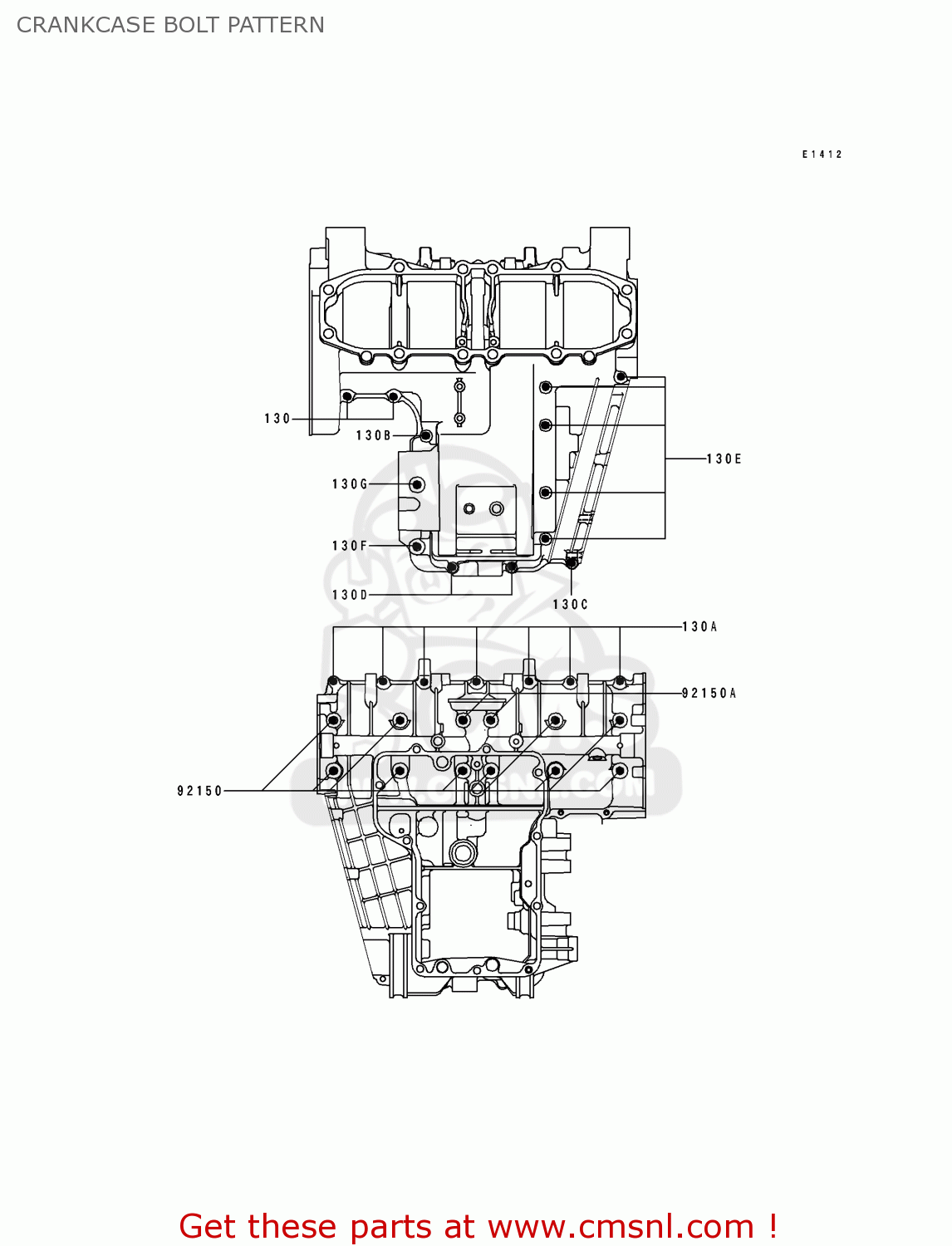

Crankcase bolt pattern diagram ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G0630
ref: 130

BOLT, FLANGED, 6X30

€ 0.50

130A

130G0635
ref: 130A

BOLT, FLANGED, 6X35

€ 0.50

130B

130G0645
ref: 130B

BOLT,FLANGED,6X45

€ 0.50

130C

130G0660
ref: 130C

BOLT-FLANGED,6X60

€ 3.00

130D

130G0675
ref: 130D

BOLT-FLANGED,6X75

€ 1.50

130E

130G0690
ref: 130E

BOLT,FLANGED,6X90

€ 1.00

130F

130P0870
ref: 130F

BOLT-FLANGED,8X70

€ 1.50

130G

130P0895
ref: 130G

BOLT-FLANGED,8X95

€ 7.00

92150

921501163
ref: 92150

BOLT,8X90

€ 6.00

92150A

921501424
ref: 92150A

BOLT

€ 7.00
