OIL COOLER

ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

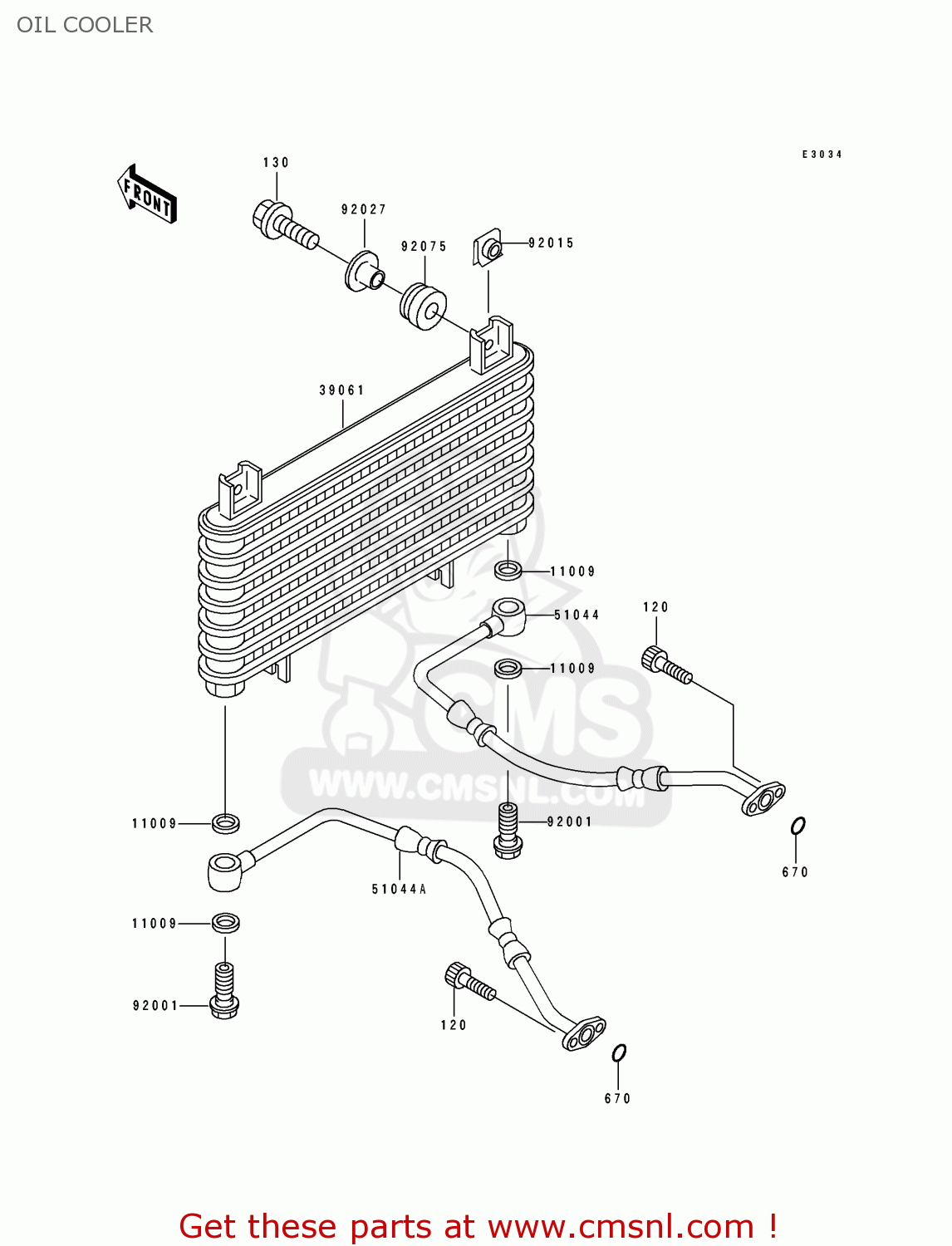

Oil cooler diagram ZX600D2 NINJA ZX6 1991 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

670

670B2010
ref: 670

O RING,10MM

€ 1.00

11009

110091461
ref: 11009

GASKET,14X19.5X1.4 (NAS)

€ 3.50

39061

390611095
ref: 39061

OIL COOLER

€ 282.00

51044

510441131
ref: 51044

TUBE-ASSY,RH

€ 91.50

51044A

510441132
ref: 51044A

TUBE-ASSY,LH

€ 91.50

92001

920011930
ref: 92001

BOLT,14X28.5

€ 6.50

92015

920151487
ref: 92015

NUT

€ 3.00

92027

920271651
ref: 92027

COLLAR

€ 2.50

92075

92075277
ref: 92075

DAMPER

€ 1.00
