Genuine ZX Kawasaki Parts delivered quickly!


TURN SIGNALS

ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

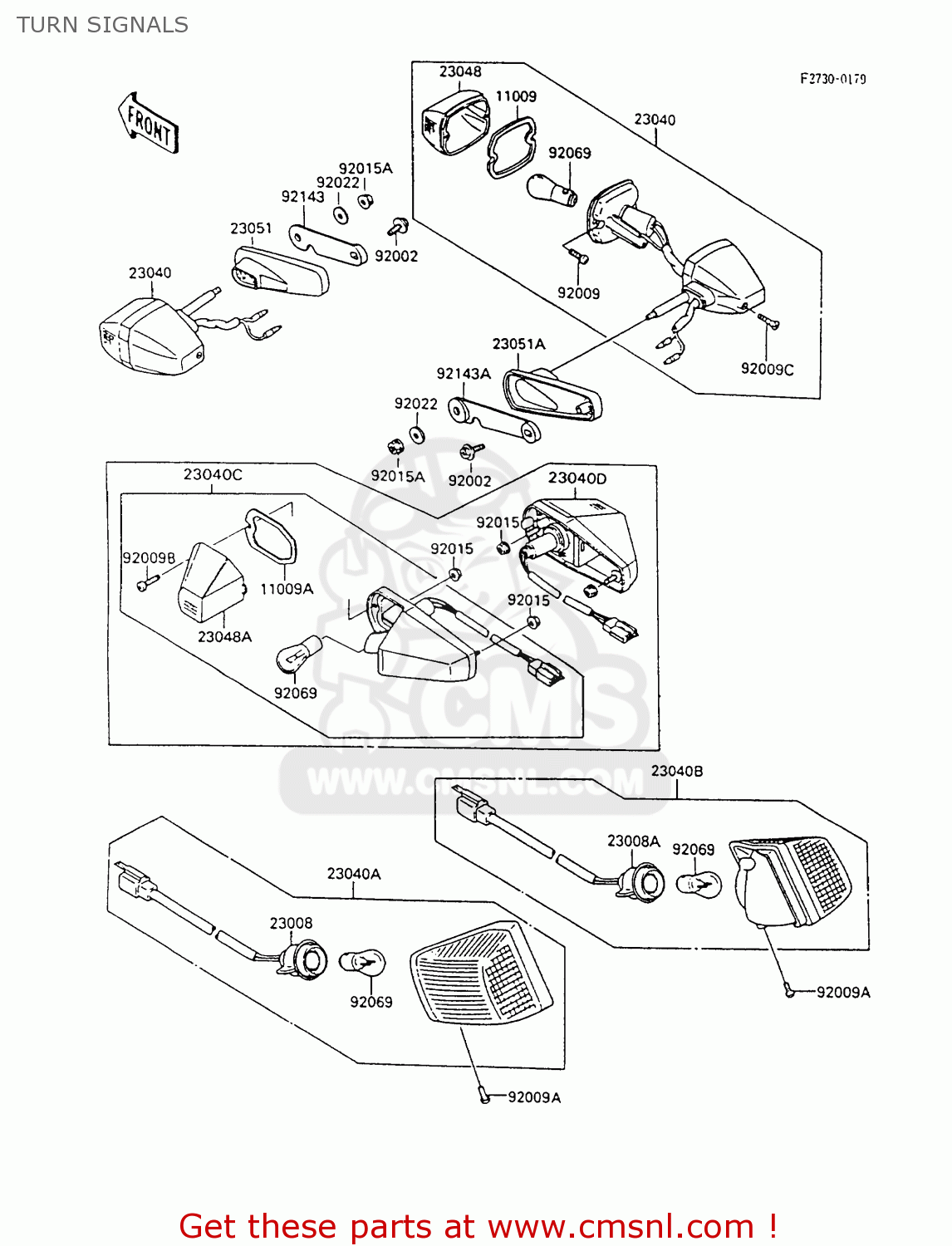

Turn signals diagram ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

TURN SIGNALS ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
TURN SIGNALS ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
TURN SIGNALS ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
prices are in EUR
ref
part #
description
quantity
11009
110091402
ref: 11009
FGSDUK
GASKET,SIGNAL LAMP (NAS)
110091402
€ 3.50
11009A
110091620
ref: 11009A
NL
GASKET,SIGNAL LAMP (NAS)
110091620
€ 2.50
23008
230081351
ref: 23008
SOCKET-ASSY,SIGNAL LA
230081351
€ 12.50
23008A
230081352
ref: 23008A
SOCKET-ASSY,SIGNAL LA
230081352
€ 12.50
23040
230401159
ref: 23040
FGSDUK
LAMP-SIGNAL,FR
230401159
€ 41.50
23040A
230401170
ref: 23040A
LAMP-SIGNAL,RR,LH
230401170
€ 33.50
23040B
230401171
ref: 23040B
LAMP-SIGNAL,RR,RH
230401171
€ 14.50
23040C
230401175B1
ref: 23040C
NL
LAMP-SIGNAL,LH,F.RED
230401175B1
€ 20.00
23040D
230401176B1
ref: 23040D
NL
LAMP-SIGNAL,RH,F.RED
230401176B1
€ 15.50
23048
230481054
ref: 23048
FGSDUK
LENS-SIGNAL LAMP
230481054
€ 12.00
23048A
230481083
ref: 23048A
NL
LENS-SIGNAL LAMP
230481083
€ 10.50
23051
230511185
ref: 23051
FGSDUK
BRACKET-SIGNAL LAMP,F
230511185
€ 7.50
23051A
230511186
ref: 23051A
FGSDUK
BRACKET-SIGNAL LAMP,F
230511186
€ 7.50
92002
920021921
ref: 92002
FGSDUK
BOLT
920021921
€ 2.50
92009
920091115
ref: 92009
FGSDUK
SCREW,TAPPING,3X16
920091115
€ 2.00
92009A
920091197
ref: 92009A
SCREW
920091197
€ 2.50
92009B
920091297
ref: 92009B
NL
SCREW,TAPPING,4X20
920091297
€ 2.50
92009C
920091304
ref: 92009C
FGSDUK
SCREW,4X20
920091304
€ 3.00
92015
920151259
ref: 92015
NL
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
FGSDUK
NUT,FLANGED,6MM
920151367
€ 0.50
92022
92022125
ref: 92022
FGSDUK
WASHER,6.5X20X1.6
92022125
€ 1.00
92069

ref: 92069
92143
921431099
ref: 92143
FGSDUK
COLLAR,SIGNAL LAMP,FR
921431099
€ 3.00
92143A
921431102
ref: 92143A
FGSDUK
COLLAR,SIGNAL LAMP,FR
921431102
€ 3.00
