Genuine ZX Kawasaki Parts delivered quickly!


COWLING(1/4)

ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

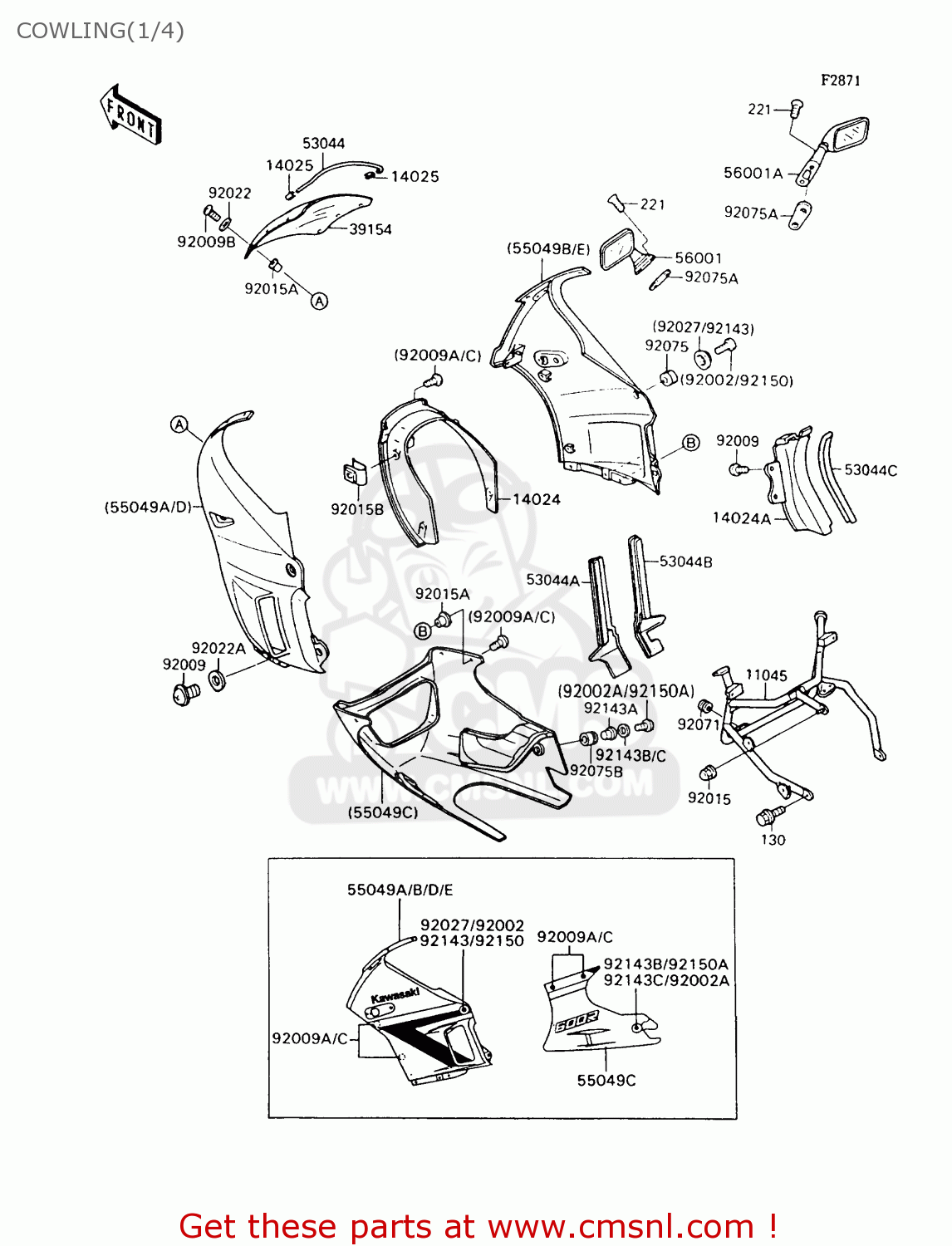

Cowling(1/4) diagram ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

COWLING(1/4) ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
COWLING(1/4) ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
COWLING(1/4) ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
prices are in EUR
ref
part #
description
quantity
11045
110451538
ref: 11045
BRACKET,COWLING
110451538
€ 209.00
14024
140241408B1
ref: 14024
COVER,HEAD LAMP,F.RED
140241408B1
€ 92.00
14024A
140241538
ref: 14024A
COVER,COWLING,INNER,R
140241538
€ 24.50
14025
140251756
ref: 14025
COVER,TRIM END
140251756
€ 4.50
39154
391541106
ref: 39154
WINDSHIELD
391541106
€ 188.00
53044
530441130
ref: 53044
TRIM,WINDSHIELD
530441130
€ 8.50
53044A
530441193
ref: 53044A
TRIM,COWLING,LH
530441193
€ 9.00
53044B
530441194
ref: 53044B
TRIM,COWLING,RH
530441194
€ 9.00
53044C
530441198
ref: 53044C
TRIM
530441198
€ 10.00
55049A
55049522419
ref: 55049A
FGSDUK
COWLING.,UPP,LH,RED/S
€ 767.50
55049B
55049522519
ref: 55049B
FGSDUK
COWLING.,UPP,RH,RED/S
€ 767.50
55049C
55049522626
ref: 55049C
COWLING.,LWR,M.C.SILV
€ 598.50
55049D
55049522719
ref: 55049D
NL
COWLING.,UPP,LH,RED/S
€ 767.50
130
130C0812
ref: 130
BOLT-FLANGED,8X12,BLA
130C0812
€ 0.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
221C0630
€ 1.00
55049E
55049522819
ref: 55049E
NL
COWLING.,UPP,RH,RED/S
€ 718.00
56001
560011319
ref: 56001
MIRROR-ASSY,LH
560011319
€ 87.00
56001A
560011320
ref: 56001A
MIRROR-ASSY,RH
560011320
€ 71.50
92002
920021889
ref: 92002
BOLT
920021889
€ 4.00
92002A
920021998
ref: 92002A
BOLT,SOCKET,6X30,WHIT
920021998
€ 2.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92009A
920091491
ref: 92009A
SCREW,5X20,WHITE
920091491
€ 2.50
92009B
920091654
ref: 92009B
SCREW
920091654
€ 0.50
92009C
920091656
ref: 92009C
SCREW
920091656
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015A
920151640
ref: 92015A
NUT
920151640
€ 5.00
92015B
920151710
ref: 92015B
NUT
920151710
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022A
920221654
ref: 92022A
WASHER,6.5X16X1.0
920221654
€ 2.50
92027
920271886
ref: 92027
COLLAR,L=6.5,WHITE
920271886
€ 8.00
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
92075A
920751929
ref: 92075A
DAMPER,MIRROR
920751929
€ 3.50
92075B
920751936
ref: 92075B
DAMPER
920751936
€ 3.50
92143
921431086
ref: 92143
COLLAR,L=6.5,BLACK
921431086
€ 9.00
92143A
921431100
ref: 92143A
COLLAR,L=19.6
921431100
€ 5.00
92143B
921431226
ref: 92143B
COLLAR,BLACK
921431226
€ 7.50
92143C
921431273
ref: 92143C
COLLAR,WHITE
921431273
€ 11.50
92150
921501553
ref: 92150
BOLT,SOCKET,6X18
921501553
€ 4.00
92150A
921501554
ref: 92150A
BOLT,SOCKET,6X30
921501554
€ 3.50
