Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR PARTS

ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

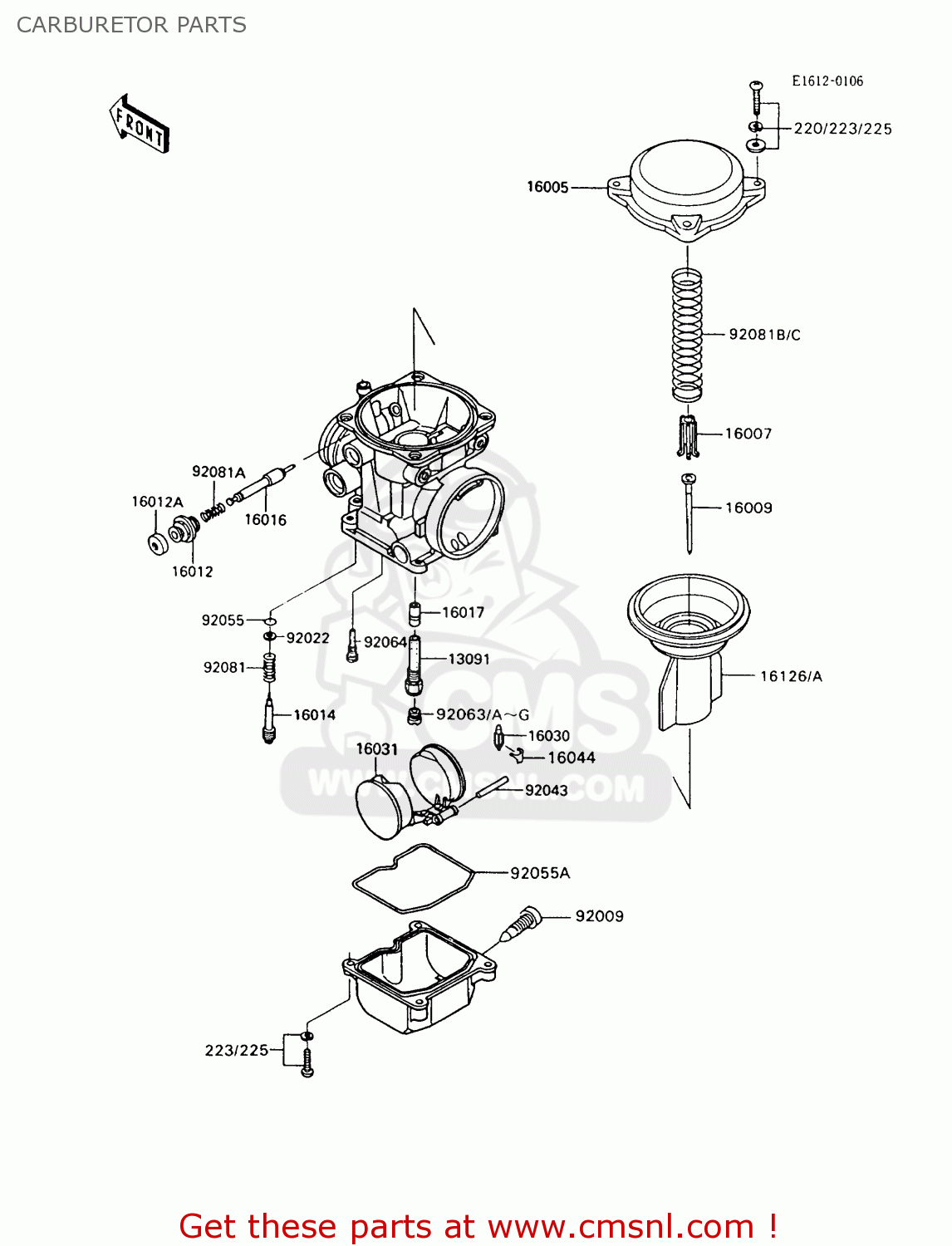

Carburetor parts diagram ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

CARBURETOR PARTS ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
CARBURETOR PARTS ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
CARBURETOR PARTS ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
prices are in EUR
ref
part #
description
quantity
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
130911406
€ 19.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
160051056
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 16.50
16009
160091354
ref: 16009
NEEDLE-JET,N52Q
160091354
€ 19.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171285
ref: 16017
JET-NEEDLE
€ 33.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261160
ref: 16126
VALVE,VACUUM
161261160
€ 159.50
92009
920091551
ref: 92009
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551222
ref: 92055A
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631005
ref: 92063
FGNLUK
JET-MAIN,#98
920631005
€ 10.00
92063A
920631008
ref: 92063A
JET-MAIN,#100
920631008
€ 9.00
92063B
920631009
ref: 92063B
SD
JET-MAIN,#105
920631009
€ 10.00
92063C
920631009
ref: 92063C
FGNLUK
JET-MAIN,#105
920631009
€ 10.00
92063D
920631114
ref: 92063D
SD
JET-MAIN,#110
920631114
€ 9.50
92063E
920631115
ref: 92063E
FGNLUK
JET-MAIN,#102
920631115
€ 10.00
92063F
920631115
ref: 92063F
SD
JET-MAIN,#102
920631115
€ 10.00
220
220D0414
ref: 220
FGNLUK
SCREW-PAN-CROS
220D0414
€ 2.00
223
223C0416
ref: 223
SD
SCREW-PAN-WS-CROS
223C0416
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92063G
920631116
ref: 92063G
JET-MAIN,#108
920631116
€ 9.50
92064
920641035
ref: 92064
JET-PILOT,#35
920641035
€ 12.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811775
ref: 92081B
SD
SPRING,VACUUM VALVE
€ 17.00
92081C
920811912
ref: 92081C
FGNLUK
SPRING,VACUUM VALVE
920811912
€ 17.00
