FUEL TANK

ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

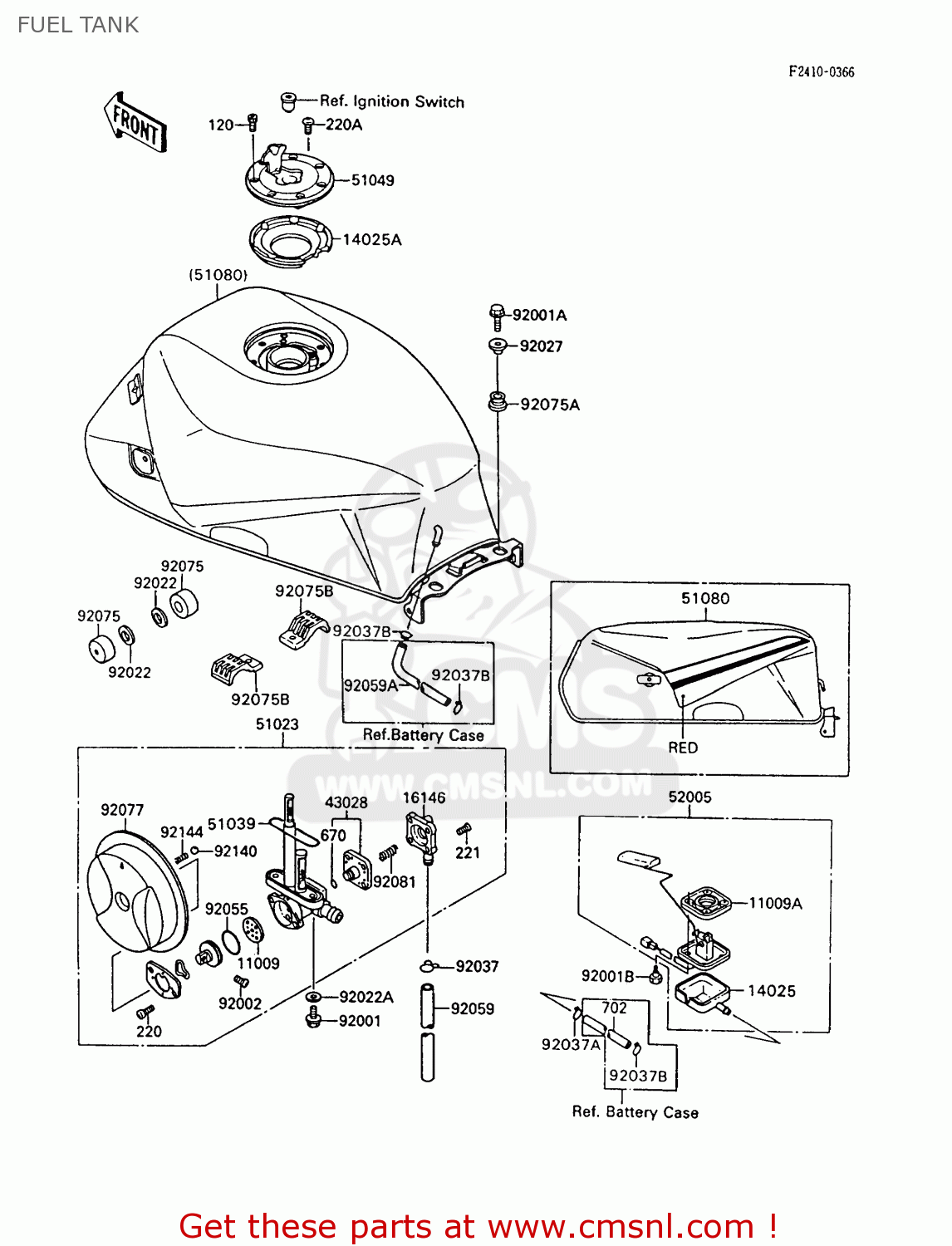

Fuel tank diagram ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD

FUEL TANK ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
FUEL TANK ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
FUEL TANK ZX600C6 GPX600R 1993 UNITED KINGDOM NL FG SD
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
110091188
€ 4.00
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
110091656
€ 14.50
14025
140251536
ref: 14025
COVER,FUEL GAGE
140251536
€ 11.50
14025A
140251913
ref: 14025A
COVER,TANK CAP
140251913
€ 13.50
16146
161461061
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 15.00
43028
430281033
ref: 43028
DIAPHRAGM
430281033
€ 15.00
51023
510231158BK
ref: 51023
TAP-ASSY,FUEL,BLACK
€ 91.50
51039
51039003
ref: 51039
'O' RING
51039003
€ 4.00
51049
510491079
ref: 51049
CAP-TANK,FUEL
510491079
€ 106.50
51080
510805030B1
ref: 51080
TANK-COMP-FUEL,F.RED
€ 747.50
52005
520051089
ref: 52005
GAUGE,FUEL
520051089
€ 90.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92001A
920011352
ref: 92001A
BOLT,FLANGED,6X22
920011352
€ 2.50
92001B
920011705
ref: 92001B
BOLT,FUEL GAGE
920011705
€ 2.50
92002
920021996
ref: 92002
BOLT
920021996
€ 2.50
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
92022044
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
92037010
€ 2.50
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
221
221B0418
ref: 221
SCREW-CSK-CROS
€ 2.00
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
920371712
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
920551085
€ 3.00
92059
920591890
ref: 92059
TUBE,5X9X470
€ 4.50
92059A
920593011
ref: 92059A
TUBE,6X10X200
920593011
€ 7.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
920751690
€ 3.00
92075B
920751932
ref: 92075B
DAMPER,FUEL TANK,CNT
920751932
€ 4.50
92077
920771089BK
ref: 92077
KNOB,FUEL TAP,BLACK
920771089BK
€ 19.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
920811240
€ 2.50
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
921401051
€ 3.00
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
921441212
€ 2.50
