REAR HUB

ZX600C3 GPX600R 1990 EUROPE UK FR FG

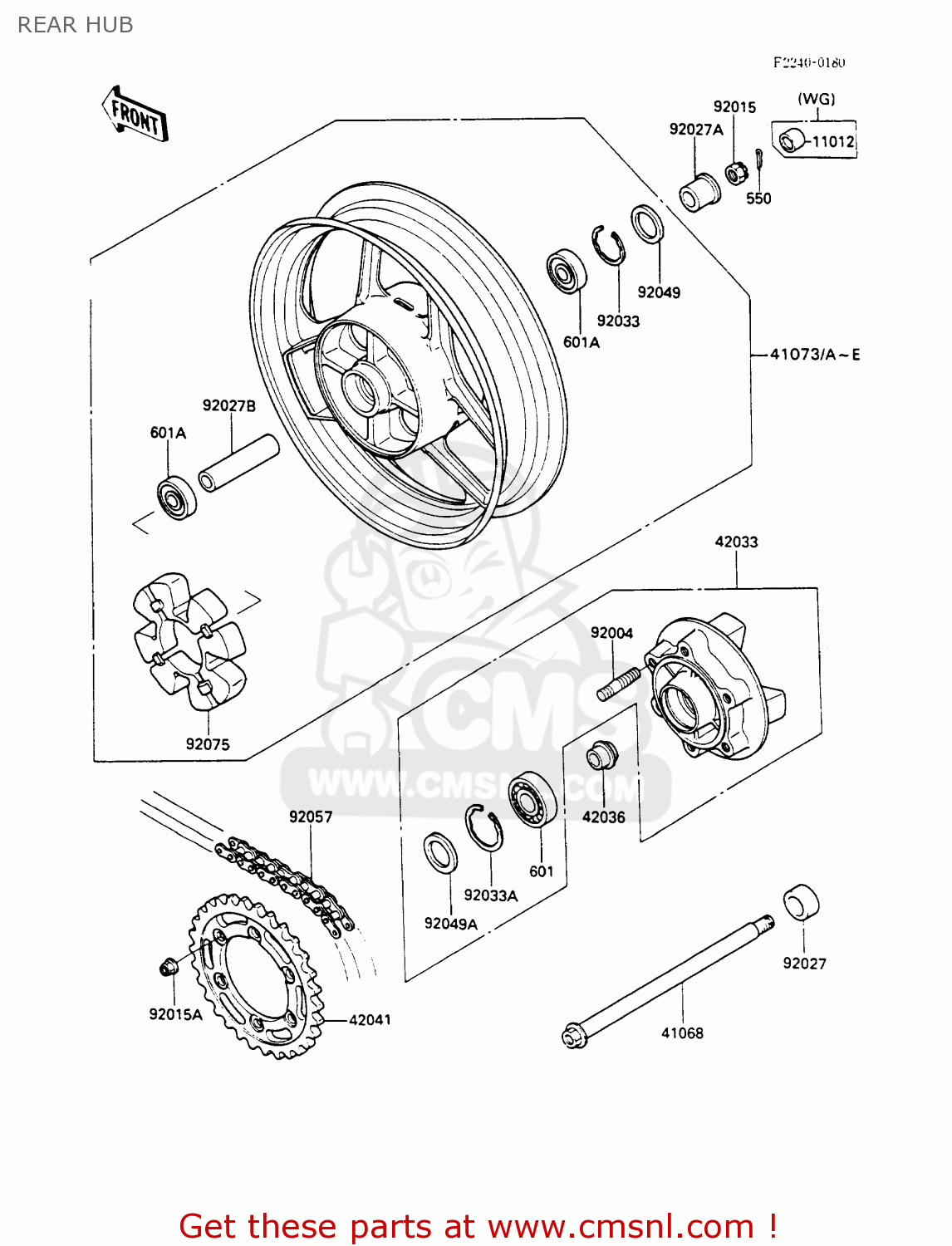

Rear hub diagram ZX600C3 GPX600R 1990 EUROPE UK FR FG

REAR HUB ZX600C3 GPX600R 1990 EUROPE UK FR FG
REAR HUB ZX600C3 GPX600R 1990 EUROPE UK FR FG
REAR HUB ZX600C3 GPX600R 1990 EUROPE UK FR FG
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
601B6205G
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
11012
110121592
ref: 11012
FG
CAP,AXLE NUT
110121592
€ 5.00
41068
410681232
ref: 41068
AXLE,RR
410681232
€ 36.00
41073C
410731436R2
ref: 41073C
EUFGFR
WHEEL-ASSY,RR,BLACK
€ 771.50
41073D
410731436T6
ref: 41073D
WHEEL-ASSY,RR,WHITE N
410731436T6
€ 700.50
41073E
410731436X4
ref: 41073E
WHEEL-ASSY,RR,F.RED
€ 526.50
42033
420331114
ref: 42033
COUPLING-ASSY,RR HUB
420331114
€ 204.50
42036
420361149
ref: 42036
SLEEVE,RR HUB,L=26
420361149
€ 20.50
42041
420411287
ref: 42041
SPROCKET-HUB,39T
420411287
€ 38.00
92004
920041146
ref: 92004
STUD,10X24
920041146
€ 4.00
92015
42045014
ref: 92015
NUT CASTLE, 16M/M
42045014
€ 6.50
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
920151502
€ 7.00
92027
920271874
ref: 92027
COLLAR,RR AXLE,L=20
920271874
€ 13.50
92027A
920271875
ref: 92027A
COLLAR,RR AXLE,L=28
920271875
€ 16.50
92027B
920271876
ref: 92027B
COLLAR,L=106
920271876
€ 15.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92049A
92052006
ref: 92049A
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571232
ref: 92057
CHAIN,DRIVE,EK50MV-OX
920571232
€ 167.50
92075
920751687
ref: 92075
DAMPER,SHOCK,RR HUB
920751687
€ 54.50
