RADIATOR(ZX600C-011127&NAMI.)

ZX600C3 GPX600R 1990 EUROPE UK FR FG

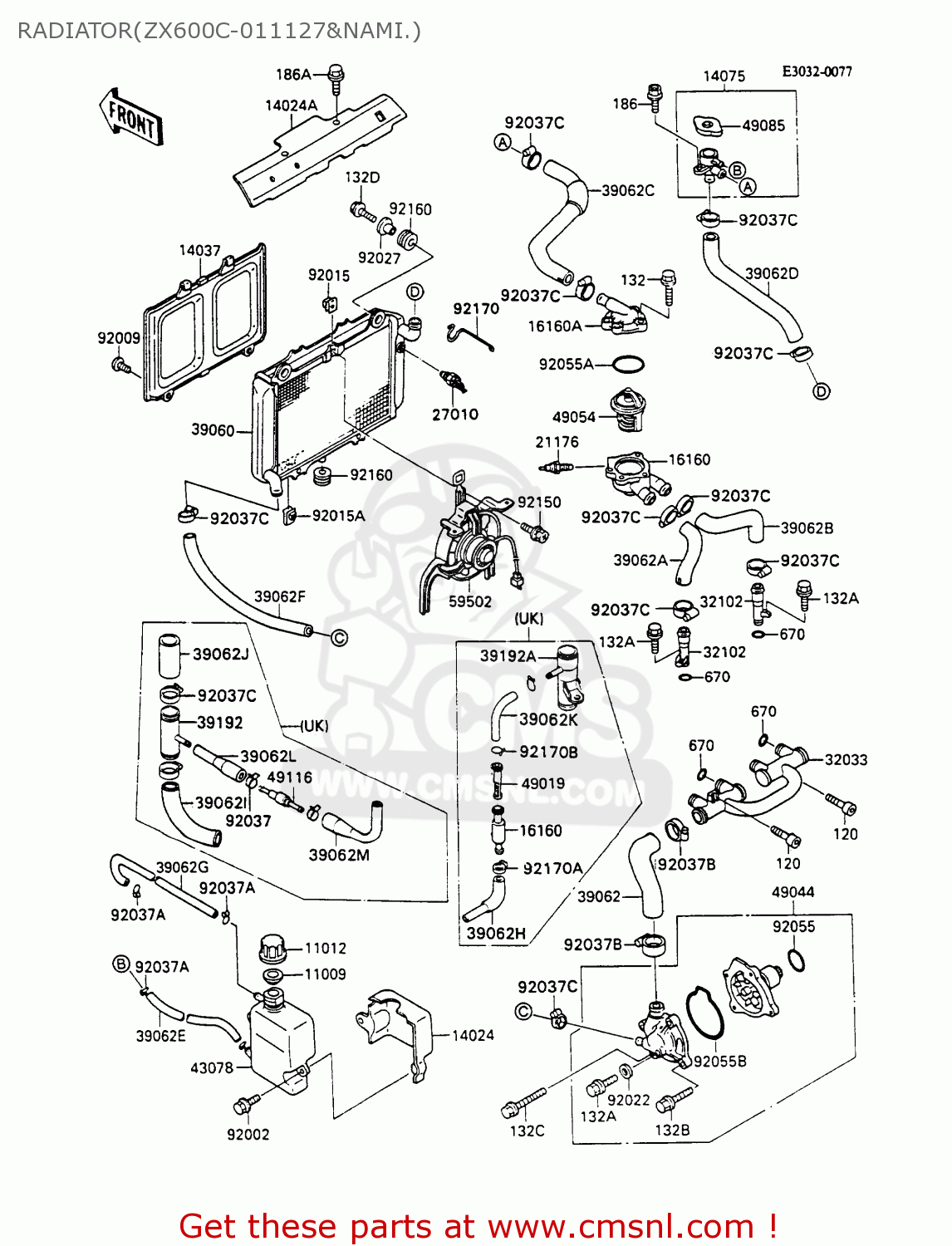

Radiator(zx600c-011127&nami.) diagram ZX600C3 GPX600R 1990 EUROPE UK FR FG

RADIATOR(ZX600C-011127&NAMI.) ZX600C3 GPX600R 1990 EUROPE UK FR FG
RADIATOR(ZX600C-011127&NAMI.) ZX600C3 GPX600R 1990 EUROPE UK FR FG
RADIATOR(ZX600C-011127&NAMI.) ZX600C3 GPX600R 1990 EUROPE UK FR FG
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140241426
ref: 14024
COVER,RESERVOIR
140241426
€ 10.00
14024A
140241441
ref: 14024A
COVER
140241441
€ 17.00
14037
140371091
ref: 14037
SCREEN
140371091
€ 63.00
14075
140751061
ref: 14075
CAP-ASSY
140751061
€ 128.00
16160
161601112
ref: 16160
BODY,THERMOSTAT,LWR
161601112
€ 53.50
16160A
161601129
ref: 16160A
BODY,THERMOSTAT,UPP
€ 39.00
16160B
161601151
ref: 16160B
UK
BODY,FILTER
161601151
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101249
ref: 27010
SWITCH,THERMOSTAT
€ 63.00
32033
320331593
ref: 32033
PIPE
€ 91.50
32102
321021043
ref: 32102
UK
PIPE
321021043
€ 23.50
32102
321021043
ref: 32102
EUFGFR
PIPE
321021043
€ 23.50
39060
390601085
ref: 39060
RADIATOR
€ 576.50
39062
390621111
ref: 39062
HOSE-COOLING,PUMP-CYL
390621111
€ 21.00
39062A
390621235
ref: 39062A
HOSE-COOLING,HEAD-THE
390621235
€ 12.00
39062B
390621236
ref: 39062B
HOSE-COOLING,HEAD-THE
390621236
€ 18.50
39062C
390621237
ref: 39062C
HOSE-COOLING,CAP-THER
390621237
€ 21.00
39062D
390621238
ref: 39062D
HOSE-COOLING,CAP-RADI
390621238
€ 15.50
39062E
390621240
ref: 39062E
HOSE-COOLING,RESERVOI
€ 18.00
39062F
390621256
ref: 39062F
EUFGFR
HOSE-COOLING,RADIATOR
390621256
€ 17.00
39062G
390621269
ref: 39062G
HOSE-COOLING
390621269
€ 18.00
39062H
390621314
ref: 39062H
UK
HOSE-COOLING
390621314
€ 7.50
39062I
390621346
ref: 39062I
UK
HOSE-COOLING
390621346
€ 14.00
39062J
390621348
ref: 39062J
UK
HOSE-COOLING
390621348
€ 17.00
39062K
390621349
ref: 39062K
UK
HOSE-COOLING
€ 3.50
39062L
390621380
ref: 39062L
UK
HOSE-COOLING,VALVE-PU
390621380
€ 5.50
39062M
390621381
ref: 39062M
UK
HOSE-COOLING
€ 3.00
39192
391921016
ref: 39192
UK
PIPE-WATER
€ 22.00
120
120S0612
ref: 120
BOLT-SOCKET
120S0612
€ 1.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
132G0620
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0625
ref: 132B
BOLT-FLANGED-SMALL
132J0625
€ 2.50
132C
132J0645
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132J0825
ref: 132D
BOLT-FLANGED-SMALL
132J0825
€ 2.50
39192A
391921017
ref: 39192A
UK
PIPE-WATER
391921017
€ 19.50
43078
430781086
ref: 43078
RESERVOIR
430781086
€ 34.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
490191068
€ 4.00
49044
490441054
ref: 49044
PUMP-WATER
490441054
€ 288.50
49054
490541059
ref: 49054
THERMOSTAT
490541059
€ 41.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
490851003
€ 23.50
49116
491161081
ref: 49116
UK
VALVE-ASSY
491161081
€ 85.00
59502
595021081
ref: 59502
FAN-ASSY
595021081
€ 389.50
92002
920021720
ref: 92002
BOLT,6X16
920021720
€ 2.50
92009
920091436
ref: 92009
SCREW
920091436
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
920221627
ref: 92022
WASHER,6MM
920221627
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
920371181
ref: 92037
UK
CLAMP
920371181
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371985
ref: 92037B
CLAMP,COOLING HOSE
€ 7.50
92037C
920371986
ref: 92037C
UK
CLAMP,COOLING HOSE
€ 13.00
92037C
920371986
ref: 92037C
EUFGFR
CLAMP,COOLING HOSE
€ 13.00
92055
920551266
ref: 92055
RING-O,33.8MM
920551266
€ 12.00
92055A
920551279
ref: 92055A
RING-O,45MM
920551279
€ 4.50
92055B
920551315
ref: 92055B
RING-O,WATER PUMP
920551315
€ 8.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
921701074
ref: 92170
CLAMP
€ 6.00
92170A
921701118
ref: 92170A
UK
CLAMP
921701118
€ 5.00
92170B
921702042
ref: 92170B
UK
CLAMP
921702042
€ 1.00
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
186A
186C0616
ref: 186A
BOLT-UPSET-WP
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
