CRANKCASE
ZX600C3 GPX600R 1990 EUROPE UK FR FG

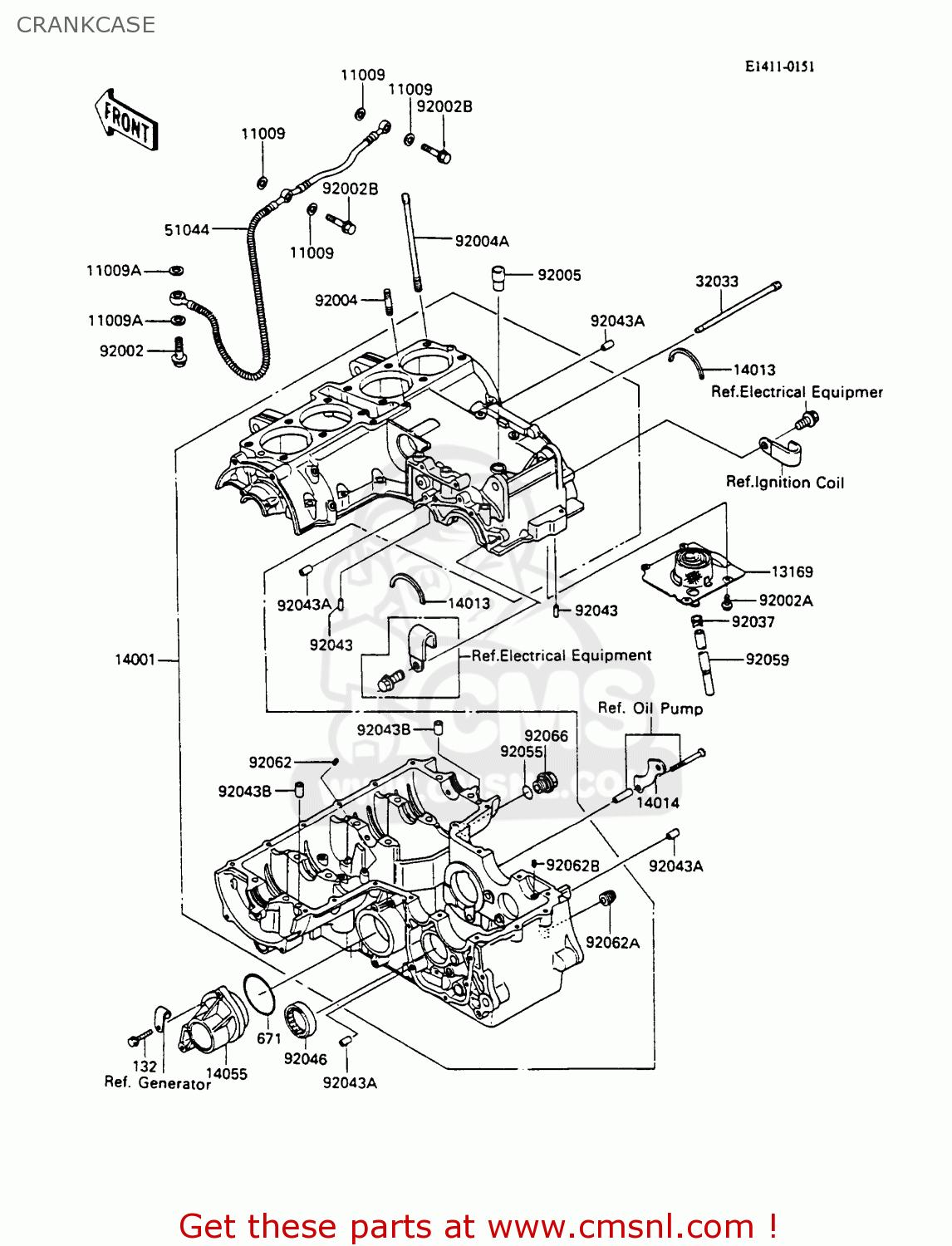

Crankcase diagram ZX600C3 GPX600R 1990 EUROPE UK FR FG
CRANKCASE ZX600C3 GPX600R 1990 EUROPE UK FR FG
×
prices are in EUR
ref
part #
description
quantity
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
671
671B2555
ref: 671
O RING,55MM
€ 4.00
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11009A
110091376
ref: 11009A
GASKET,12.5X18X1.5 (NAS)
€ 1.50
13169
131691966
ref: 13169
PLATE,BREATHER
€ 41.50
14001
140015217
ref: 14001
SET-CRANKCASE
€ 1,528.50
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14014
140141006
ref: 14014
PLATE-POSITION
€ 7.50
14055
140551078
ref: 14055
CASE-GEAR
€ 55.00
32033
320331858
ref: 32033
PIPE,OIL
€ 17.00
51044
510441071
ref: 51044
TUBE-ASSY
€ 161.50
92002
920011871
ref: 92002
BOLT,BANJO,12X23
€ 12.50
92002A
920021449
ref: 92002A
BOLT,6X10
€ 2.50
92002B
920021858
ref: 92002B
BOLT
€ 6.50
92004
92004059
ref: 92004
STUD
€ 4.00
92004A
920041161
ref: 92004A
STUD
€ 8.00
92005
920051129
ref: 92005
FITTING,BREATHER
€ 10.50
92037
920371181
ref: 92037
CLAMP
€ 1.00
92043
92042016
ref: 92043
PIN,DOWEL,6X16
€ 3.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
€ 0.50
92043B
920431264
ref: 92043B
PIN,DOWEL,8.2X10X14
€ 0.50
92046
92046051
ref: 92046
BEARING-NEEDLE,37BTM4
€ 23.00
92055
920551146
ref: 92055
RING-O
€ 5.50
92059
920591544
ref: 92059
TUBE
€ 13.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92062A
92062014
ref: 92062A
NOZZLE
€ 6.00
92062B
92062015
ref: 92062B
NOZZLE
€ 4.00
92066
920661096
ref: 92066
PLUG,MAIN GALLARY,18X
€ 7.50
