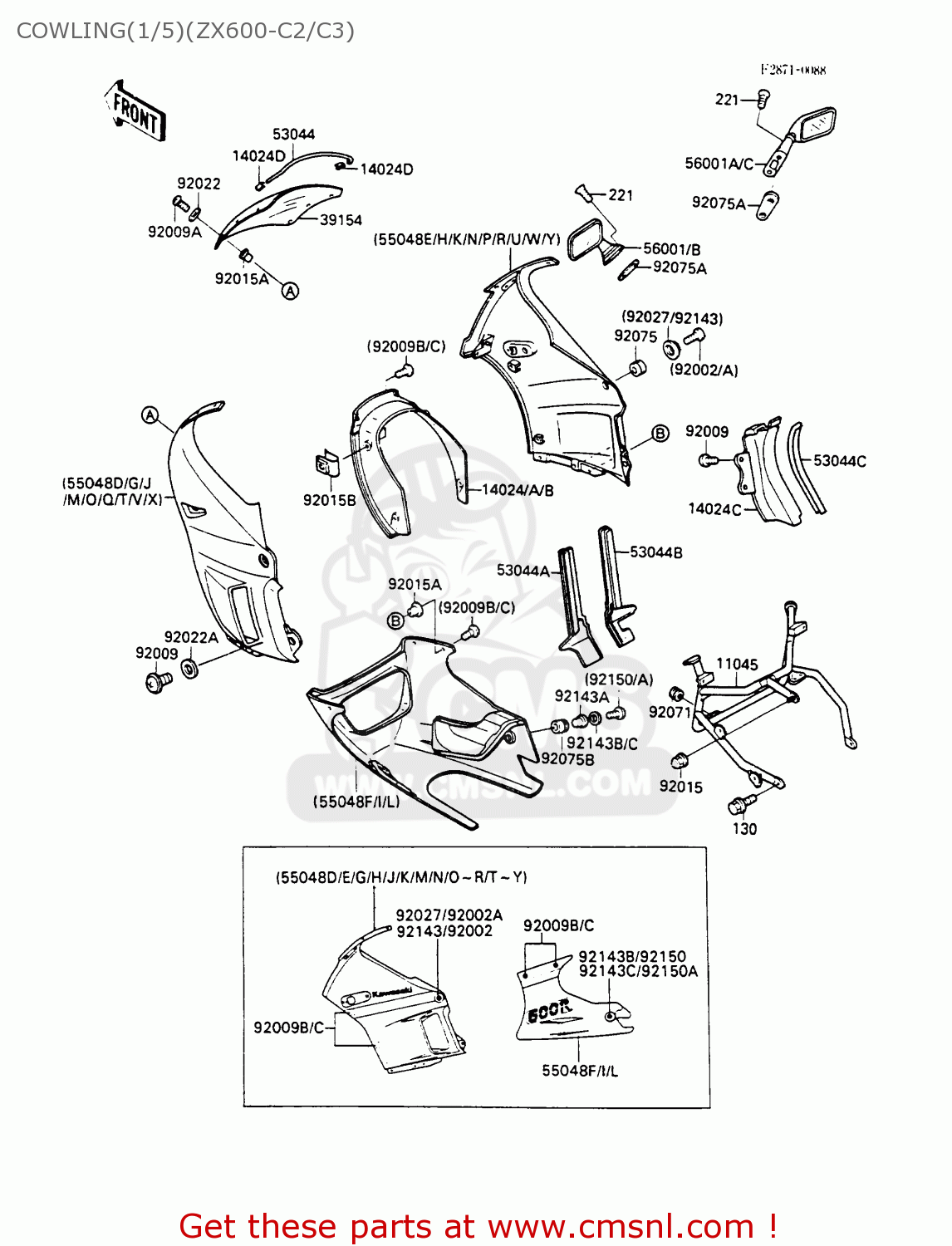

COWLING(1/5)(ZX600-C2/C3)

ref

part #

description

quantity

11045

110451538
ref: 11045

BRACKET,COWLING

€ 209.00

14024

140241408B1
ref: 14024

COVER,HEAD LAMP,F.RED

€ 92.00

14024A

140241408H8
ref: 14024A
EUFGFR

COVER,HEAD LAMP,EBONY

€ 194.50

14024B

140241408M4
ref: 14024B

COVER,HEAD LAMP,L.P.B

€ 163.50

14024C

140241538
ref: 14024C

COVER,COWLING,INNER,R

€ 24.50

14024D

140251756
ref: 14024D

COVER,TRIM END

€ 4.50

39154

391541106
ref: 39154

WINDSHIELD

€ 188.00

53044

530441130
ref: 53044

TRIM,WINDSHIELD

€ 8.50

53044A

530441193
ref: 53044A

TRIM,COWLING,LH

€ 9.00

53044B

530441194
ref: 53044B

TRIM,COWLING,RH

€ 9.00

53044C

530441198
ref: 53044C

TRIM

€ 10.00

55048D

550485085B1
ref: 55048D
EU

COWLING.,UPP,LH,F.RED

€ 367.00

55048E

550485086B1
ref: 55048E
EU

COWLING.,UPP,RH,F.RED

€ 367.00

55048F

550485087EE
ref: 55048F

COWLING.,LWR,M.BRONZE

€ 334.00

55048G

550485088H8
ref: 55048G
EU

COWLING.,UPP,LH,EBONY

€ 387.00

55048H

550485089H8
ref: 55048H
EU

COWLING.,UPP,RH,EBONY

€ 387.00

55048I

550485090EE
ref: 55048I
EUFGFR

COWLING.,LWR,M.BRONZE

€ 301.50

55048J

550485091M4
ref: 55048J
EU

COWLING.,UPP,LH,L.P.B

€ 412.50

55048K

550485092M4
ref: 55048K
EU

COWLING.,UPP,RH,L.P.B

€ 387.00

55048L

550485093R1
ref: 55048L

COWLING.,LWR,P.A.WHIT

€ 317.00

55048M

550485094B1
ref: 55048M
FGUK

COWLING.,UPP,LH,F.RED

€ 367.00

55048N

550485095B1
ref: 55048N
FGUK

COWLING.,UPP,RH,F.RED

€ 367.00

55048O

550485096H8
ref: 55048O
FG

COWLING.,UPP,LH,EBONY

€ 367.00

55048P

550485097H8
ref: 55048P
FG

COWLING.,UPP,RH,EBONY

€ 343.00

55048Q

550485098M4
ref: 55048Q
FGUK

COWLING.,UPP,LH,L.P.B

€ 367.00

55048R

550485099M4
ref: 55048R
FGUK

COWLING.,UPP,RH,L.P.B

€ 367.00

55048T

550485134B1
ref: 55048T
FR

COWLING.,UPP,LH,F.RED

€ 393.50

55048U

550485135B1
ref: 55048U
FR

COWLING.,UPP,RH,F.RED

€ 393.50

55048V

550485136H8
ref: 55048V
FR

COWLING.,UPP,LH,EBONY

€ 393.50

55048W

550485137H8
ref: 55048W
FR

COWLING.,UPP,RH,EBONY

€ 393.50

55048X

550485138M4
ref: 55048X
FR

COWLING.,UPP,LH,L.P.B

€ 393.50

55048Y

550485139M4
ref: 55048Y
FR

COWLING.,UPP,RH,L.P.B

€ 350.50

56001

560011317
ref: 56001
FG

MIRROR-ASSY,LH

€ 87.00

56001A

560011318
ref: 56001A
FG

MIRROR-ASSY,RH

€ 71.50

130

130C0812
ref: 130

BOLT-FLANGED,8X12,BLA

€ 0.50

221

221C0630
ref: 221

SCREW-CSK-CROS,6X30

€ 1.00

56001B

560011319
ref: 56001B
EUFRUK

MIRROR-ASSY,LH

€ 87.00

56001C

560011320
ref: 56001C
EUFRUK

MIRROR-ASSY,RH

€ 71.50

92002

920021514
ref: 92002

BOLT,SOCKET,6X18,BLAC

€ 4.00

92002A

920021889
ref: 92002A

BOLT

€ 4.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92009A

920091301
ref: 92009A

SCREW,5X16

€ 0.50

92009B

920091453
ref: 92009B

SCREW,5X20

€ 2.50

92009C

920091491
ref: 92009C

SCREW,5X20,WHITE

€ 2.50

92015

920151174
ref: 92015

NUT,CAP,8MM,BLACK

€ 3.00

92015A

920151640
ref: 92015A

NUT

€ 5.00

92015B

920151710
ref: 92015B

NUT

€ 4.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92022A

920221654
ref: 92022A

WASHER,6.5X16X1.0

€ 2.50

92027

920271886
ref: 92027

COLLAR,L=6.5,WHITE

€ 8.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00

92075A

920751929
ref: 92075A

DAMPER,MIRROR

€ 3.50

92075B

920751936
ref: 92075B

DAMPER

€ 3.50

92143

921431086
ref: 92143

COLLAR,L=6.5,BLACK

€ 9.00

92143A

921431100
ref: 92143A

COLLAR,L=19.6

€ 5.00

92143B

921431226
ref: 92143B

COLLAR,BLACK

€ 7.50

92143C

921431273
ref: 92143C

COLLAR,WHITE

€ 11.50

92150

920021945
ref: 92150

BOLT,SOCKET,6X30,BLAC

€ 3.50

92150A

920021998
ref: 92150A

BOLT,SOCKET,6X30,WHIT

€ 2.50
