Genuine ZX Kawasaki Parts delivered quickly!


TAILLIGHT(S)

ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST

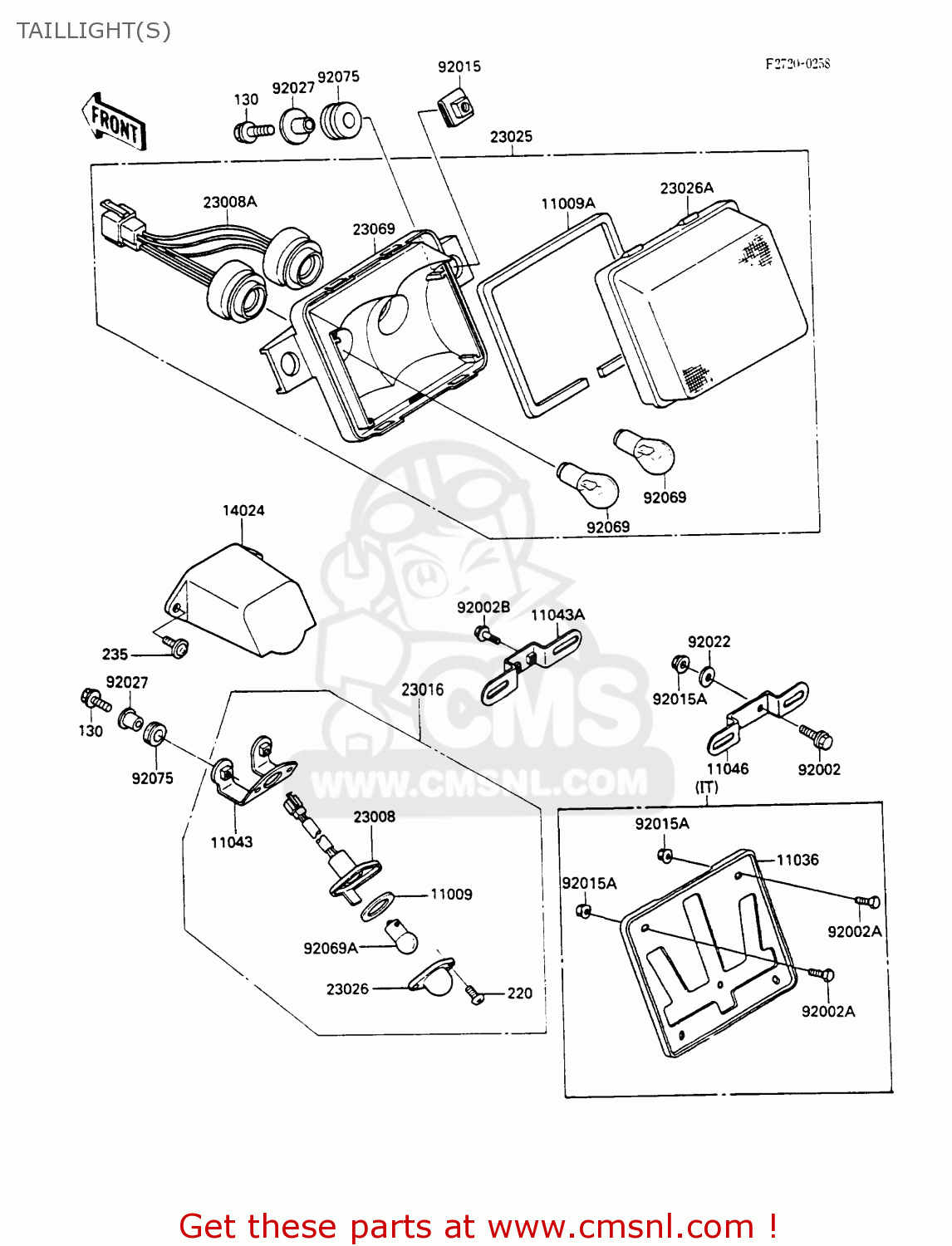

Taillight(s) diagram ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST

TAILLIGHT(S) ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST
TAILLIGHT(S) ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST
TAILLIGHT(S) ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
110091372
€ 3.00
11009A
110091662
ref: 11009A
GASKET,TAIL LAMP LENS (NAS)
110091662
€ 4.50
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
110431497
€ 10.00
11043A
110431499
ref: 11043A
FGGRNRSDST
BRACKET,REFLECTOR
110431499
€ 12.00
11046
110461109
ref: 11046
EUFRITSPUK
BRACKET,LICENSE PLATE
110461109
€ 13.00
14024
140251821
ref: 14024
COVER,LICENSE PLATE L
140251821
€ 13.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
230081221
€ 7.50
23008A
230081264
ref: 23008A
SOCKET-ASSY,TAIL LAMP
230081264
€ 23.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
230161054
€ 54.50
23025
230251167
ref: 23025
LAMP-TAIL
230251167
€ 83.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 7.00
23026A
230261088
ref: 23026A
LENS,TAIL LAMP
230261088
€ 30.50
23069
230691079
ref: 23069
BODY-TAIL LAMP
230691079
€ 83.50
92002
920021124
ref: 92002
EUFRITSPUK
BOLT,6X16
920021124
€ 2.50
92002A
920021132
ref: 92002A
IT
BOLT,6X12
€ 2.50
92002B
920021351
ref: 92002B
FGGRNRSDST
BOLT
920021351
€ 2.50
92015
920151094
ref: 92015
NUT,MUFFLER
920151094
€ 5.50
92015A
920151193
ref: 92015A
IT
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151193
ref: 92015A
EUFRSPUK
NUT,FLANGED,6MM
920151193
€ 0.50
92022
92022125
ref: 92022
EUFRITSPUK
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
130
130D0625
ref: 130
BOLT-FLANGED
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
220B0410
€ 2.00
235
235C0616
ref: 235
SCREW-PAN-WP-CROS
235C0616
€ 2.50
92069A
920691055
ref: 92069A
BULB,12V 5W
920691055
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
