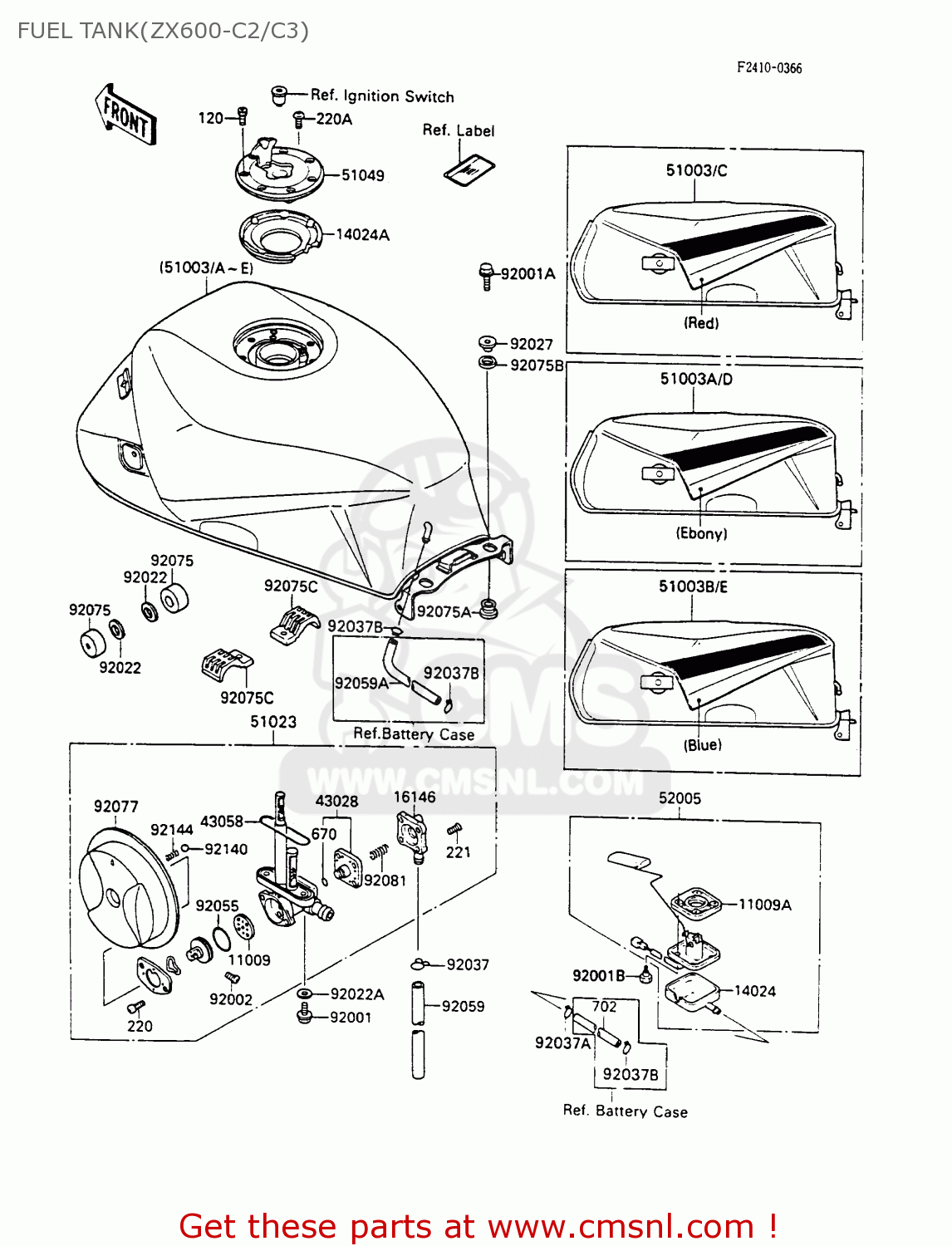

FUEL TANK(ZX600-C2/C3)

ref

part #

description

quantity

11009

110091188
ref: 11009

GASKET,TAP VALVE (NAS)

€ 4.00

11009A

110091656
ref: 11009A

GASKET,FUEL GAUGE (NAS)

€ 14.50

14024

140251536
ref: 14024

COVER,FUEL GAGE

€ 11.50

14024A

140251913
ref: 14024A

COVER,TANK CAP

€ 13.50

16146

161461061
ref: 16146

COVER-ASSY,TAP DIAPHR

€ 15.00

43028

430281033
ref: 43028

DIAPHRAGM

€ 15.00

43058

51039003
ref: 43058

'O' RING

€ 4.00

51003

510035030B1
ref: 51003
EUFRGRNRSPSTUK

TANK-COMP-FUEL,F.RED

€ 734.00

51003A

510035031H8
ref: 51003A
EUFRGRITNRSDSPST

TANK-COMP-FUEL,EBONY

€ 734.00

51003B

510035032M4
ref: 51003B
EUFRGRITNRSDSPUK

TANK-COMP-FUEL,L.P.BL

€ 734.00

51003C

510035033B1
ref: 51003C
FG

TANK-COMP-FUEL,F.RED

€ 734.00

51003D

510035034H8
ref: 51003D
FG

TANK-COMP-FUEL,EBONY

€ 734.00

51003E

510035035M4
ref: 51003E
FG

TANK-COMP-FUEL,L.P.BL

€ 734.00

51023

510231158BK
ref: 51023

TAP-ASSY,FUEL,BLACK

€ 91.50

51049

510491079
ref: 51049

CAP-TANK,FUEL

€ 106.50

52005

520051089
ref: 52005

GAUGE,FUEL

€ 90.50

92001

920011091
ref: 92001

BOLT,6X20,FUEL TAP

€ 2.50

92001A

920011352
ref: 92001A

BOLT,FLANGED,6X22

€ 2.50

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220C0508
ref: 220A

SCREW-PAN-CROS

€ 1.00

221

221B0418
ref: 221

SCREW-CSK-CROS

€ 2.00

670

670B1504
ref: 670

O RING,4MM

€ 2.50

702

702A07380
ref: 702

TUBE-RUBBER

€ 9.50

92001B

920011705
ref: 92001B

BOLT,FUEL GAGE

€ 2.50

92002

920021996
ref: 92002

BOLT

€ 2.50

92022

92022044
ref: 92022

WASHER,10.5X26X2.3

€ 2.50

92022A

92022183
ref: 92022A

WASHER,6.2X11X1.5

€ 2.50

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92037

92037010
ref: 92037

CLAMP-FUEL PIPE

€ 2.50

92037A

92037147
ref: 92037A

CLAMP,CHAIN OILER

€ 4.50

92037B

920371712
ref: 92037B

CLAMP

€ 3.00

92055

920551085
ref: 92055

'O' RING,FUEL TAP LEV

€ 3.00

92059

920591890
ref: 92059

TUBE,5X9X470

€ 4.50

92059A

920591958
ref: 92059A

TUBE

€ 7.50

92075

92075125
ref: 92075

DAMPER RUBBER-FL TANK

€ 4.00

92075A

92075174
ref: 92075A

DAMPER,MALE

€ 3.00

92075B

92075175
ref: 92075B

DAMPER,FEMALE

€ 2.50

92075C

920751932
ref: 92075C

DAMPER,FUEL TANK,CNT

€ 4.50

92077

920771089BK
ref: 92077

KNOB,FUEL TAP,BLACK

€ 19.00

92081

920811240
ref: 92081

SPRING,DIAPHRAGM VLV

€ 2.50

92140

921401051
ref: 92140

BALL,STAINLESS,5/32

€ 3.00

92144

921441212
ref: 92144

SPRING,FUEL TAP KNOB

€ 2.50

all assemblies
