GEAR CHANGE MECHANISM

ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST

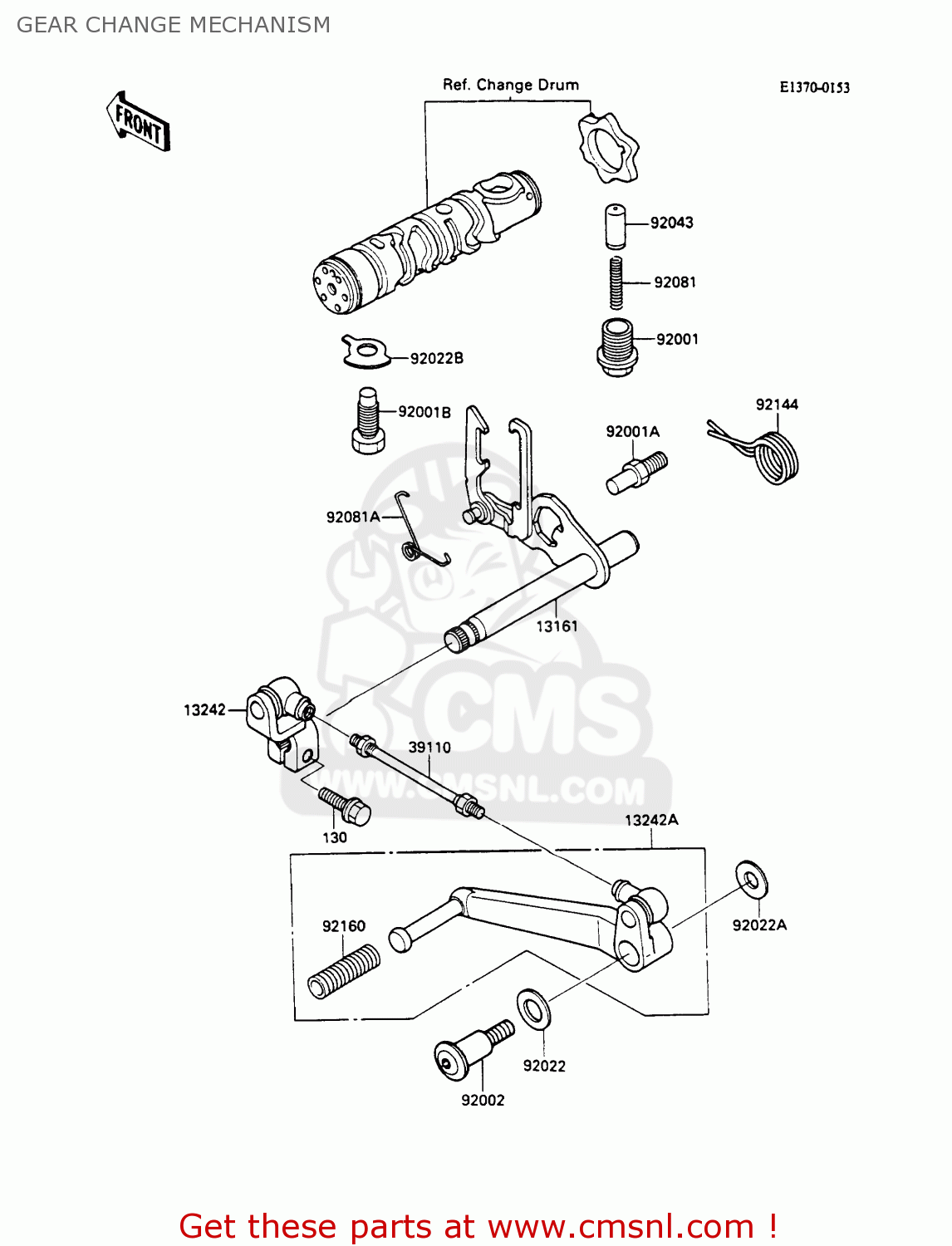

Gear change mechanism diagram ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

13161

13161042
ref: 13161

LEVER-COMP-CHANGE SHA

€ 102.50

13242

132421190
ref: 13242

LEVER-ASSY-CHANGE,BOS

€ 21.00

13242A

132421191
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 42.00

39110

391101010
ref: 39110

ROD-ASSY-TIE,CHANGE L

€ 9.00

92001

920011037
ref: 92001

BOLT,NEUTAL POSITION

€ 9.50

92001A

920011455
ref: 92001A

BOLT

€ 3.00

92001B

92001174
ref: 92001B

BOLT, HEX HEAD, 10X26

€ 4.50

92002

920021926
ref: 92002

BOLT,CHANGE PEDAL

€ 10.50

92022

92022072
ref: 92022

WASHER,12.5X22X1.2

€ 2.50

92022A

920221561
ref: 92022A

WASHER,8.5X20X1.6

€ 2.50

92022B

92024074
ref: 92022B

WASHER,LOCK,10MM

€ 2.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92081

92081112
ref: 92081

SPRING

€ 4.00

92081A

92083018
ref: 92081A

SPRING-KICK PAWL

€ 6.00

92144

921441074
ref: 92144

SPRING,CHANGE PEDAL R

€ 6.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
