FRAME FITTINGS

ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST

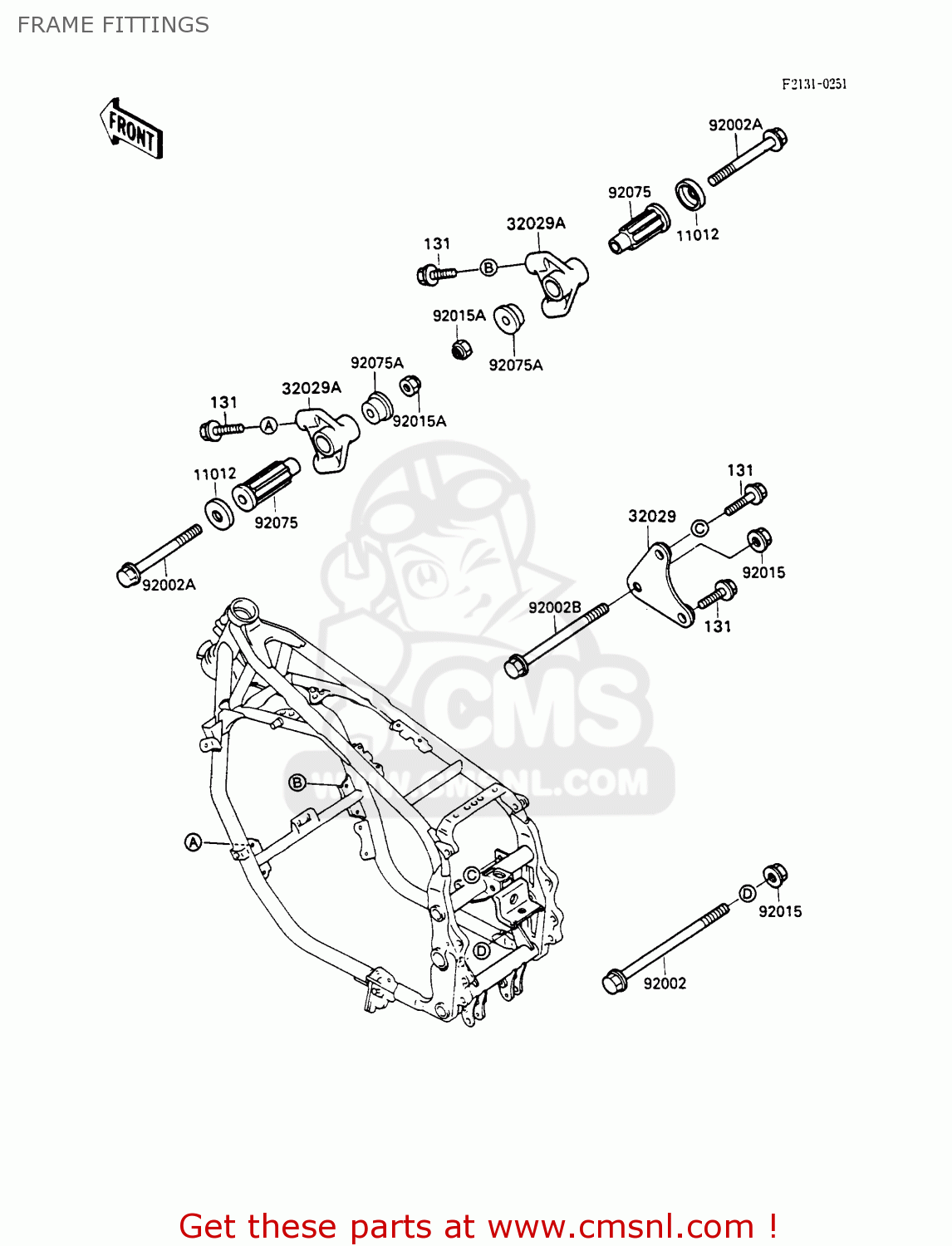

Frame fittings diagram ZX600C2 GPX600R 1989 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

131

131J0820
ref: 131

BOLT-FLANGED,8X20

€ 0.50

11012

110121228
ref: 11012

CAP,ENGINE BRACKET

€ 4.50

32029

320291541
ref: 32029

BRACKET-ENGINE,RR,UPP

€ 8.00

32029A

320291698
ref: 32029A

BRACKET-ENGINE,FR

€ 24.50

92002

920021337
ref: 92002

BOLT,10X183

€ 11.00

92002A

920021491
ref: 92002A

BOLT,FLANGED,10X105

€ 8.00

92002B

920021492
ref: 92002B

BOLT,FLANGED,10X138

€ 9.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151429
ref: 92015A

NUT,10MM

€ 4.50

92075

920751377
ref: 92075

DAMPER,ENGINE BRACKET

€ 19.50

92075A

920751462
ref: 92075A

DAMPER,ENGINE BRACKET

€ 11.00
