REAR MASTER CYLINDER

ZX550A6 GPZ550 1989 FG

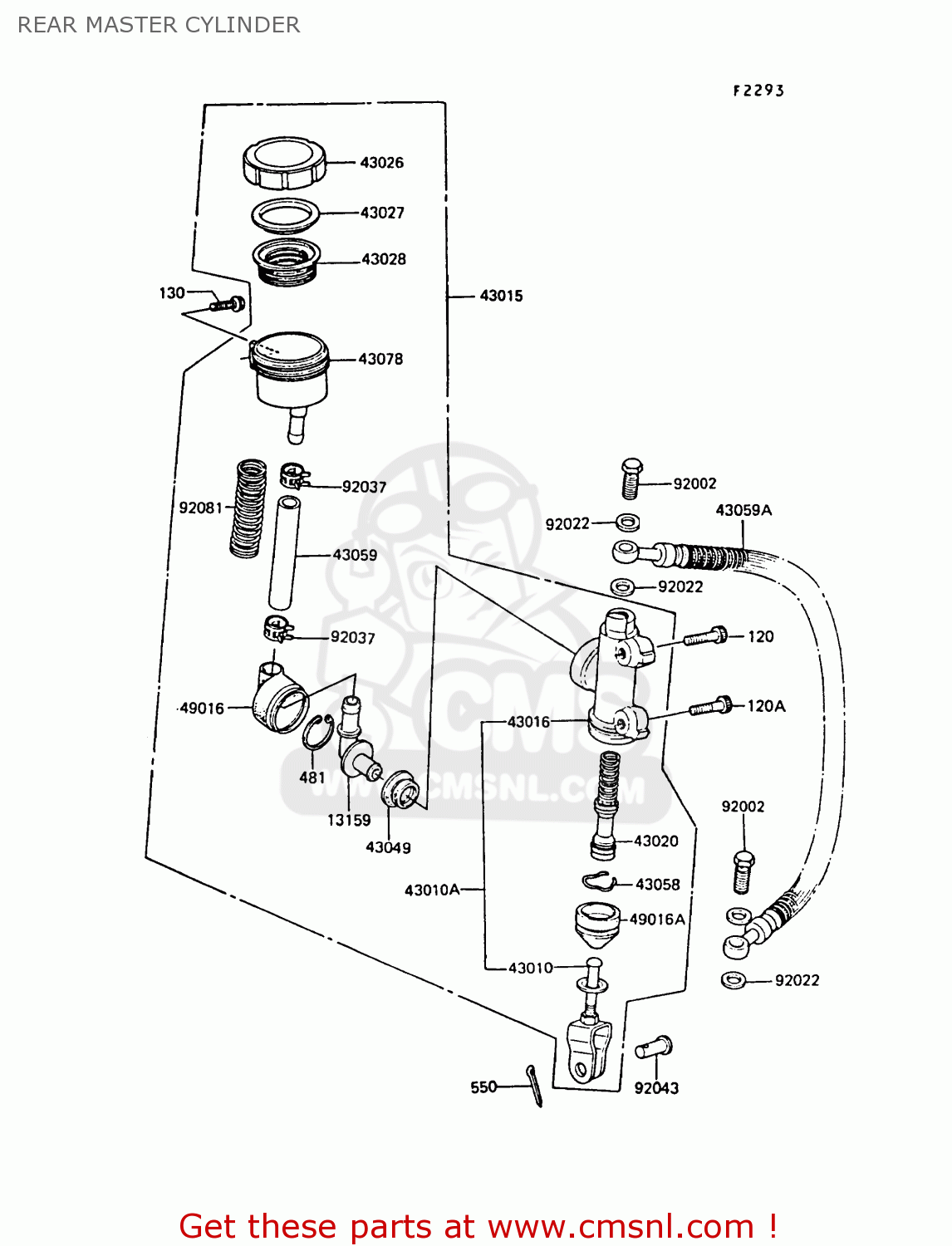

Rear master cylinder diagram ZX550A6 GPZ550 1989 FG

REAR MASTER CYLINDER ZX550A6 GPZ550 1989 FG
REAR MASTER CYLINDER ZX550A6 GPZ550 1989 FG
REAR MASTER CYLINDER ZX550A6 GPZ550 1989 FG
prices are in EUR
ref
part #
description
quantity
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
120S0830
€ 3.00
120A
120S0835
ref: 120A
BOLT-SOCKET,8X35,BLAC
120S0835
€ 3.00
130
130B0620
ref: 130
BOLT,HEX HEAD,6X20
130B0620
€ 2.50
481
481J2500
ref: 481
CIRCLIP-TYPE-C,25MM
481J2500
€ 3.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591009
ref: 13159
CONNECTOR
131591009
€ 10.00
43010
430101051
ref: 43010
ROD-ASSY-BRAKE,RR
430101051
€ 55.00
43010A
430105006
ref: 43010A
ROD-ASSY-BRAKE,RR
€ 163.00
43015
430151138
ref: 43015
CYLINDER-ASSY-MASTER
€ 386.50
43016
430161101
ref: 43016
CYLINDER-MASTER,RR
430161101
€ 108.00
43020
430201036
ref: 43020
PISTON-COMP-BRAKE
€ 54.00
43026
430261010
ref: 43026
CAP,OIL CUP
430261010
€ 22.50
43027
430271005
ref: 43027
PLATE-DIAPHRAGM
430271005
€ 4.50
43028
430281016
ref: 43028
DIAPHRAGM
430281016
€ 15.00
43049
430491008
ref: 43049
PACKING (NAS)
430491008
€ 9.00
43058
43058004
ref: 43058
RING,ROD STOPPER
43058004
€ 4.50
43059
430591166
ref: 43059
HOSE-BRAKE,L=290
€ 66.50
43059A
430591500
ref: 43059A
HOSE-BRAKE,RR
€ 66.50
43078
430781009
ref: 43078
RESERVOIR
430781009
€ 20.50
49016
490161034
ref: 49016
COVER-SEAL,MASTER CYL
490161034
€ 12.50
49016A
490161048
ref: 49016A
COVER-SEAL,BRAKE PIST
490161048
€ 9.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92037
920371391
ref: 92037
CLAMP,BRAKE HOSE
920371391
€ 6.50
92043
920431013
ref: 92043
PIN
920431013
€ 6.50
92081
920811335
ref: 92081
SPRING,HOSE PROTECTER
920811335
€ 9.50
