Genuine ZX Kawasaki Parts delivered quickly!
home
CAMSHAFT(S)/TENSIONER
ZX550A6 GPZ550 1989 FG

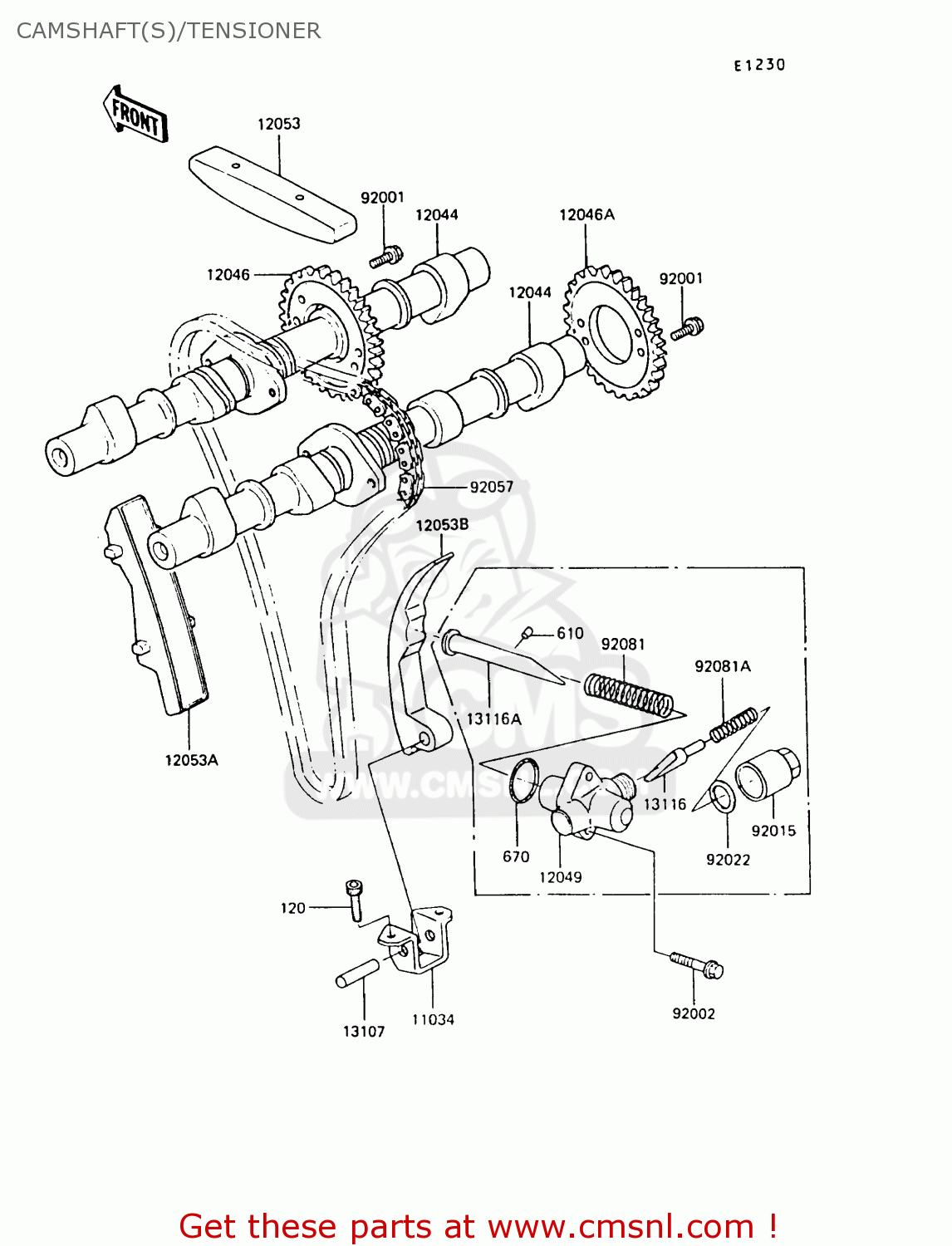

Camshaft(s)/tensioner diagram ZX550A6 GPZ550 1989 FG
CAMSHAFT(S)/TENSIONER ZX550A6 GPZ550 1989 FG
×
prices are in EUR
ref
part #
description
quantity
120
120P0618
ref: 120
BOLT,ALLEN,6X18
€ 1.00
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B2021
ref: 670
O RING,21MM
€ 3.00
11034
110341240
ref: 11034
BRACKET,CHAIN GUIDE
€ 7.00
12044
120441059
ref: 12044
CAMSHAFT-VALVE
€ 295.00
12046
120461019
ref: 12046
SPROCKET,CAM,42T
€ 62.00
12046A
120461020
ref: 12046A
SPROCKET,INLET,42T
€ 52.00
12049
120491016
ref: 12049
TENSIONER,CAM CHAIN
€ 28.00
12053
120531018
ref: 12053
GUIDE,CAM CHAIN,HEAD
€ 75.50
12053A
120531022
ref: 12053A
GUIDE-CHAIN,CAM,FR
€ 29.50
12053B
120531113
ref: 12053B
GUIDE-CHAIN,CAM,RR
€ 61.00
13107
131071142
ref: 13107
SHAFT,L=24.5
€ 5.50
13116
131161012
ref: 13116
ROD-PUSH,TENSIONER
€ 13.00
13116A
131161020
ref: 13116A
ROD-PUSH,CAM CHAIN
€ 24.00
92001
92003208
ref: 92001
BOLT,SPROCKET FITTING
€ 2.50
92002
920021086
ref: 92002
BOLT,6X25
€ 3.50
92015
920151177
ref: 92015
NUT,CAP,18MM,BLACK
€ 10.50
92022
920221175
ref: 92022
WASHER,18.3X24X1.4
€ 3.00
92057
920571027
ref: 92057
CHAIN,CAM,#75-010X140
€ 32.00
92081
920811075
ref: 92081
SPRING TENSIONER
€ 2.50
92081A
920811302
ref: 92081A
SPRING,TENSIONER
€ 3.50
