IGNITION SYSTEM

ZX550A6 GPZ550 1989 FG

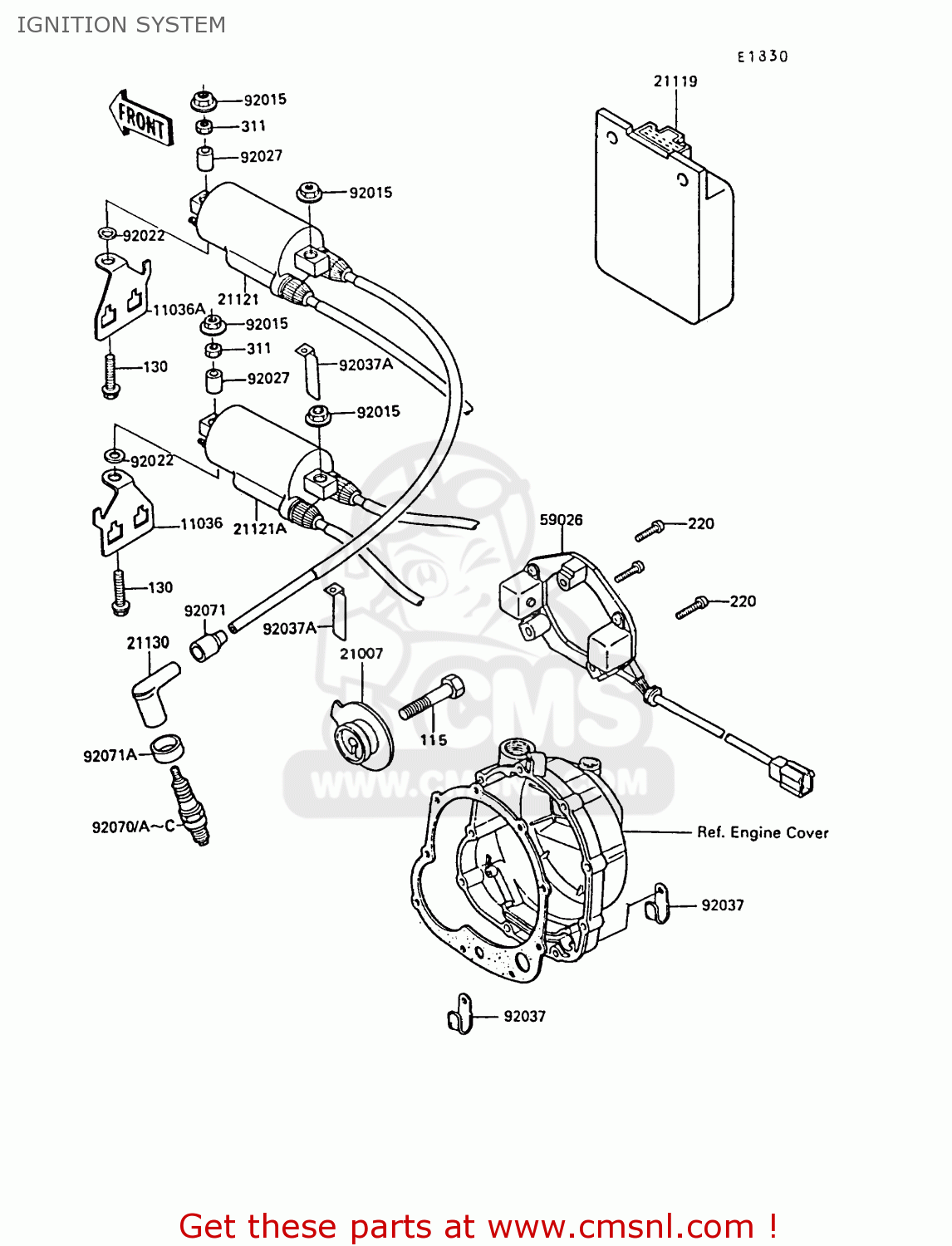

Ignition system diagram ZX550A6 GPZ550 1989 FG

IGNITION SYSTEM ZX550A6 GPZ550 1989 FG
IGNITION SYSTEM ZX550A6 GPZ550 1989 FG
IGNITION SYSTEM ZX550A6 GPZ550 1989 FG
prices are in EUR
ref
part #
description
quantity
115
115G0845
ref: 115
BOLT-SMALL-UPSET
115G0845
€ 3.50
130
130B0640
ref: 130
BOLT,FLANGED,6X40
€ 0.50
220
220B0525
ref: 220
SCREW-PAN-CROS,5X25
220B0525
€ 2.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
11036
110361471
ref: 11036
BRACKET-A,HARNESS,LH
€ 6.00
11036A
110361472
ref: 11036A
BRACKET-A,HARNESS,RH
€ 6.00
21007
210071104
ref: 21007
ROTOR,PULSING COIL
210071104
€ 16.00
21119
211191113
ref: 21119
IGNITER
211191113
€ 610.00
21121
211211108
ref: 21121
COIL-IGNITION,#1&#4
211211108
€ 114.00
21121A
211211109
ref: 21121A
COIL-IGNITION,#2&#3
211211109
€ 114.00
21130
211301003
ref: 21130
CAP,SPARK PLUG"LD05F"
211301003
€ 20.00
59026
590261026
ref: 59026
COIL-PULSING
590261026
€ 165.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92022
920221588
ref: 92022
WASHER,6.3X10.2X1.6
920221588
€ 2.50
92027
920271453
ref: 92027
COLLAR,6.3X10X14
920271453
€ 3.00
92037
21126008
ref: 92037
CLAMP,WIRING HARNESS
21126008
€ 3.00
92037A
920371316
ref: 92037A
CLAMP
€ 1.50
92070
920701065
ref: 92070
DPR8EA-9 (NGK SPARKPL
920701065
€ 4.00
92070A
920701068
ref: 92070A
DPR9EA-9 (NGK SPARKPL
920701068
€ 4.00
92070B

ref: 92070B
92070C

ref: 92070C
92071
21132005
ref: 92071
GROMMET,SPARK PLUG CP
21132005
€ 2.50
92071A
920711015
ref: 92071A
GROMMET,SPARK PLUG CA
920711015
€ 2.50
